Mitsubishi MELIMP Series User Manual

1. PRE-OPERATION INFORMATION
1-3
1

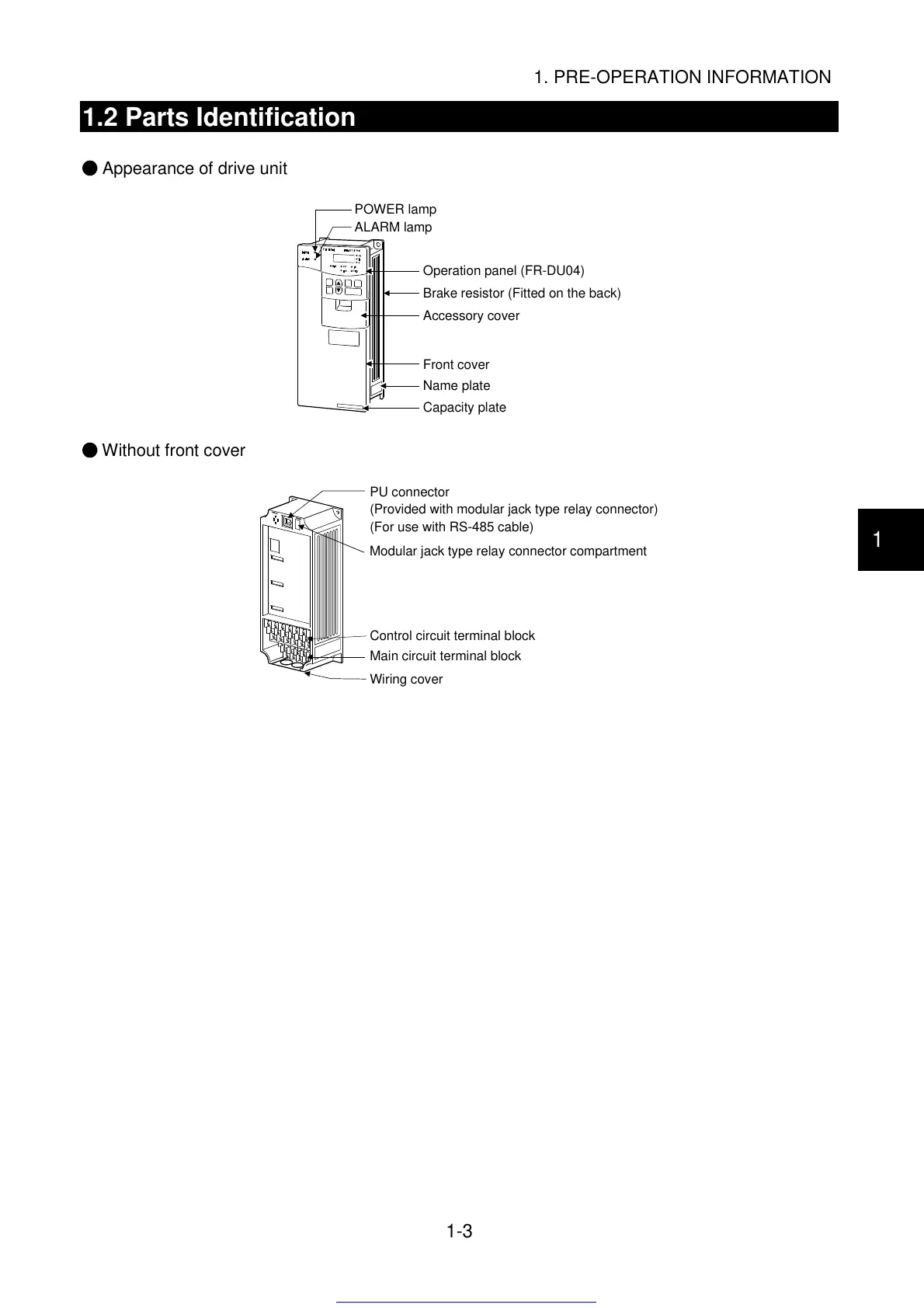

1.2 Parts Identification
Appearance of drive unit
Capacit
y
plate
POWER lamp
ALARM lamp
Operation panel (FR-DU04)
Brake resistor (Fitted on the back)
Accessory cover
Front cover
Name plate
Without front cover
Wiring cover
PU connector
(Provided with modular jack type relay connector)
(For use with RS-485 cable)
Modular jack type relay connector compartment
Control circuit terminal block
Main circuit terminal block
