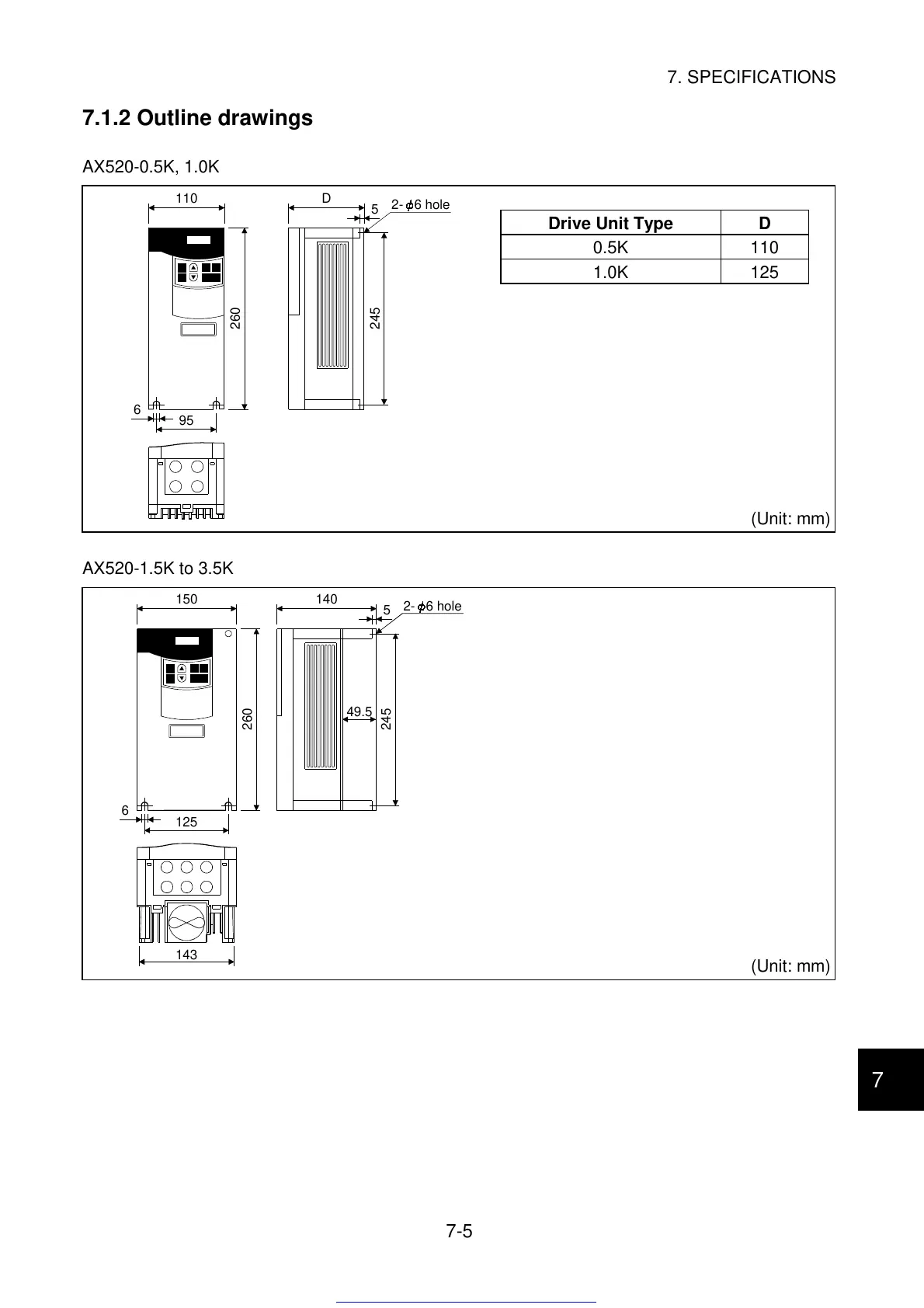

7.1.2 Outline drawings
AX520-0.5K, 1.0K
Drive Unit Type D
0.5K 110
1.0K 125
110
260
D
95
6
5
245
2- 6 hole
(Unit: mm)
AX520-1.5K to 3.5K
150
260
140
143
125
6
5
245
49.5
2- 6 hole
(Unit: mm)
