1. PRE-OPERATION INFORMATION
1-5
1

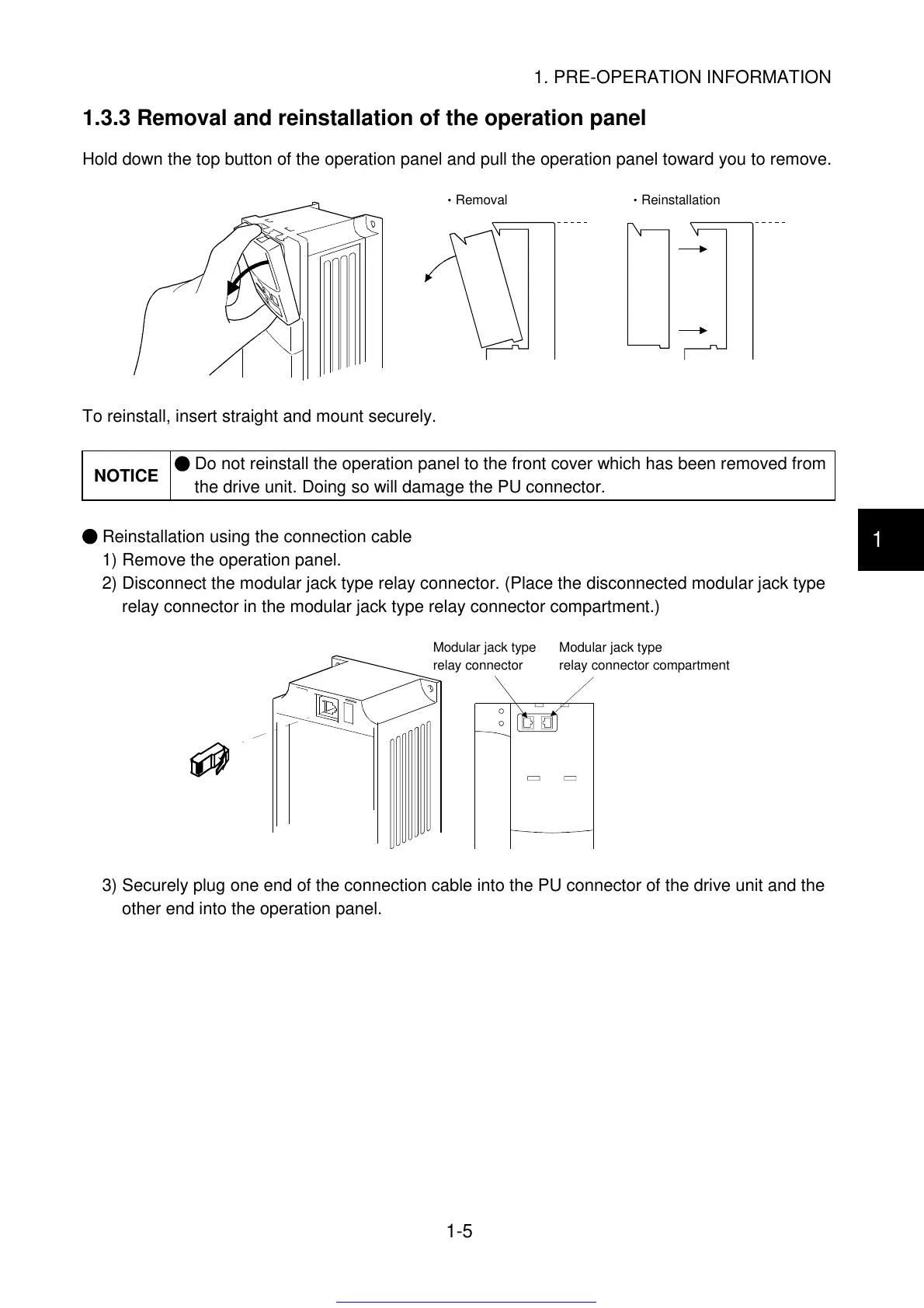

1.3.3 Removal and reinstallation of the operation panel
Hold down the top button of the operation panel and pull the operation panel toward you to remove.
ReinstallationRemoval
To reinstall, insert straight and mount securely.
NOTICE
Do not reinstall the operation panel to the front cover which has been removed from
the drive unit. Doing so will damage the PU connector.
Reinstallation using the connection cable
1) Remove the operation panel.
2) Disconnect the modular jack type relay connector. (Place the disconnected modular jack type
relay connector in the modular jack type relay connector compartment.)
Modular jack type
relay connector compartmen
t
Modular jack type
relay connector
3) Securely plug one end of the connection cable into the PU connector of the drive unit and the
other end into the operation panel.
