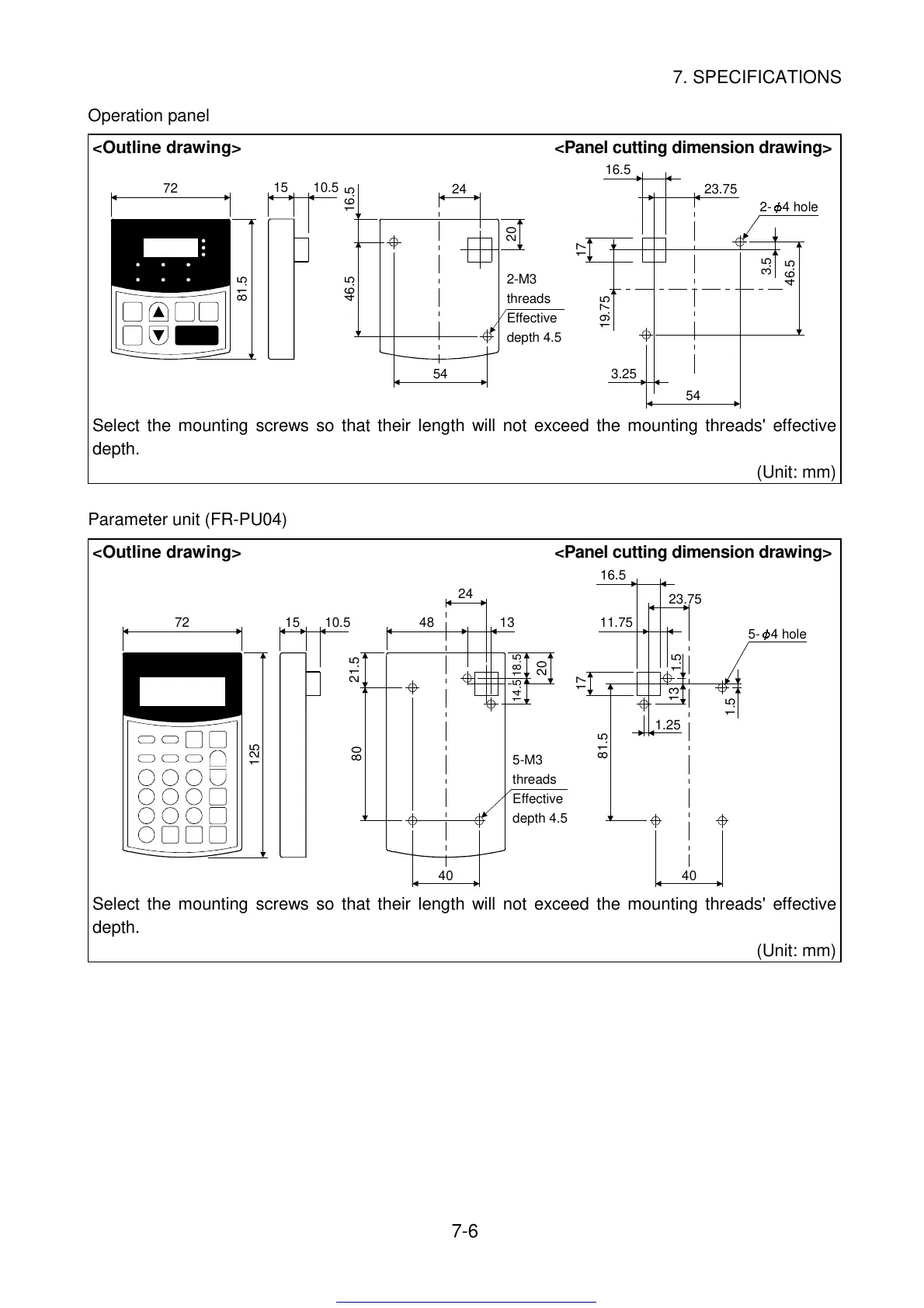

7. SPECIFICATIONS
7-6
Operation panel
<Outline drawing> <Panel cutting dimension drawing>
19.75
3.25
3.5
16.5
23.75
46.5
17
54
81.5
72
15 10.5
20
54
16.546.5
24
2-M3
threads
Effective
depth 4.5
2- 4 hole
Select the mounting screws so that their length will not exceed the mounting threads' effective
depth.
(Unit: mm)
Parameter unit (FR-PU04)
<Outline drawing> <Panel cutting dimension drawing>
40
23.75
11.75
81.5
1.25
1.5
13
17
16.5
1.5
125
72 15 10.5
18.5
40
80
48
24
13
20
21.5
14.5
5-M3
threads
Effective
depth 4.5
5- 4 hole
Select the mounting screws so that their length will not exceed the mounting threads' effective
depth.
(Unit: mm)
