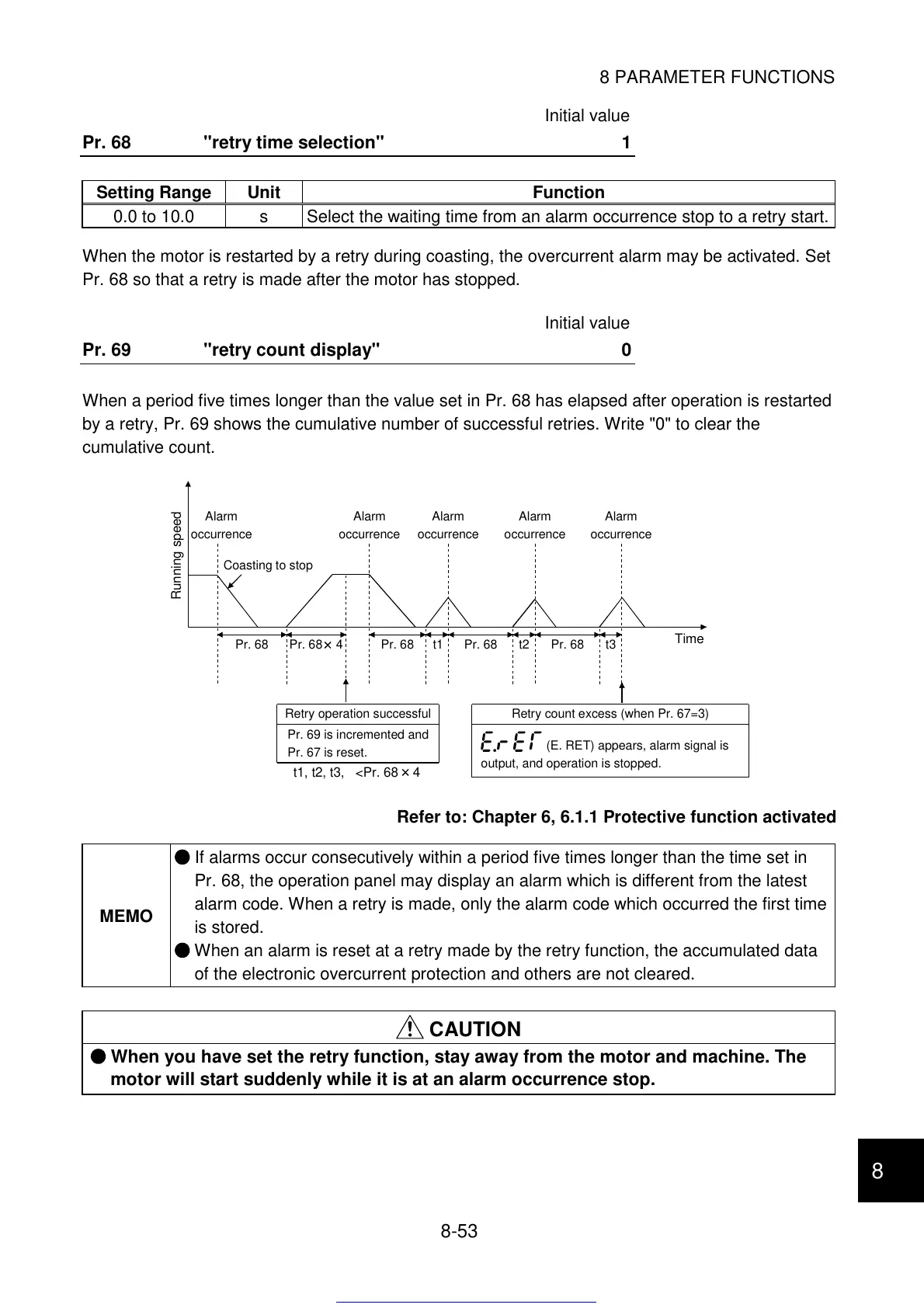

8 PARAMETER FUNCTIONS
8-53
8
Initial value
Pr. 68 "retry time selection" 1
Setting Range Unit Function
0.0 to 10.0 s Select the waiting time from an alarm occurrence stop to a retry start.
When the motor is restarted by a retry during coasting, the overcurrent alarm may be activated. Set
Pr. 68 so that a retry is made after the motor has stopped.
Initial value
Pr. 69 "retry count display" 0
When a period five times longer than the value set in Pr. 68 has elapsed after operation is restarted
by a retry, Pr. 69 shows the cumulative number of successful retries. Write "0" to clear the
cumulative count.
Pr. 68 Pr. 68 4 Pr. 68 Pr. 68 Pr. 68t1 t2 t3
Time
t1, t2, t3, <Pr. 68 4
Running speed
Alarm
occurrence
Coasting to stop
Alarm
occurrence
Alarm
occurrence
Alarm
occurrence
Alarm
occurrence
Pr. 69 is incremented and
Pr. 67 is reset.
Retry operation successful
(E. RET) appears, alarm signal is
output, and operation is stopped.
Retry count excess (when Pr. 67=3)
Refer to: Chapter 6, 6.1.1 Protective function activated
MEMO
If alarms occur consecutively within a period five times longer than the time set in
Pr. 68, the operation panel may display an alarm which is different from the latest
alarm code. When a retry is made, only the alarm code which occurred the first time
is stored.
When an alarm is reset at a retry made by the retry function, the accumulated data
of the electronic overcurrent protection and others are not cleared.
CAUTION
When you have set the retry function, stay away from the motor and machine. The
motor will start suddenly while it is at an alarm occurrence stop.
