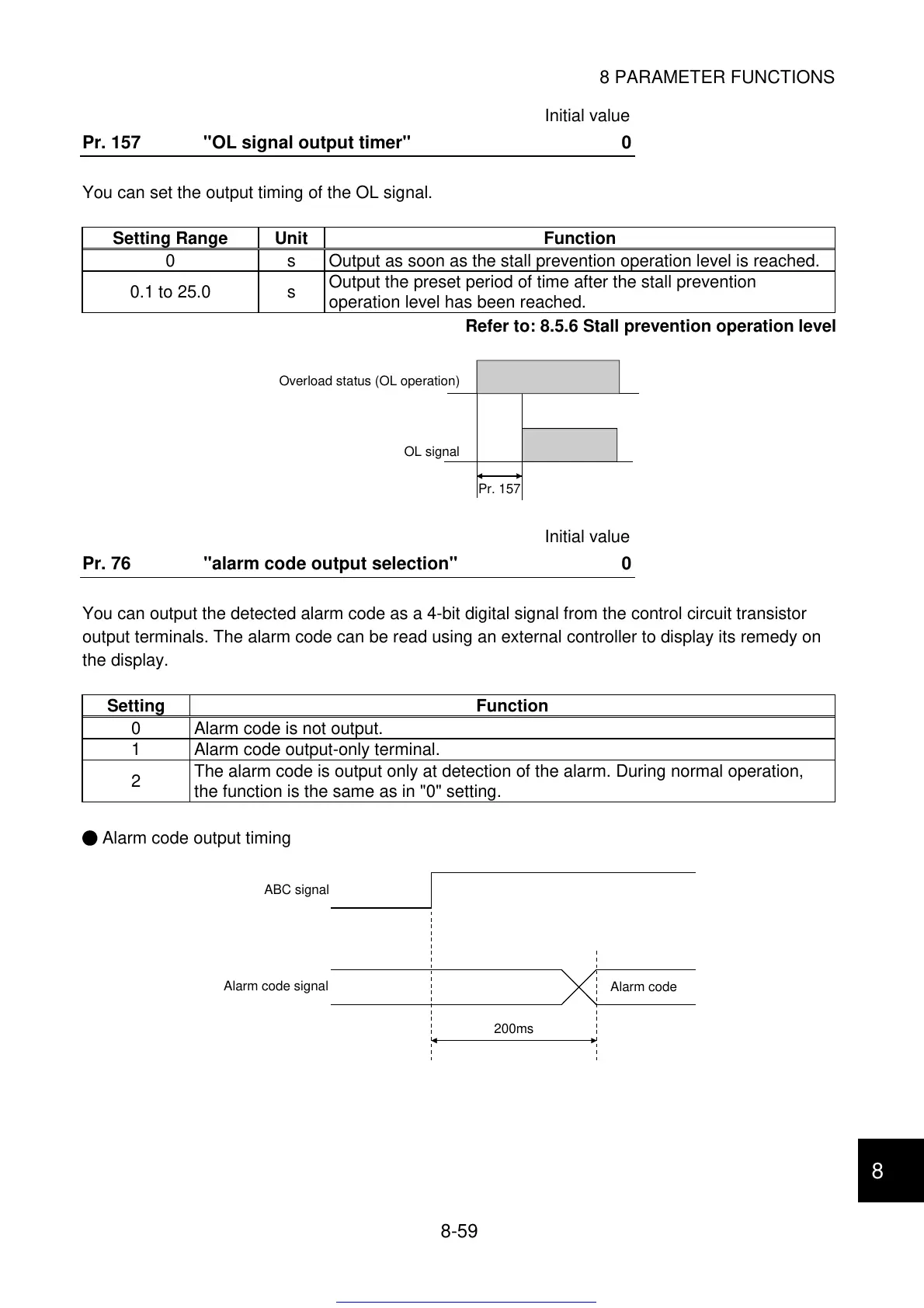

8 PARAMETER FUNCTIONS
8-59
8
Initial value
Pr. 157 "OL signal output timer" 0
You can set the output timing of the OL signal.
Setting Range Unit Function
0 s Output as soon as the stall prevention operation level is reached.
0.1 to 25.0 s
Output the preset period of time after the stall prevention
operation level has been reached.
Refer to: 8.5.6 Stall prevention operation level
Pr. 157
OL signal
verload status (OL operation)
Initial value
Pr. 76 "alarm code output selection" 0
You can output the detected alarm code as a 4-bit digital signal from the control circuit transistor
output terminals. The alarm code can be read using an external controller to display its remedy on
the display.
Setting Function
0 Alarm code is not output.
1 Alarm code output-only terminal.
2
The alarm code is output only at detection of the alarm. During normal operation,
the function is the same as in "0" setting.
Alarm code output timing
200ms
Alarm code
ABC signal
Alarm code signal
