Mitsubishi MELIMP Series User Manual

8 PARAMETER FUNCTIONS
8-70

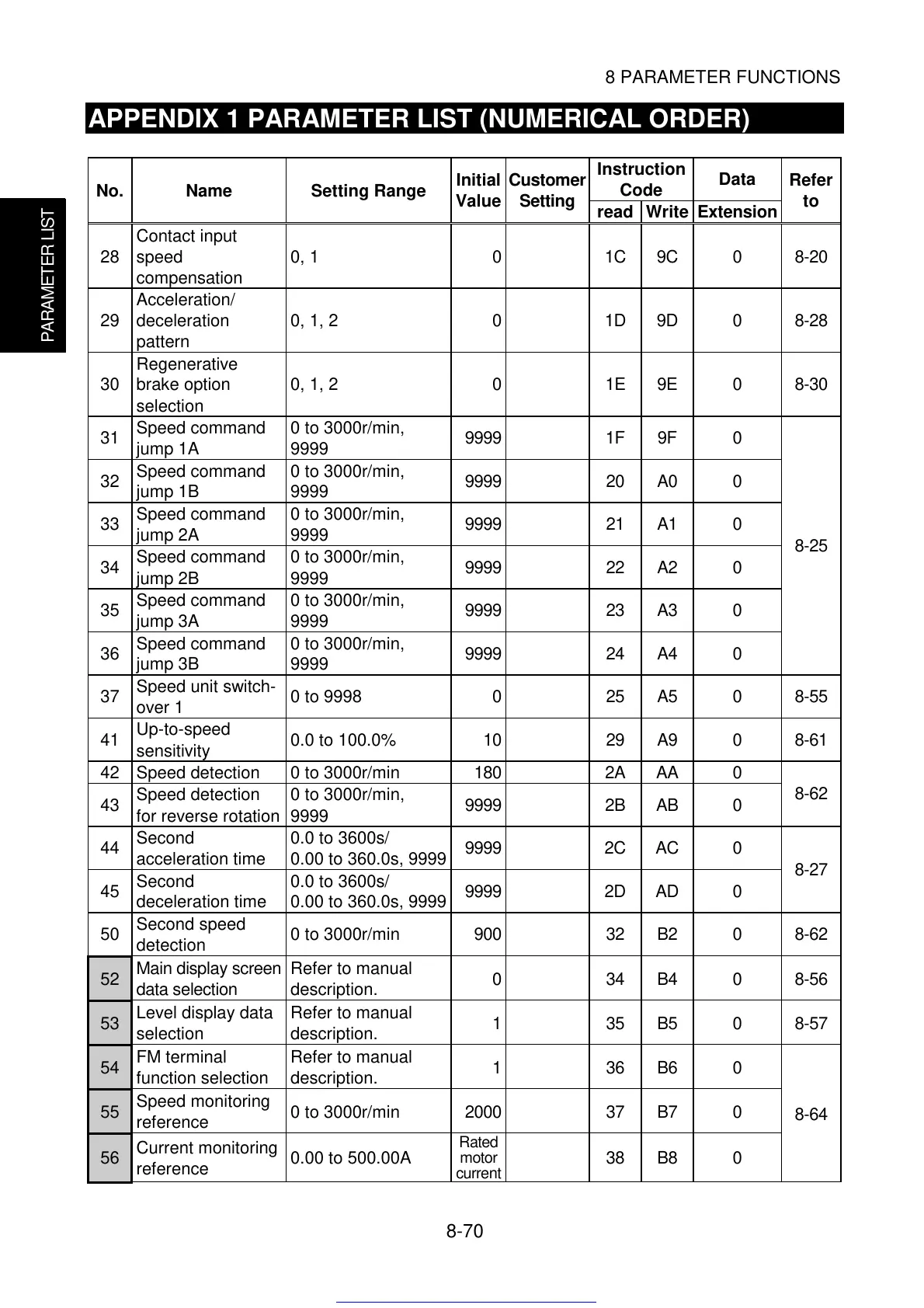

APPENDIX 1 PARAMETER LIST (NUMERICAL ORDER)
Instruction
Code
Data
No. Name Setting Range
Initial
Value
Customer
Setting
read Write Extension
Refer
to
28
Contact input
speed
compensation
0, 1 0 1C 9C 0 8-20
29
Acceleration/
deceleration
pattern
0, 1, 2 0 1D 9D 0 8-28
30
Regenerative
brake option
selection
0, 1, 2 0 1E 9E 0 8-30
31
Speed command
jump 1A
0 to 3000r/min,
9999
9999 1F 9F 0
32
Speed command
jump 1B
0 to 3000r/min,
9999
9999 20 A0 0
33
Speed command
jump 2A
0 to 3000r/min,
9999
9999 21 A1 0
34
Speed command
jump 2B
0 to 3000r/min,
9999
9999 22 A2 0
35
Speed command
jump 3A
0 to 3000r/min,
9999
9999 23 A3 0
36
Speed command
jump 3B
0 to 3000r/min,
9999
9999 24 A4 0
8-25
37
Speed unit switch-
over 1
0 to 9998 0 25 A5 0 8-55
41
Up-to-speed
sensitivity
0.0 to 100.0% 10 29 A9 0 8-61
42 Speed detection 0 to 3000r/min 180 2A AA 0
43
Speed detection
for reverse rotation
0 to 3000r/min,
9999
9999 2B AB 0
8-62
44
Second
acceleration time
0.0 to 3600s/
0.00 to 360.0s, 9999
9999 2C AC 0
45
Second
deceleration time
0.0 to 3600s/
0.00 to 360.0s, 9999
9999 2D AD 0
8-27
50
Second speed
detection
0 to 3000r/min 900 32 B2 0 8-62
52
Main display screen
data selection
Refer to manual
description.
0 34 B4 0 8-56
53
Level display data
selection
Refer to manual
description.
1 35 B5 0 8-57
54
FM terminal
function selection
Refer to manual
description.
136B60
55
Speed monitoring
reference
0 to 3000r/min 2000 37 B7 0
56
Current monitoring
reference
0.00 to 500.00A
Rated
motor
current
38 B8 0
8-64
PARAMETER LIST
