Mitsubishi MELIMP Series

3. WIRING
3-10

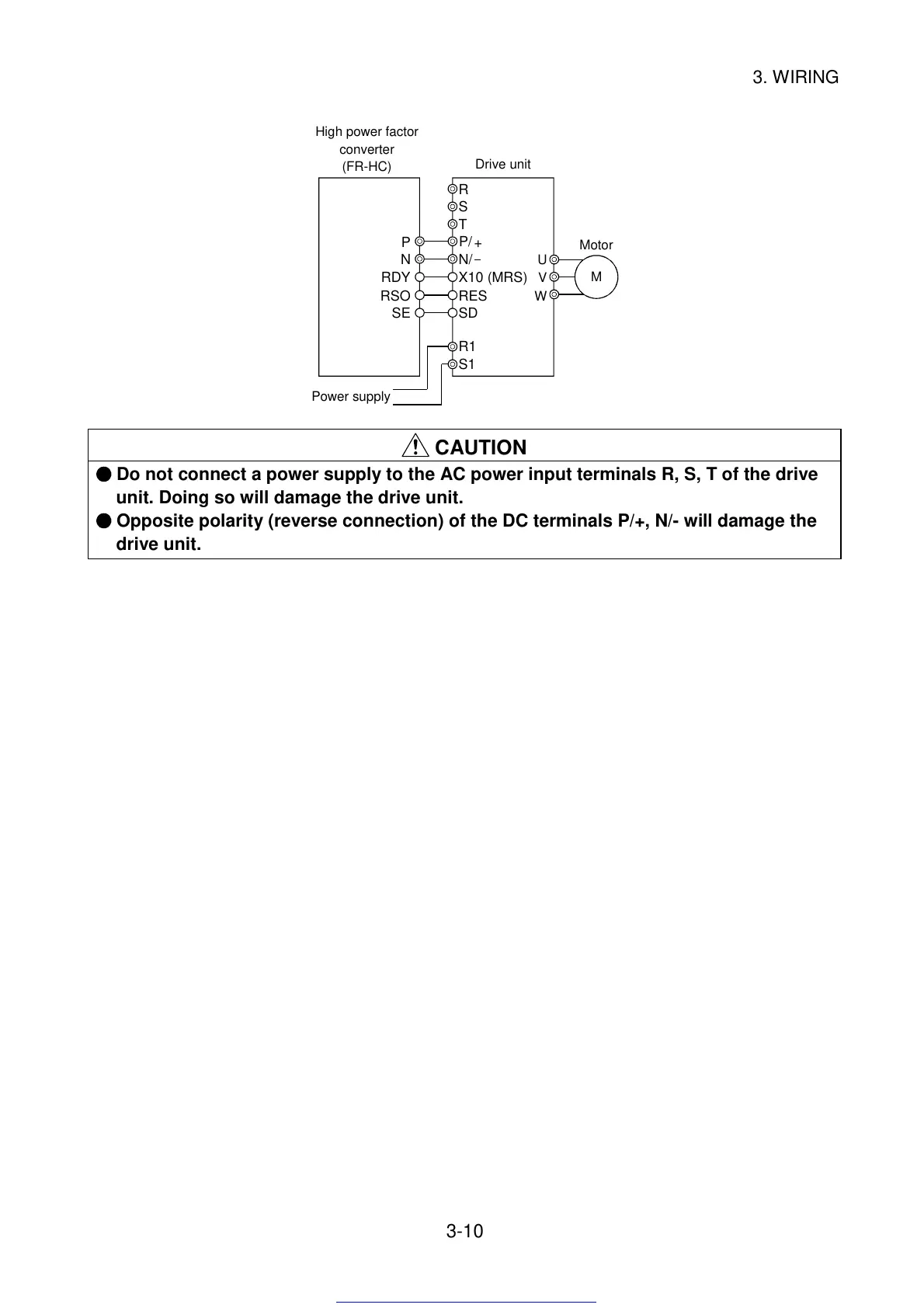

X10 (MRS)
R1
S1
RES
SD
T
S
R
M
RDY
N
P
RSO
SE
V
U
W
P/
+
N/
-
Motor
Power supply
High power factor
converter
(FR-HC)
Drive unit
CAUTION
Do not connect a power supply to the AC power input terminals R, S, T of the drive
unit. Doing so will damage the drive unit.
Opposite polarity (reverse connection) of the DC terminals P/+, N/- will damage the
drive unit.
