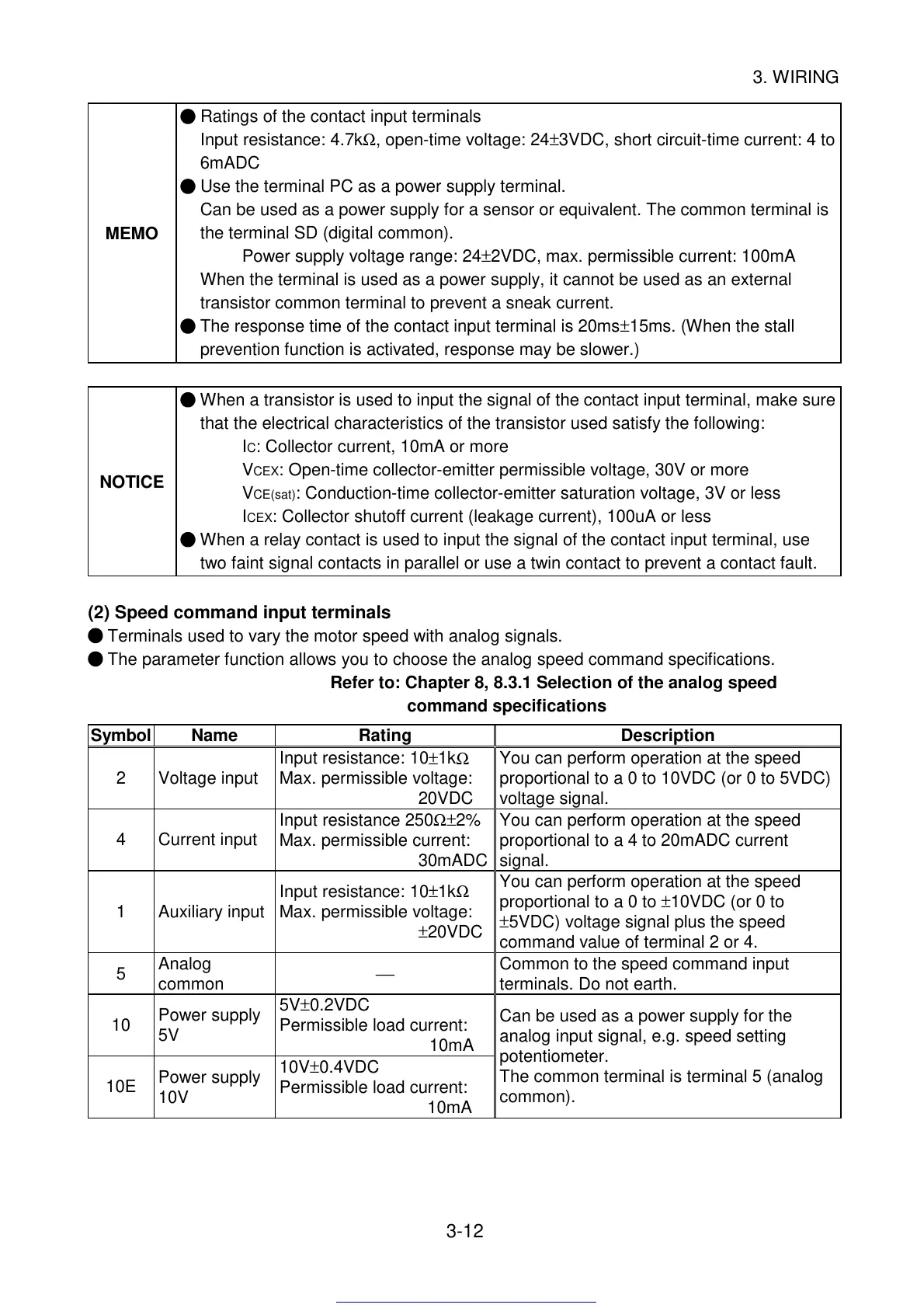

3. WIRING
3-12
MEMO
Ratings of the contact input terminals
Input resistance: 4.7k
Ω
, open-time voltage: 24
±
3VDC, short circuit-time current: 4 to
6mADC
Use the terminal PC as a power supply terminal.
Can be used as a power supply for a sensor or equivalent. The common terminal is
the terminal SD (digital common).
Power supply voltage range: 24
±
2VDC, max. permissible current: 100mA
When the terminal is used as a power supply, it cannot be used as an external
transistor common terminal to prevent a sneak current.
The response time of the contact input terminal is 20ms
±
15ms. (When the stall
prevention function is activated, response may be slower.)
NOTICE
When a transistor is used to input the signal of the contact input terminal, make sure
that the electrical characteristics of the transistor used satisfy the following:
I
C
: Collector current, 10mA or more
V
CEX
: Open-time collector-emitter permissible voltage, 30V or more
V
CE(sat)
: Conduction-time collector-emitter saturation voltage, 3V or less
I
CEX
: Collector shutoff current (leakage current), 100uA or less
When a relay contact is used to input the signal of the contact input terminal, use
two faint signal contacts in parallel or use a twin contact to prevent a contact fault.
(2) Speed command input terminals
Terminals used to vary the motor speed with analog signals.
The parameter function allows you to choose the analog speed command specifications.
Refer to: Chapter 8, 8.3.1 Selection of the analog speed
command specifications
Symbol Name Rating Description
2 Voltage input
Input resistance: 10
±
1k
Ω
Max. permissible voltage:
20VDC
You can perform operation at the speed
proportional to a 0 to 10VDC (or 0 to 5VDC)
voltage signal.
4 Current input
Input resistance 250
Ω±
2%
Max. permissible current:
30mADC
You can perform operation at the speed
proportional to a 4 to 20mADC current
signal.
1 Auxiliary input
Input resistance: 10
±
1k
Ω
Max. permissible voltage:
±
20VDC
You can perform operation at the speed
proportional to a 0 to
±
10VDC (or 0 to
±
5VDC) voltage signal plus the speed
command value of terminal 2 or 4.
5
Analog
common

Common to the speed command input
terminals. Do not earth.
10
Power supply
5V
5V
±
0.2VDC
Permissible load current:
10mA
10E
Power supply
10V
10V
±
0.4VDC
Permissible load current:
10mA
Can be used as a power supply for the
analog input signal, e.g. speed setting
potentiometer.
The common terminal is terminal 5 (analog
common).
