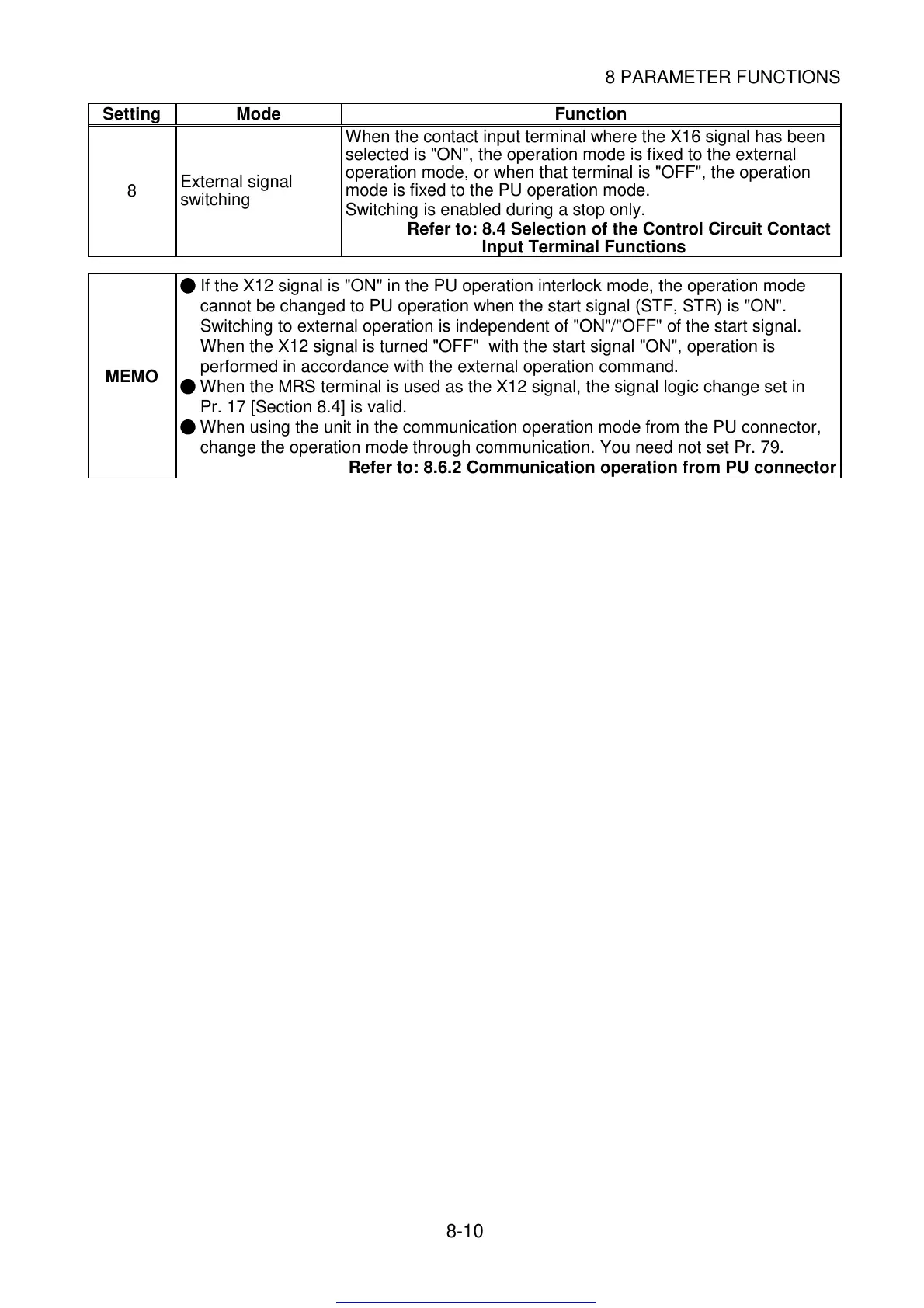

8 PARAMETER FUNCTIONS
8-10
Setting Mode Function
8
External signal
switching
When the contact input terminal where the X16 signal has been
selected is "ON", the operation mode is fixed to the external
operation mode, or when that terminal is "OFF", the operation
mode is fixed to the PU operation mode.
Switching is enabled during a stop only.
Refer to: 8.4 Selection of the Control Circuit Contact
Input Terminal Functions
MEMO
If the X12 signal is "ON" in the PU operation interlock mode, the operation mode
cannot be changed to PU operation when the start signal (STF, STR) is "ON".
Switching to external operation is independent of "ON"/"OFF" of the start signal.
When the X12 signal is turned "OFF" with the start signal "ON", operation is
performed in accordance with the external operation command.
When the MRS terminal is used as the X12 signal, the signal logic change set in
Pr. 17 [Section 8.4] is valid.
When using the unit in the communication operation mode from the PU connector,
change the operation mode through communication. You need not set Pr. 79.
Refer to: 8.6.2 Communication operation from PU connector
