5. PARAMETERS
5 - 15
No./symbol/
name
Setting
digit
Function
Initial
value
[unit]
Control
mode

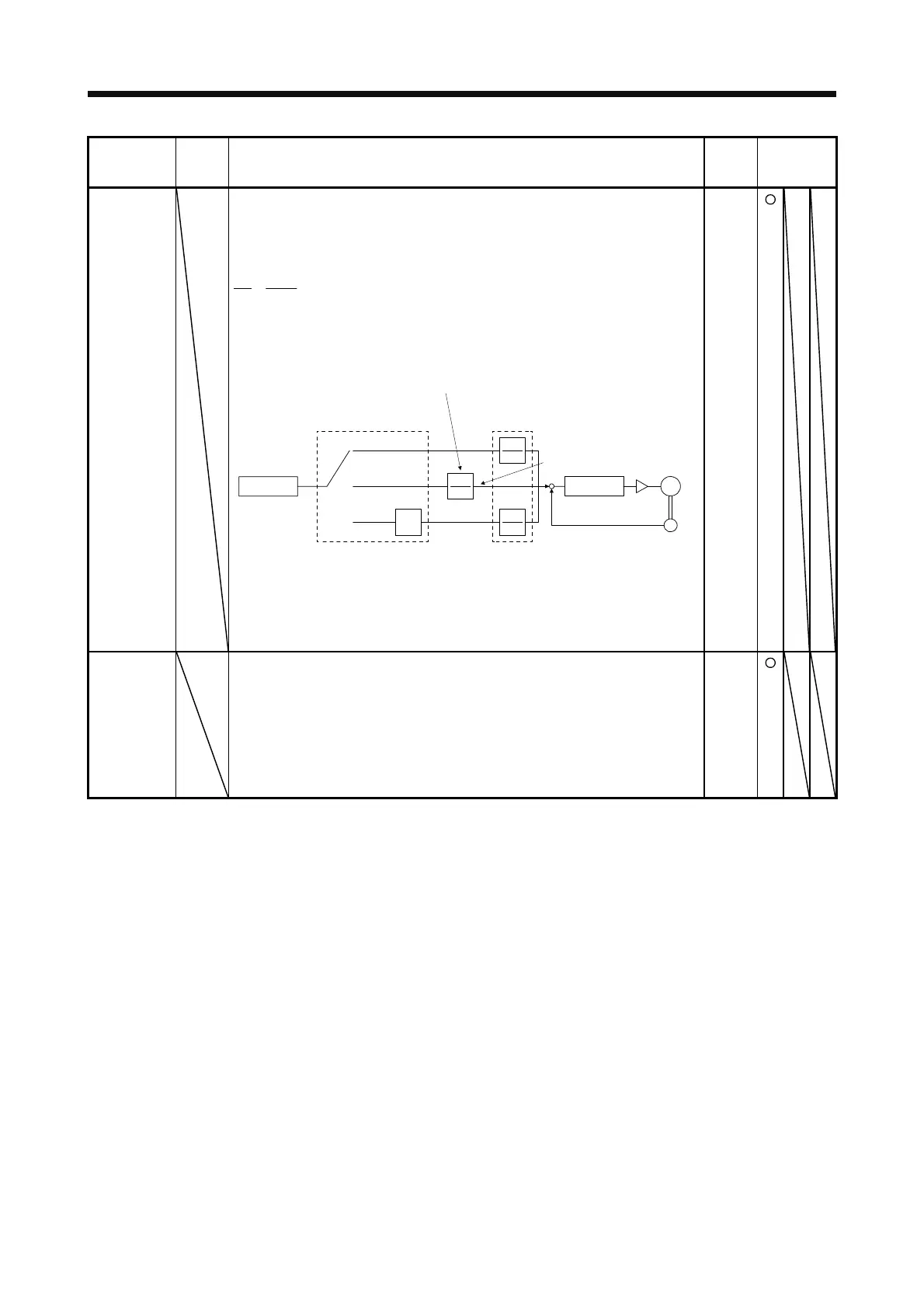

PA06
CMX
Electronic
gear
numerator
(command
pulse
multiplication
numerator)
Set the numerator of the electronic gear.
To enable the parameter, set "Electronic gear selection" to "Electronic gear (0 _ _ _)"
or "J3A electronic gear setting value compatibility mode (2 _ _ _)" in [Pr. PA21].
The following shows a standard of the setting range of the electronic gear.
1
10
<
CMX
CDV
< 4000
If the set value is outside this range, noise may be generated during
acceleration/deceleration or operation may not be performed at the preset speed
and/or acceleration/deceleration time constants.
CDV
FBP
Command
pulse train
Pt
"0" (initial value)
CMX
Deviation
counter
+
-
Electronic gear
([Pr. PA06]•[Pr. PA07])
Number of command input pulses per revolution ([Pr. PA05] "1000" to "1000000")
Servo motor
Encoder
M
X16
"1"
CDV
CMX
[pulse/rev]
"2"
Electronic gear selection
(x _ _ _) ([Pr. PA21])
Pt (servo motor resolution): 4194304 pulses/rev
Always set the electronic gear with servo-off state to prevent unexpected operation
due to improper setting.
Setting range: 1 to 16777215
1
PA07
CDV
Electronic
gear
denominator
(command
pulse
multiplication
denominator)
Set the denominator of the electronic gear.
To enable the parameter, set "Electronic gear selection" to "Electronic gear (0 _ _ _)"
or "J3A electronic gear setting value compatibility mode (2 _ _ _)" in [Pr. PA21].
Setting range: 1 to 16777215
1
