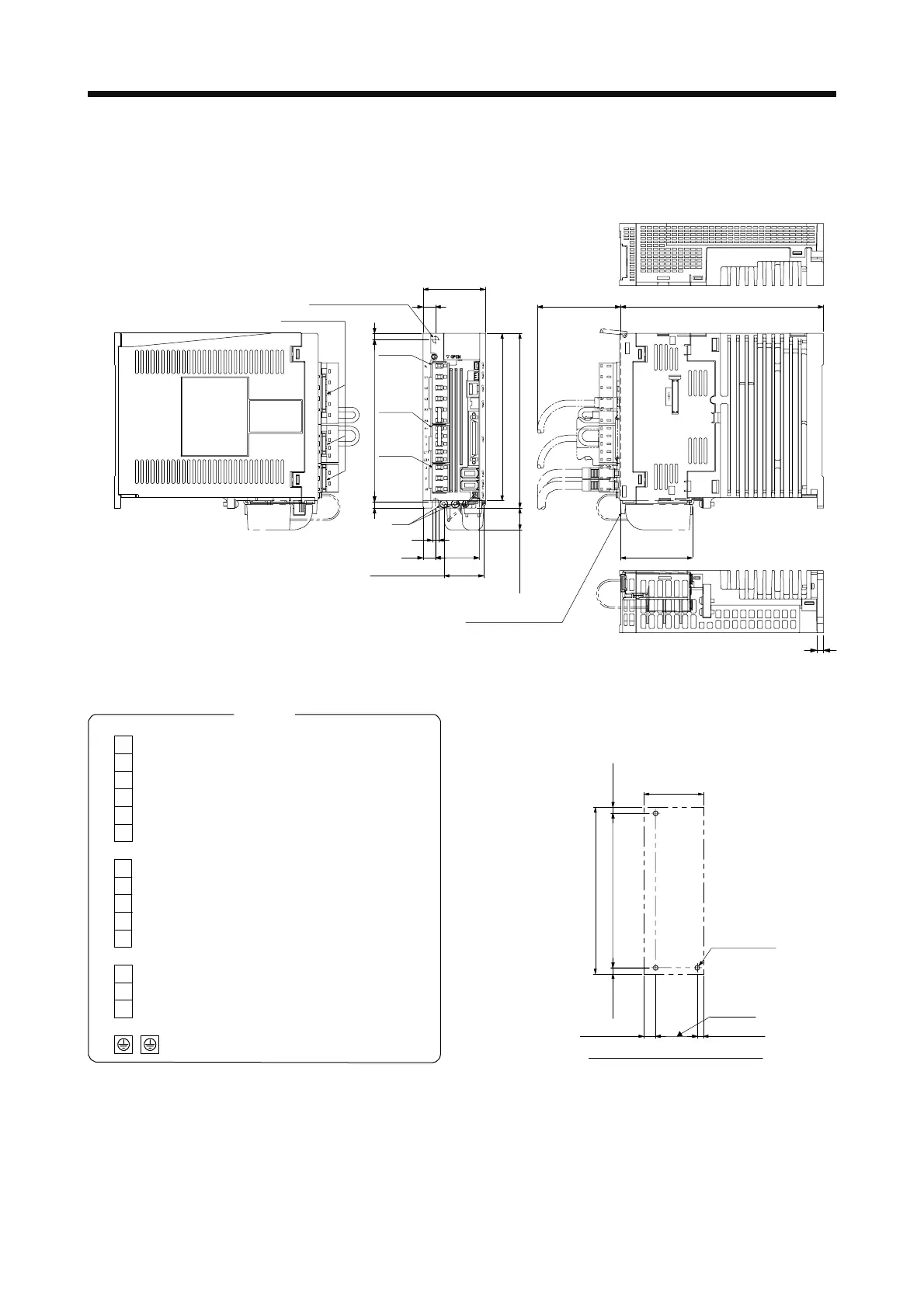

9 OUTLINE DRAWINGS
9 - 11
(2) 400 V class
(a) MR-J4-60A4(-RJ)/MR-J4-100A4(-RJ)
[Unit: mm]
φ6 mounting hole
156
6
42
12
6
60
6
12
Approx. 80
195
6
Approx. 69.3
168
161
CNP2
CNP1
CNP3
PE
With
MR-BAT6V1SET
Approx. 38.5
Approx. 21
Lock knob
Mass: 1.7 [kg]
L2
N-
P3
L11
L21
P4
L3
L1
C
D
P+
PE
Terminal
CNP1
CNP2
V
W
U
CNP3
Screw size: M4
Tightening torque: 1.2 [N•m]
Mounting screw
Screw size: M5
Tightening torque: 3.24 [N•m]
156 ± 0.5
Mounting hole process drawing
42 ± 0.3
Approx. 60
Approx. 6Approx. 12
Approx.
6
Approx.
6
3-M5 screw
Approx. 168
