Mitsubishi MR-J4-100A

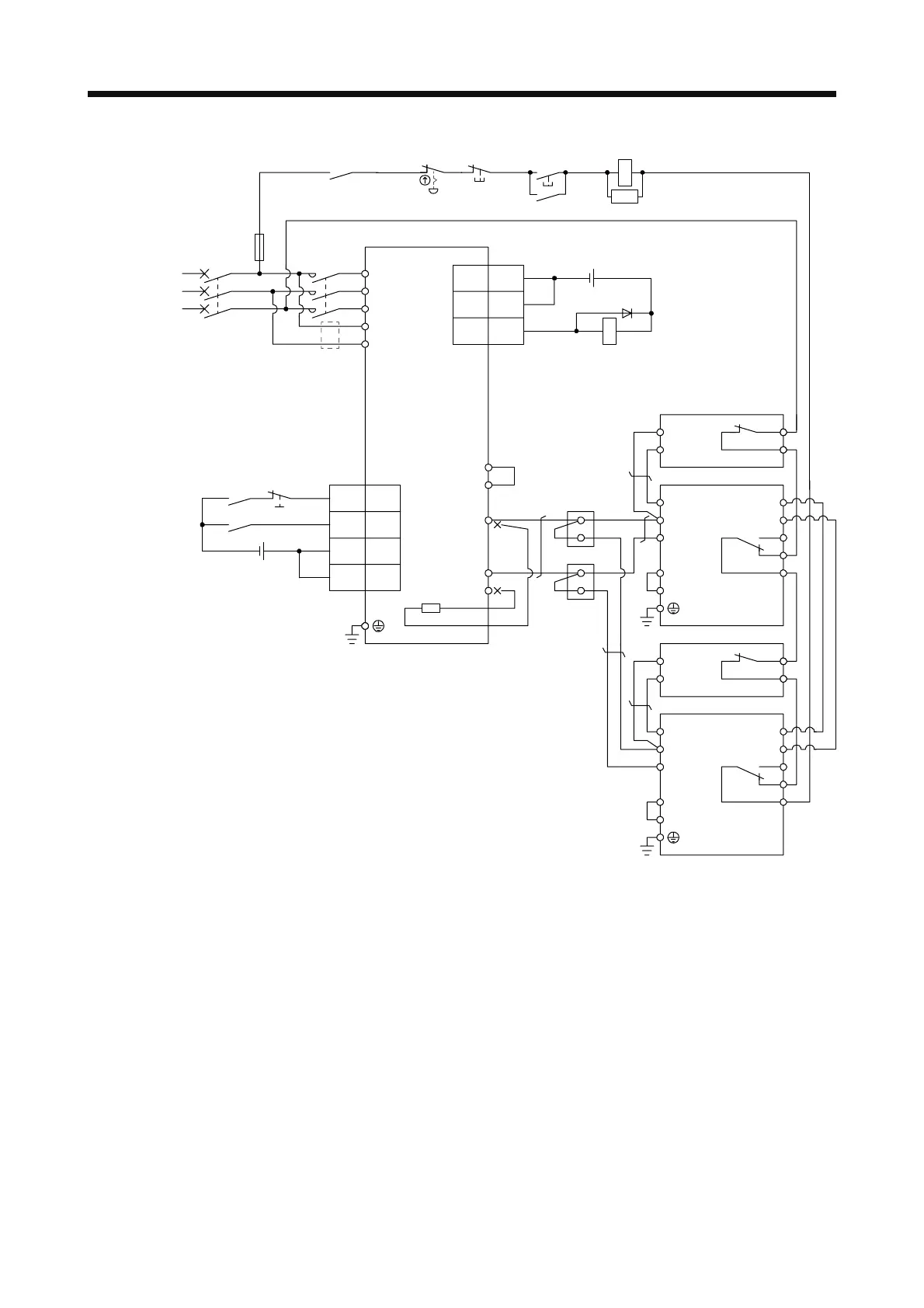

11. OPTIONS AND AUXILIARY EQUIPMENT
11 - 26
P3
P4
N-
C
MC
MCCB
L1
L2
L3
L11
L21
ALM
RA1
MC
MC
SK
P+
N/-
P/+
BUE
SD
PR
B
C
A
SD
MSG
FR-BU2
FR-BR
P
PR
TH2
TH1
N/-
P/+
BUE
SD
PR
B
C
A
SD
MSG
FR-BU2
FR-BR
P
PR
TH2
TH1
48 ALM
EM2 42
46
DICOM
DOCOM
47
DOCOM
15SON
20
DICOM
21
CN1
CN1
RA1
(Note 12)
Main circuit
power supply
(Note 4)
(Note 6)
(Note 8)
(Note 9)
Emergency stop switch
Servo amplifier
(Note 11)
(Note 1)
Power
supply
OFF
ON
(Note 3)
(Note 7)
(Note 2)
(Note 13)
(Note 4)
(Note 6)
(Note 8)
(Note 5)
24 V DC (Note 14)
(Note 10)
Terminal block
(Note 9)
(Note 5)
24 V DC (Note 14)
