INLET MANIFOLD AND FUEL SYSTEM
ENGINE OVERHAUL
11B-16

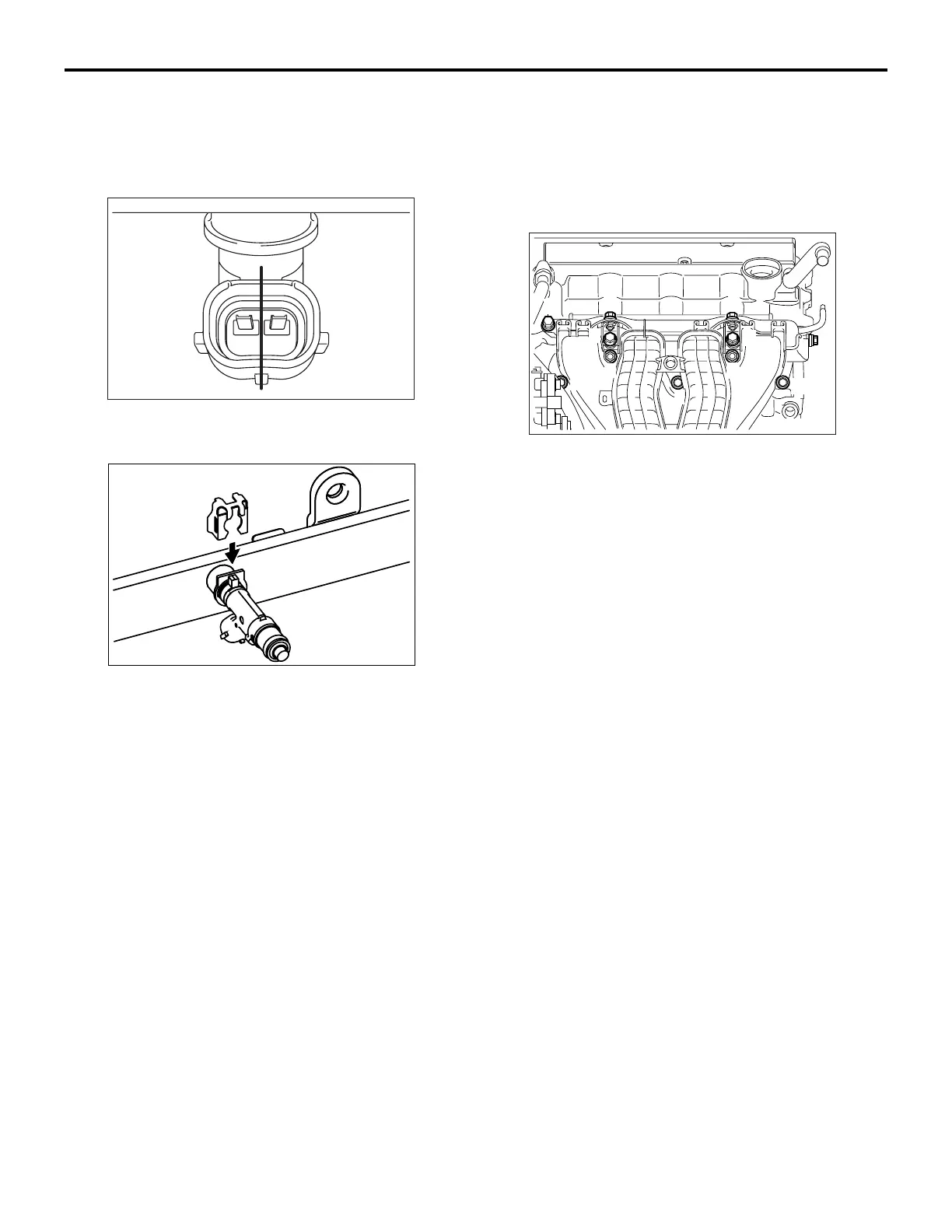

3. Check that the injector rotates smoothly. If it does
not rotate smoothly, the O-ring may be caught.
Remove the injector and check the O-ring for
damage. Then, insert it again into the delivery
pipe and check.
AK502744
4. Make sure that the protrusion of the injector is at
the centre as shown in the illustration.
AK800066
5. Securely assemble the injector to the injector
groove and delivery pipe collar.
>>G<< DELIVERY PIPE ASSEMBLY /
BRACKET / INJECTOR PROTECTOR
REAR INSTALLATION
AK700818AC
10
3
5
7
1
6
4
2
9
8
1
1. Install the delivery pipe assembly, bracket and
injector protector on the cylinder head.
2. Tighten mounting bolts together with temporarily
tightened inlet manifold mounting bolts in the
order shown in the illustration.
3. Tighten the delivery pipe assembly, bracket,
injector protector rear and inlet manifold in the
order shown in the illustration.
Temporarily torque: 3.5 ± 1.5 N⋅m
Specified torque: 20 ± 2 N⋅m
