WATER HOSE AND PIPE
ENGINE OVERHAUL
11B-19
WATER HOSE AND PIPE

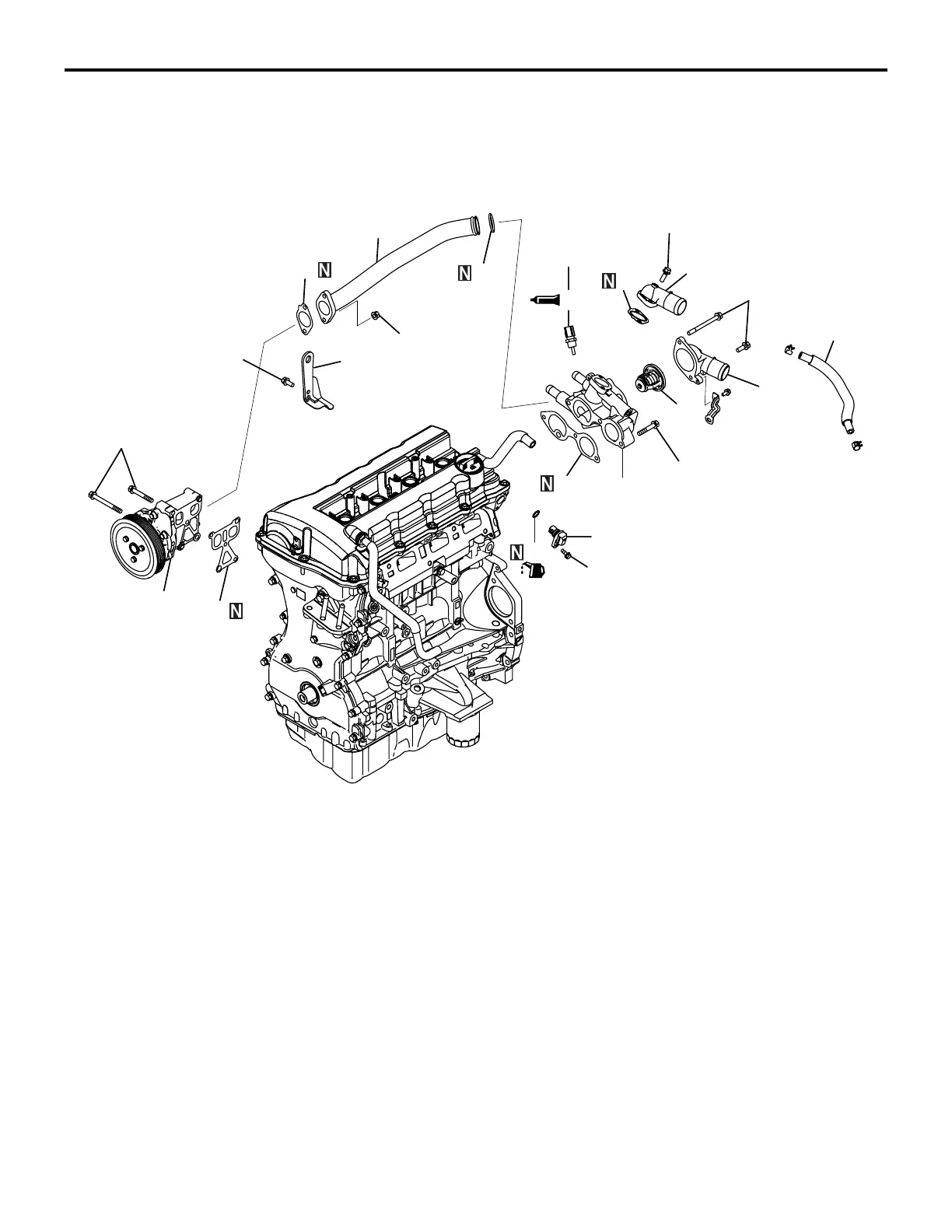

REMOVAL AND INSTALLATION
M1113032900722
AKC00005
12
13
1
14
15
16
11 ± 1 N·m
5
6
3
30 ± 9 N·m
4
2
7
8
9
10
11
AB
24 ± 3 N·m
28 ± 8 N·m
24 ± 3 N·m
24 ± 3 N·m
24 ± 3 N·m
24 ± 3 N·m
Removal steps
1. Water hose
>>C<<
2. Coolant temperature sensor
3. Water outlet fitting
4. Outlet fitting gasket
5. Water inlet fitting
>>B<<
6. Thermostat
>>A<<
7. Thermostat housing
8. Thermostat housing gasket
>>A<<
9. Water pipe assembly
10. Water pipe gasket
11. O-ring
12. Water pump assembly
13. Water pump gasket
14. Engine hanger
15. Camshaft position sensor
16. O-ring
INSTALLATION SERVICE POINTS
>>A<< THERMOSTAT HOUSING / WATER
PIPE ASSEMBLY INSTALLATION
Assemble the thermostat housing and water pipe,
and temporarily tighten them to the cylinder head
and water pump. Then tighten them to the specified
torque of 24
± 3 N⋅m.
Removal steps (Continued)
