EXHAUST MANIFOLD

ENGINE OVERHAUL

11B-17

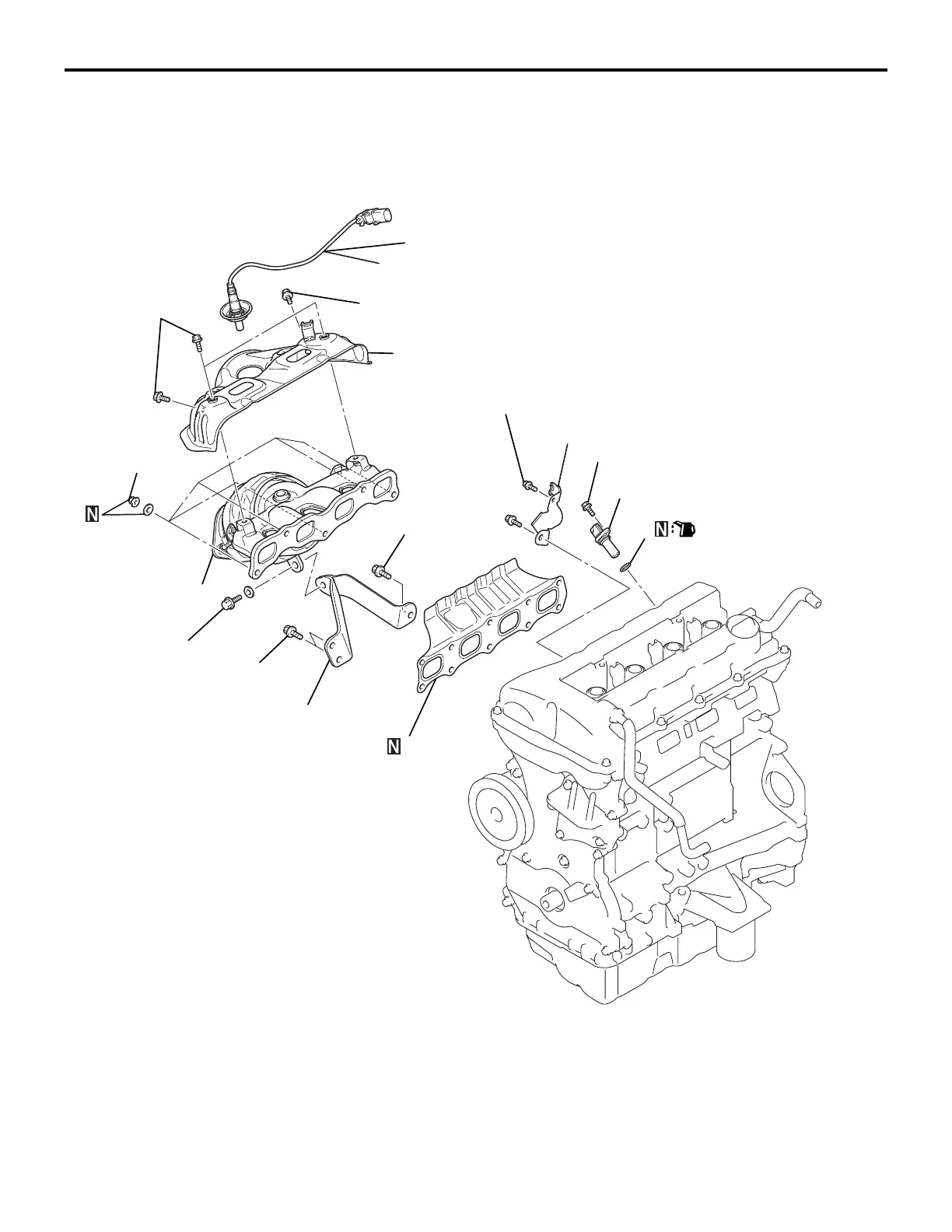

EXHAUST MANIFOLD

REMOVAL AND INSTALLATION

M1113011901247

AKB00728

44 ± 5 N·m

11 ± 1 N·m

8.0 ± 2.0 N·m

41 ± 10 N·m

11 ± 1 N·m

8.0 ± 2.0 N·m

49 ± 5 N·m

56 ± 8 N·m

Removal steps

>>D<<

1. Exhaust manifold bracket

2. Crank angle sensor cover

>>C<<

3. Crank angle sensor

>>C<<

4. O-ring

<<A>> >>B<<

5. Oxygen sensor

6. Exhaust manifold cover

>>A<<

7. Exhaust manifold

8. Exhaust manifold gasket

Removal steps (Continued)
