ALTERNATOR AND IGNITION SYSTEM
ENGINE OVERHAUL
11B-10
ALTERNATOR AND IGNITION SYSTEM

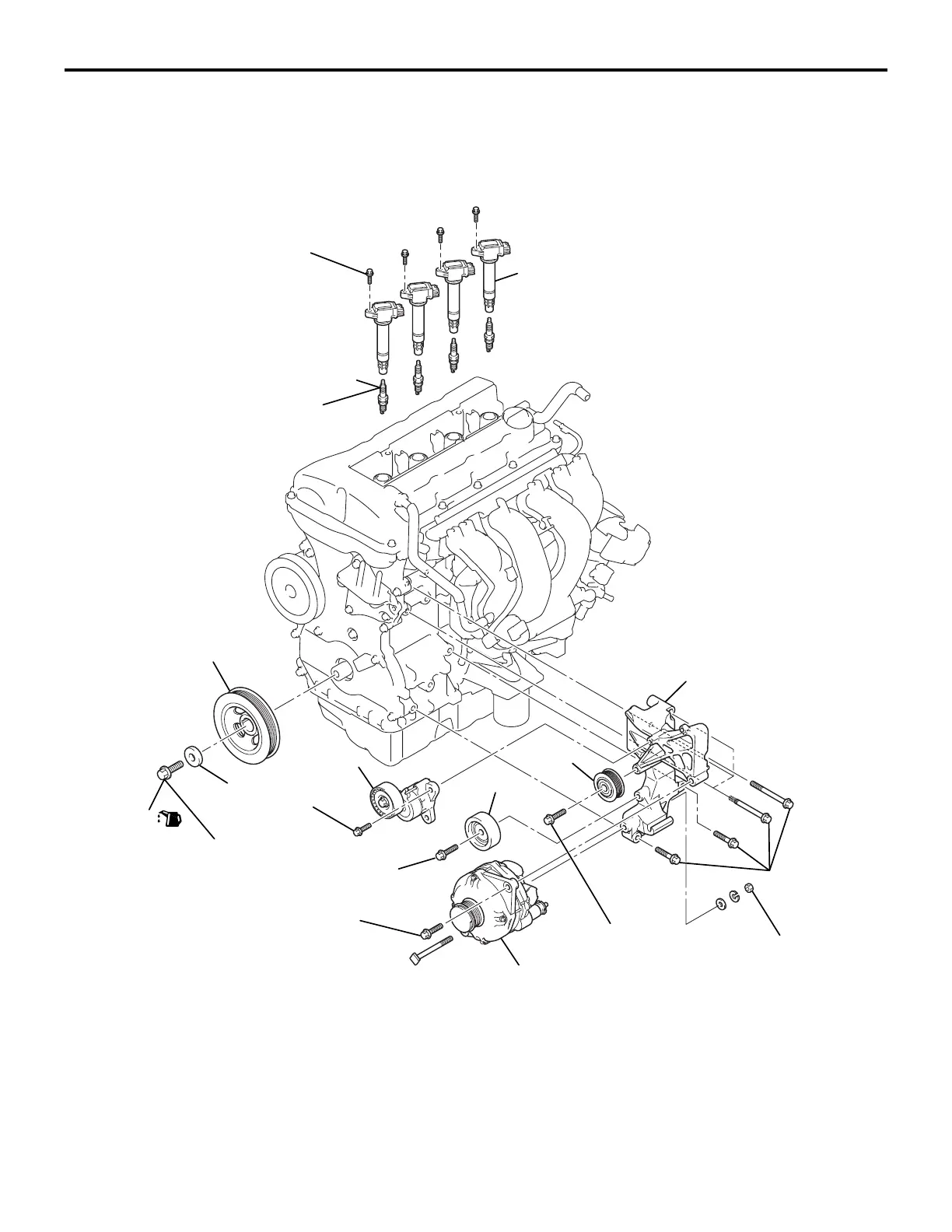

REMOVAL AND INSTALLATION
M1113001002718
AKB00725
AB
1
2
44 ± 10 N·m
210 N·m
22 ± 4 N·m
44 ± 10 N·m
25 ± 5 N·m
10 ± 2 N·m
3
6
7
8
9
10
44 ± 8 N·m
44 ± 8 N·m
44 ± 8 N·m
5
4
Removal sequence
1. Idler pulley
2. Idler pulley
>>
C
<<
3. Alternator
>>
C
<<
4. Accessory bracket
5. Auto tensioner
<<
A
>> >>
B
<<
6. Crankshaft pulley centre bolt
>>
B
<<
7. Crankshaft pulley washer
>>
B
<<
8. Crankshaft pulley
9. Ignition coil
<<
B
>> >>
A
<<
10. Spark plug
Removal sequence (Continued)
