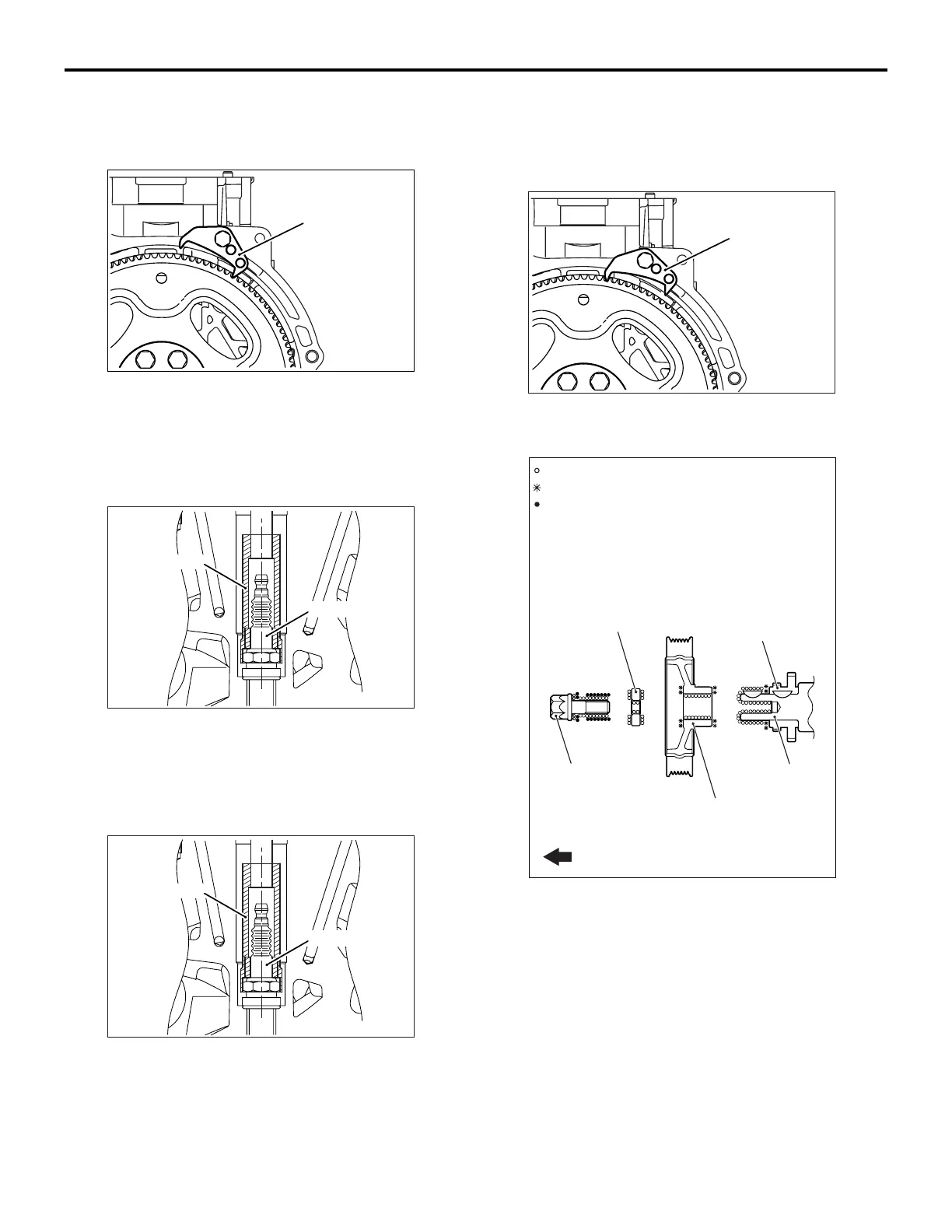

ALTERNATOR AND IGNITION SYSTEM
ENGINE OVERHAUL
11B-11
REMOVAL SERVICE POINTS
<<A>> CRANKSHAFT PULLEY CENTRE
BOLT REMOVAL
AK502869
AC
MB991883
1. Use special tool Flywheel stopper (MB991883) to
secure the drive plate.
2. Remove the crankshaft pulley centre bolt.
<<B>> SPARK PLUG REMOVAL
AK600875
MB991398
AB
Spark plug
Using special tool Spark plug wrench (MB991398),
remove the spark plug.
INSTALLATION SERVICE POINTS
>>A<< SPARK PLUG INSTALLATION
AK600875
MB991398
AB
Spark plug
Use special tool Spark plug wrench (MB991398),
tighten the spark plug to specified torque of 25
± 5
N
m.
>>B<< CRANKSHAFT PULLEY /
CRANKSHAFT PULLEY WASHER /
CRANKSHAFT PULLEY CENTRE BOLT
INSTALLATION
AK503335
AC
MB991883
1. Use special tool Flywheel stopper (MB991883) to
secure the drive plate.
AK602911
AJ
Engine front
Washer
Crankshaft
Crankshaft pulley
Crankshaft
pulley bolt
Crankshaft
sprocket
: Wipe clean with a rag.
: Wipe clean with a rag and degrease.
: Wipe clean with a rag, degrease and
apply a small amount of engine oil.
2. Wipe off the dirt on the crankshaft pulley washer
and on the thread hole of the crankshaft using a
rag.
3. Wipe off the dirt on the crankshaft pulley and the
crankshaft sprocket using a rag, and then remove
the grease from the portion shown in the
illustration.
NOTE: Remove grease to prevent the coefficient
of friction of the pressing portion from declining
due to adhesion of oil.
4. Install the crankshaft pulley.
