CYLINDER HEAD AND VALVES
ENGINE OVERHAUL
11B-37

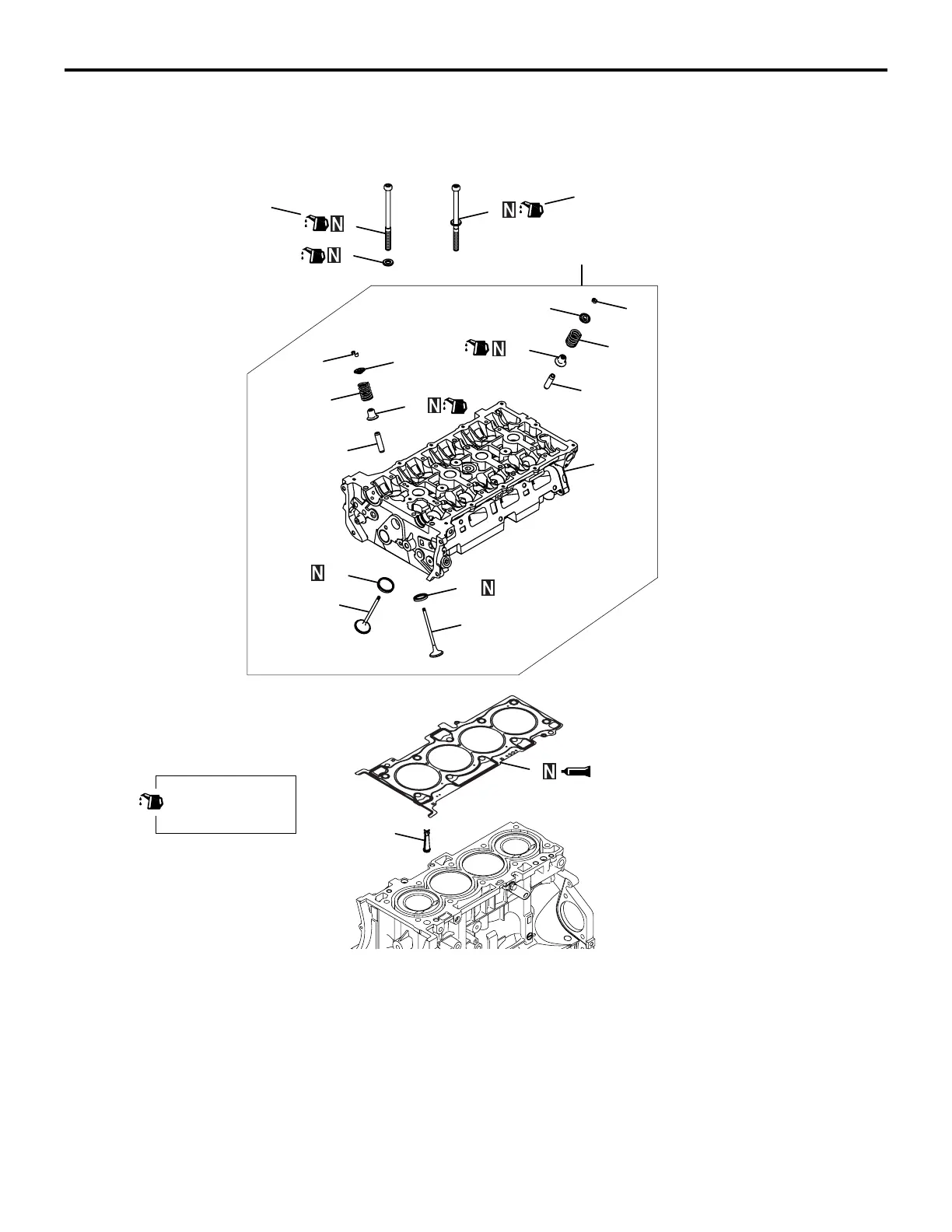

CYLINDER HEAD AND VALVES
REMOVAL AND INSTALLATION
M1113006903463
AK703803
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
35 ± 2 N·m
AD
21
Apply engine oil to
all moving parts
before installation.
+90 ˚ +90 ˚
35 ± 2 N·m
+90
˚ +90 ˚
Removal steps
>>D<<
1. Cylinder head bolt
>>D<<
2. Cylinder head bolt washer
>>D<<
3. Cylinder head bolt & washer
assembly
>>C<<
4. Cylinder head assembly
>>C<<
5. Cylinder head gasket
6. Oil feeder control valve (OCV) filter
<<A>> >>B<<
7. Retainer lock
8. Valve spring retainer
9. Valve spring
10. Inlet valve
<<A>> >>B<<
11. Retainer lock
12. Valve spring retainer
13. Valve spring
14. Exhaust valve
<<B>> >>A<<
15. Valve stem seal
<<B>> >>A<<
16. Valve stem seal
17. Inlet valve guide
18. Exhaust valve guide
19. Inlet valve seat
20. Exhaust valve seat
21. Cylinder head
