OIL PUMP CHAIN <4B11>

ENGINE OVERHAUL

11B-43

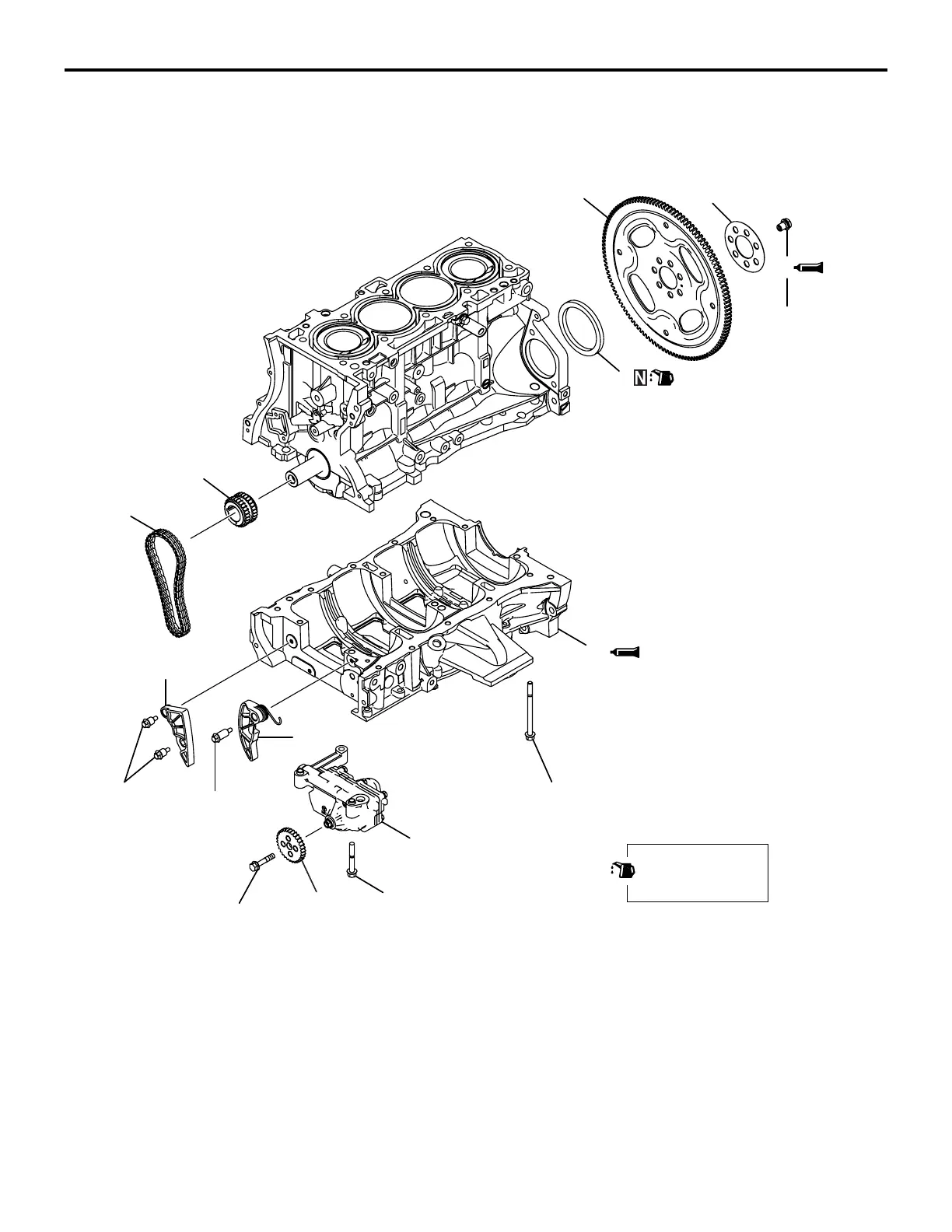

OIL PUMP CHAIN <4B11>

REMOVAL AND INSTALLATION

M1113033700572

AKB00721

24 ± 2 N·m

10 ± 2 N·m

26 ± 2 N·m

23 ± 2 N·m

10 ± 2 N·m

Apply engine oil to

all moving parts

before installation.

40 N·m

130

N·m

Removal steps

<<A>> >>E<<

1. Drive plate bolt

2. Adapter plate

3. Drive plate

>>D<<

4. Rear oil seal

5. Oil pump chain guide

6. Oil pump tensioner lever

>>C<<

7. Oil pump chain

<<B>> >>C<<

8. Oil pump sprocket

9. Oil pump case

>>B<<

10. Crankshaft sprocket

<<C>> >>A<<

11. Ladder frame

Removal steps (Continued)
