OIL PUMP CHAIN <4B11>
ENGINE OVERHAUL
11B-46

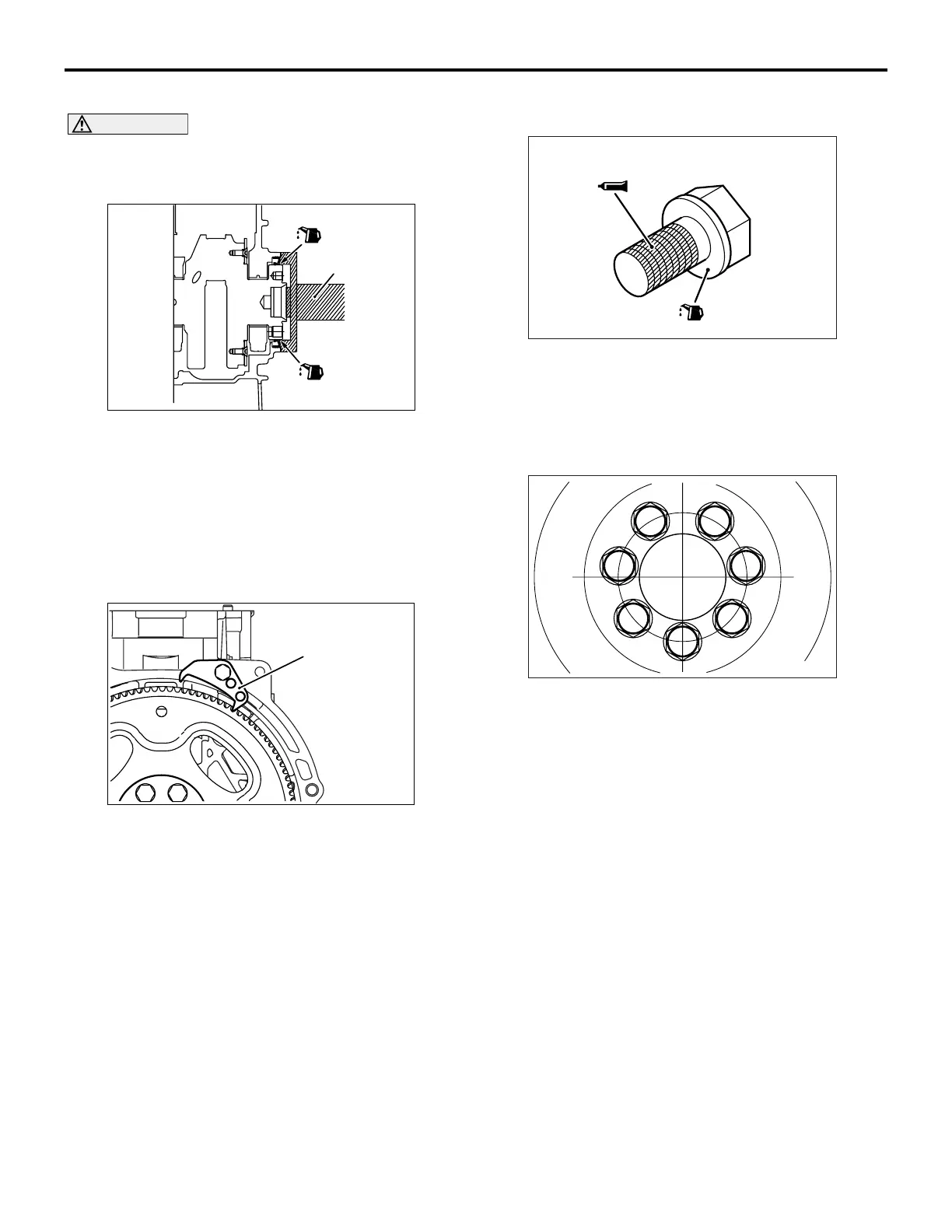

>>D<< REAR OIL SEAL INSTALLATION
CAUTION
Do not apply oil to the circumference of the oil
seal and oil seal pressing hole on the cylinder
block side to prevent teeth from pulling out.
AK502871
AC
MD998718
After applying a small amount of engine oil to the oil
seal lip, use special tool Rear oil seal installer
(MD998718) to press fit the oil seal.
>>E<< DRIVE PLATE BOLT
INSTALLATION
1. Clean off sealant and oil of thread of crankshaft
and drive plate bolts.
AK502869
AC
MB991883
2. Use special tool Flywheel stopper (MB991883) to
secure the drive plate.
AK600847
AB
3. Apply engine oil to thread of crankshaft and bolt
seat area of drive plate.
4. Apply the sealant to the thread of drive plate bolt.
Specified sealant:
ThreeBond 1324 or equivalent
AK603576
1
2
3
4
5
6
7
AC
5. Tighten drive plate bolt to temporary torque of 40
N
⋅m in the order shown to illustration.
6. Tighten drive plate bolt to specified torque of 130
N
⋅m in the order shown in the illustration.
To Next Page
