Mitsubishi OUTLANDER Service Manual

TIMING CHAIN
ENGINE OVERHAUL
11B-26
TIMING CHAIN

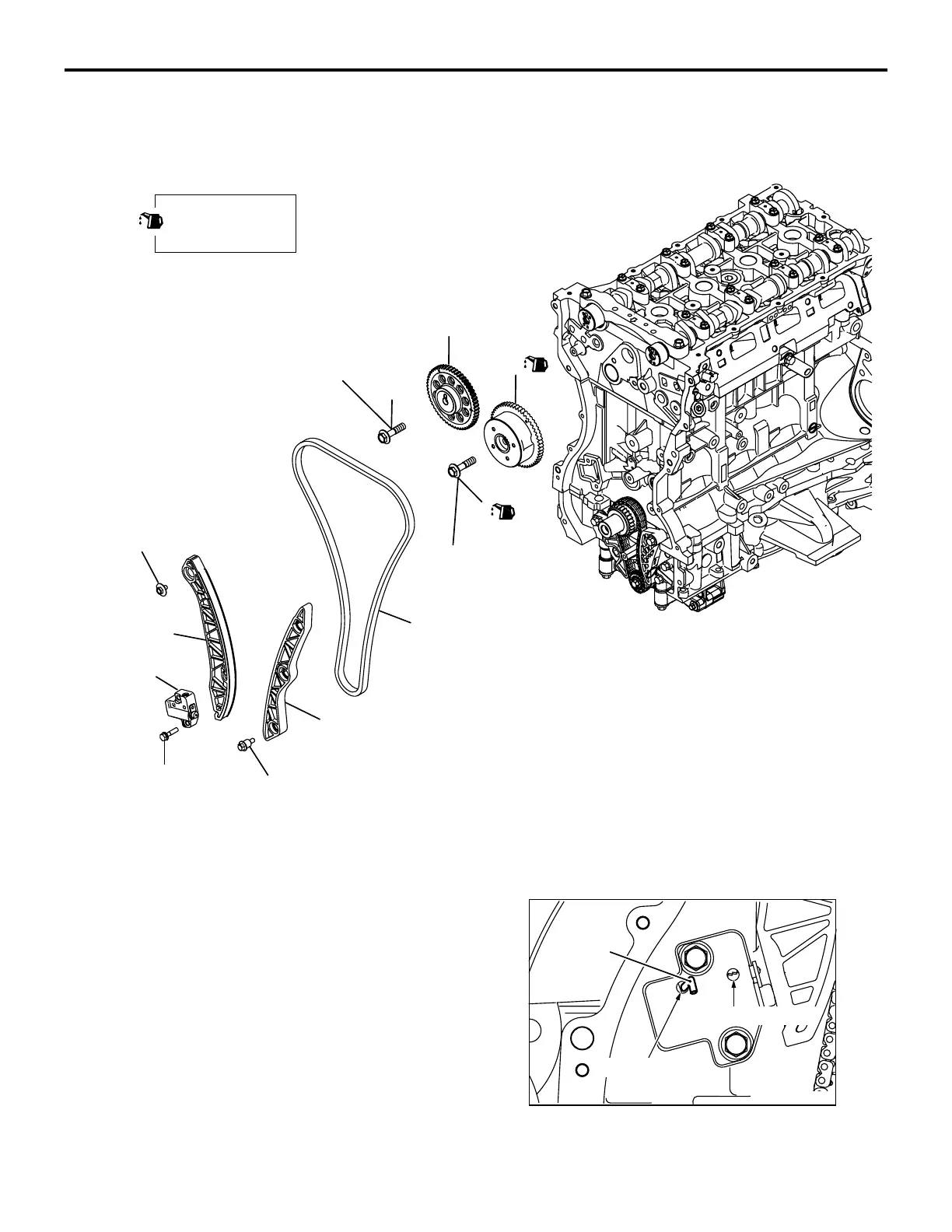

REMOVAL AND INSTALLATION
M1113026601253
AKB00096
10 ± 2 N·m
1
2
3
4
59 ± 5 N·m
59 ± 5 N·m
10 ± 2 N·m
10 ± 2 N·m
7
5
6
8
AC
Apply engine oil to
all moving parts
before installation.
Removal steps
<<A>> >>D<<
1. Timing chain tensioner
2. Tensioner lever
3. Timing chain guide
>>C<<
4. Timing chain
<<B>> >>B<<
5. Exhaust camshaft sprocket bolt
6. Exhaust camshaft sprocket
assembly
<<C>> >>A<<
7. Inlet V.V.T. sprocket bolt
8. Inlet V.V.T. sprocket assembly
REMOVAL SERVICE POINTS
<<A>> TIMING CHAIN TENSIONER
REMOVAL
AK502854
AE
Wire
Ratchet release hole
Plunger fixed hole
1. Insert a flatblade screwdriver into the release hole
of the timing chain tensioner to release the latch.
