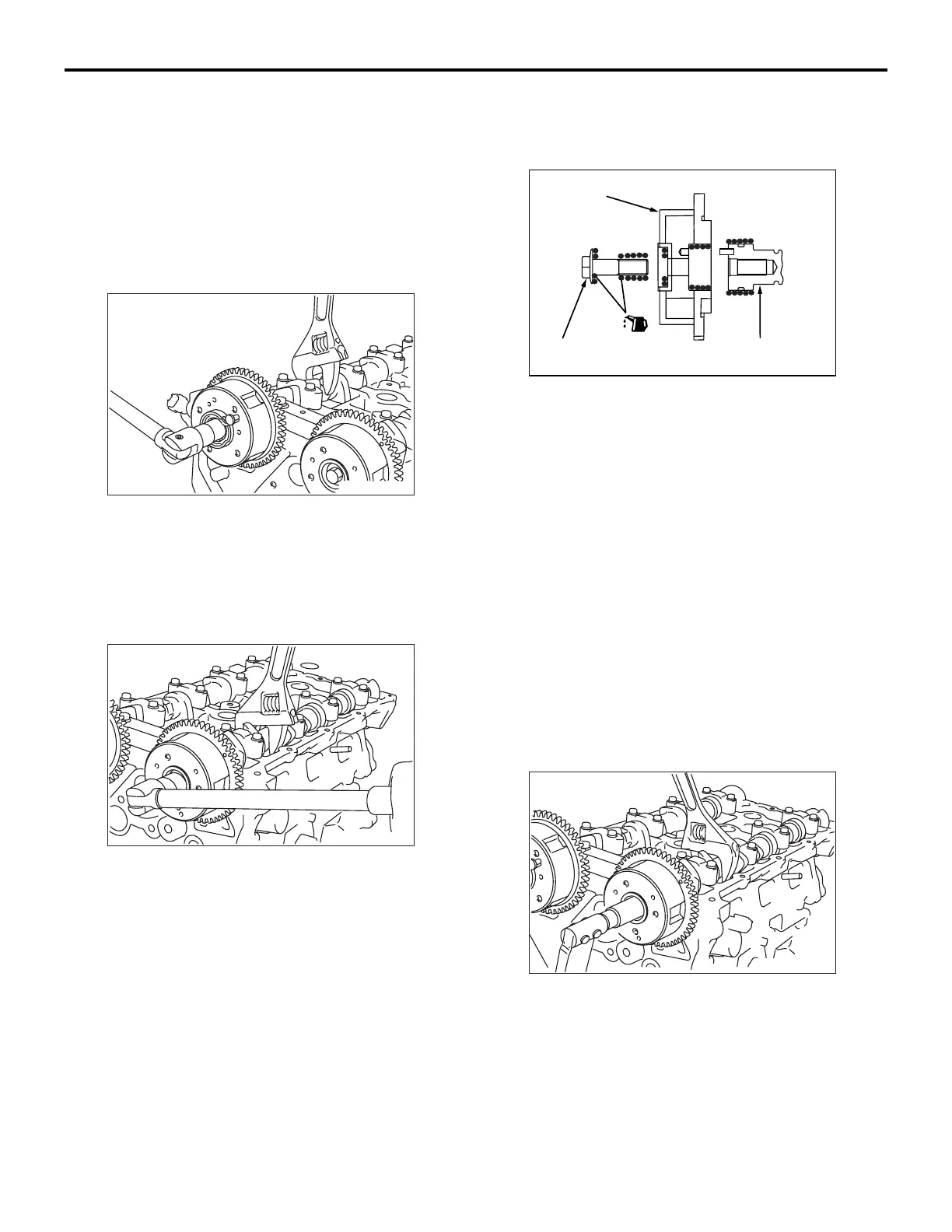

Mitsubishi OUTLANDER Service Manual

TIMING CHAIN
ENGINE OVERHAUL
11B-27
2. Push the tensioner lever by hand and push in the
plunger of the timing chain tensioner until it hits
the bottom. Then, insert a hard wire (piano wire or
the like) of
φ1.5 or hexagonal bar wrench (1.5
mm) into the fixing hole of the plunger.
3. Remove the timing chain tensioner.
<<B>> EXHAUST CAMSHAFT SPROCKET
BOLT REMOVAL
AK502737
Hold the hexagonal portion of the exhaust camshaft
with a wrench and loosen the exhaust camshaft
sprocket bolt.
<<C>> INLET V.V.T. SPROCKET BOLT
REMOVAL
AK502736
Hold the hexagonal portion of the inlet camshaft with
a wrench and loosen the inlet V.V.T. sprocket bolt.
INSTALLATION SERVICE POINTS
>>A<< INLET V.V.T. SPROCKET BOLT
INSTALLATION
AK503070
AC
V.V.T. sprocket
V.V.T. sprocket bolt
Camshaft
1. Assemble the inlet V.V.T. sprocket assembly in the
following procedure.
• Make sure that the knock pin of the inlet camshaft
assembly is positioned facing straight upward.
• Apply an appropriate and minimum amount of
engine oil to the circumference of the tip of the
inlet V.V.T. sprocket assembly and the entire cir
-
cumference of the area into which the inlet V.V.T.
sprocket assembly is inserted.
• Slowly insert the inlet V.V.T. sprocket assembly
into the normal position of the inlet camshaft
assembly with its knock pin hole facing straight
upward.
2. Install the V.V.T. sprocket.
3. Make sure that the V.V.T. sprocket is securely
inserted into the bottom and that the V.V.T.
sprocket does not rotate with the hexagonal
portion of the camshaft secured with a wrench.
AK502739
4. Hold the hexagonal portion of the camshaft with a
wrench and tighten the inlet V.V.T. sprocket bolt to
the specified torque of 59
± 5 N⋅m.
>>B<< EXHAUST CAMSHAFT SPROCKET
BOLT INSTALLATION
1. Assemble the exhaust camshaft sprocket
assembly in the following procedure.
