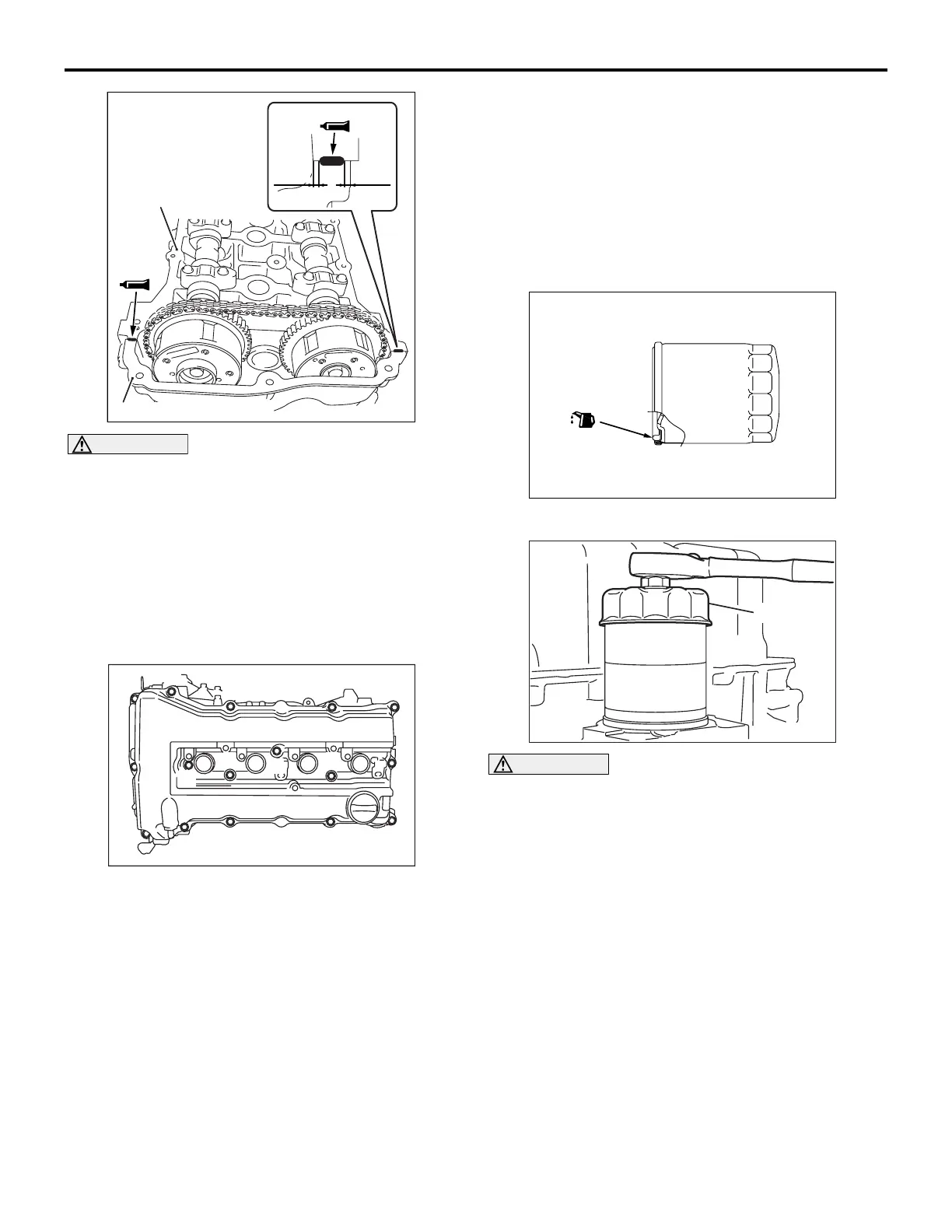

Mitsubishi OUTLANDER Service Manual

AK901127
4 mm
2 mm
4 mm
2 mm
AC
Timing chain case
Cylinder head
OIL PAN AND TIMING CHAIN CASE
ENGINE OVERHAUL
11B-25
CAUTION
Install the cylinder head cover immediately after
liquid gasket is applied.
3. Appropriately use a minimum amount of sealant.
Besides, be careful not to allow sealant to
squeeze out from the application area.
Apply liquid gasket of 4 mm of thickness in
diameter.
Specified sealant:
ThreeBond 1217G or equivalent
AKB00057
AB
8
1
4
1
3
1
2
15
16
1
3
9
10
74
2
5
6
11
4. Tighten the cylinder head cover to the tightening
torque of 3.0
± 1.0 N⋅m in the order shown in the
illustration.
5. Then, tighten it to the specified torque of 5.5 ± 0.5
N
⋅m in the same order.
>>E<< OIL FILTER INSTALLATION
1. Clean the oil filter mounting surface of the ladder
frame.
AK305422
AB
2. Apply engine oil to the O-ring of the oil filter.
AK502733
AC
MB991396
CAUTION
Use special tool Filter wrench (MB991396) to
install the oil filter. Tightening it by hand causes
oil leakage due to lack of torque.
3. Screw in the oil filter. When the O-ring contacts
the mounting surface, use a filter wrench to
tighten it 1 turns (14
± 2 N⋅m).
