AK502378
A
A
A
A
A
A
B
B
B
B
B
B
C
D
AI
A: M8 × 30
B: M6 × 25
C: M6 × 25
D: M8 × 10

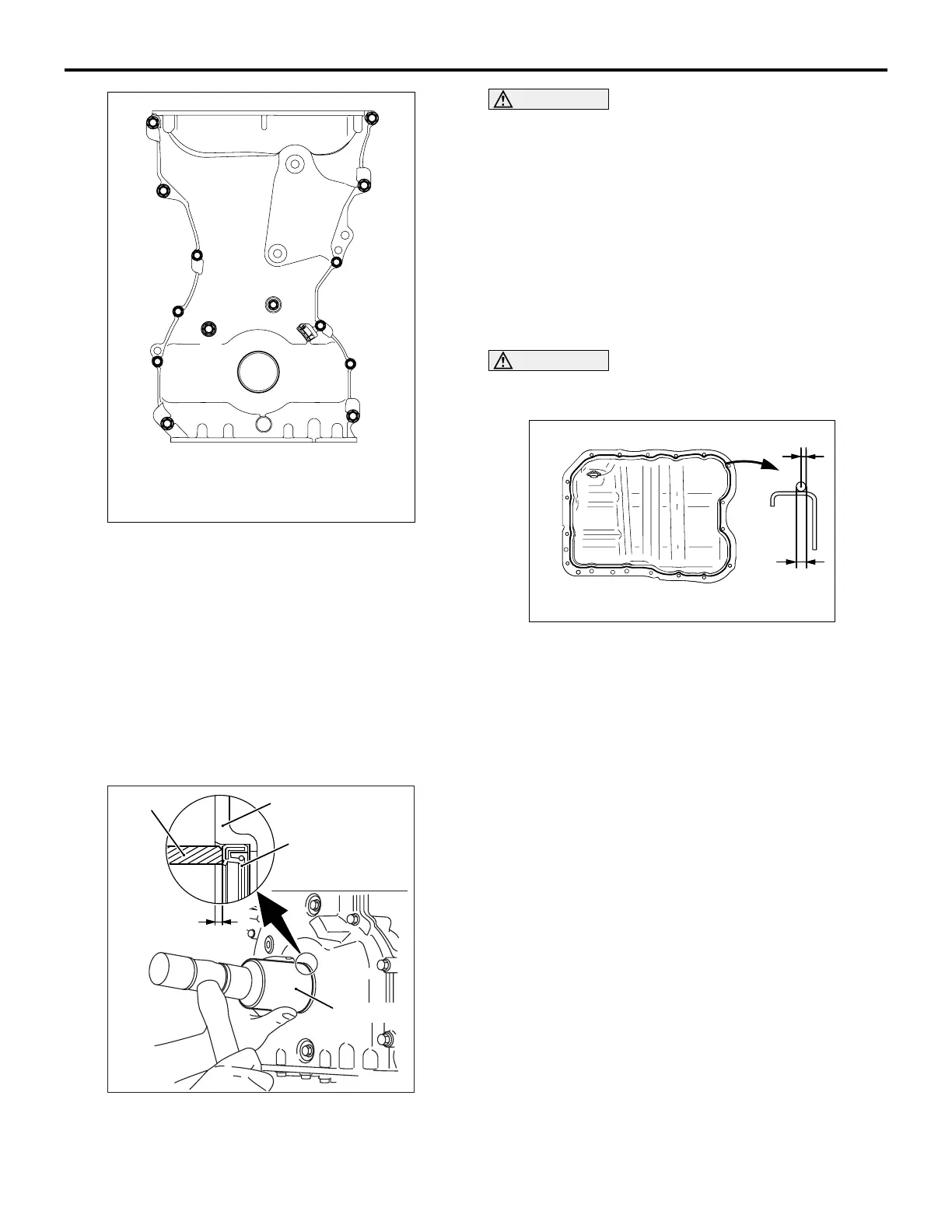

OIL PAN AND TIMING CHAIN CASE
ENGINE OVERHAUL
11B-24
5. Tighten timing chain case mounting bolts to the
specified torque.
Tightening torque
A: 24 ± 4 N⋅m
B: 10 ± 2 N⋅m
C: 10 ± 2 N⋅m
D: 13 ± 1 N⋅m
>>B<< FRONT OIL SEAL INSTALLATION
1. Apply a small amount of engine oil to the entire
inner diameter of the front oil seal lip.
AK800005
1.5 – 2.5 mm
AB
MB991448
Chain case
Oil seal
MB991448
CAUTION
The front oil seal must not be a strong press fit.
The strong press fit can possibly cause the oil
leakage, damaging the front oil seal.
2. Use special tool Bush remover and installer base
(MB991448) in order to press-fit the front oil seal
into the timing chain case as shown in the
illustration.
>>C<< OIL PAN INSTALLATION
1. Completely remove liquid gasket adhering to the
cylinder block and oil pan.
CAUTION
Install the oil pan within three minutes after liquid
gasket is applied.
AK502377
AC
1 mm
2.5
±
0.5 mm
Ø
2. Apply liquid gasket of φ2.5 ± 0.5 mm of thickness
in diameter to the illustrated area of the oil pan.
Specified sealant:
ThreeBond 1217G or equivalent
3. Tighten the oil pan to the specified torque of 10 ±
2 N
⋅m (M6) and 29 ± 2 N⋅m (M8).
>>D<< CYLINDER HEAD COVER
INSTALLATION
1. Completely remove liquid gasket adhering to the
cylinder head cover, timing chain case and
cylinder head.
2. Degrease the surface where the liquid gasket is
applied and the contact.
To Next Page
