AK703733
4.5 ± 0.5 mm
3 ± 0.5 mm
1 ± 0.5 mm
3 ± 0.5 mm
AA
B-B view
A-A view
2.5 mm
D
AE
B
A
A
G C
C-C view
C
BB
7.5 ± 0.5 mm
Ø
4.5 ± 0.5 mm
Ø
2.5 ± 0.5 mm
Ø
2.5 ± 0.5 mm
Ø
2.5 ± 0.5 mm
Ø
2.5 ± 0.5 mm
OIL PAN AND TIMING CHAIN CASE
ENGINE OVERHAUL
11B-23
CAUTION
Install the timing chain case within three minutes
after applying the liquid gasket.

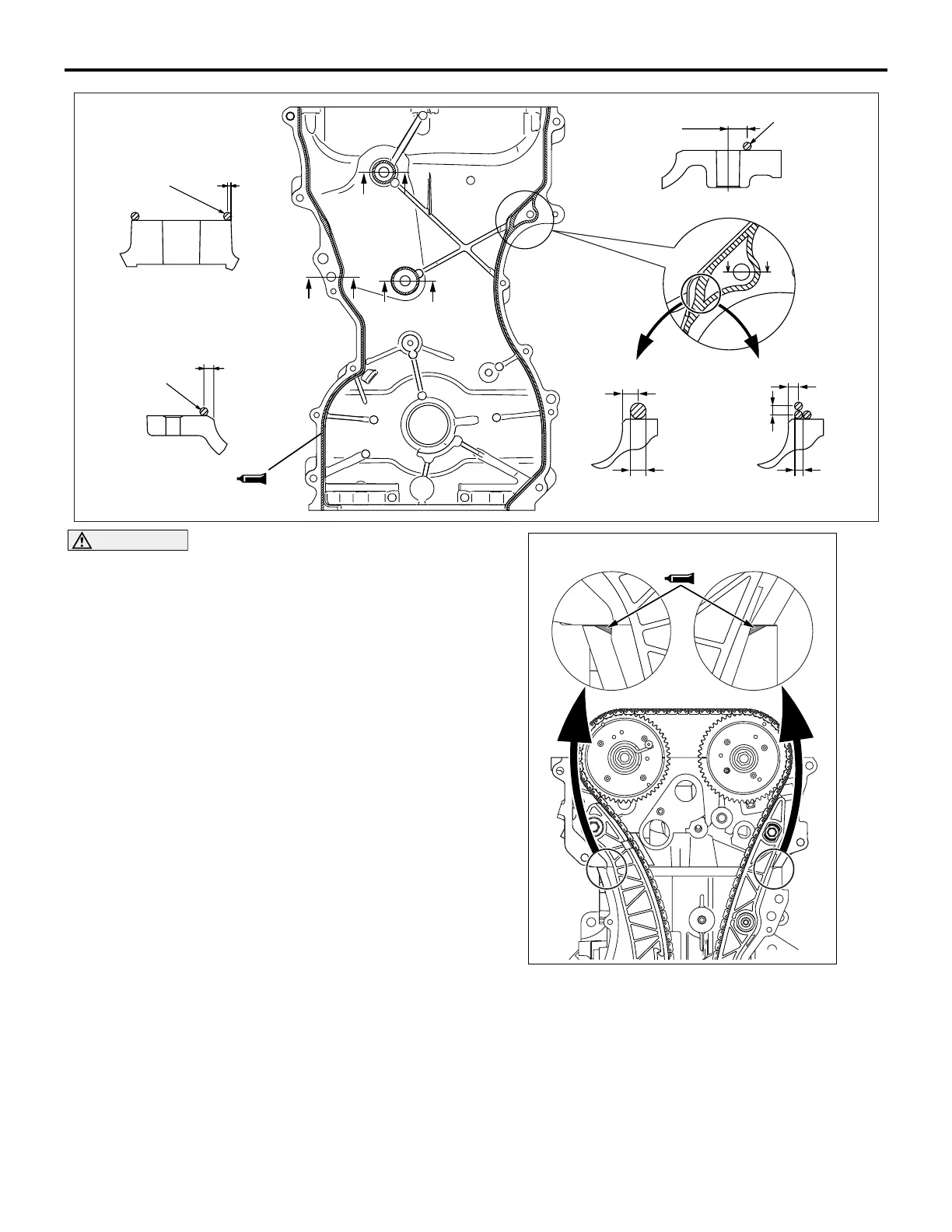

3. Apply liquid gasket of 2.5 ± 0.5 mm in thickness to
the timing chain case. For the place "D" shown in
the illustration, however, apply the liquid gasket
whose diameter is 4.5
± 0.5 mm or pile up the
liquid gasket of 2.5
± 0.5 mm as shown in the
illustration.
Specified sealant:
ThreeBond 1217G or equivalent
AK703734AC
4. The engine oil staying at the cylinder gasket
oozes to the 3-plane contact surface described in
Step 2 and 3. Swiftly apply the liquid gasket to this
area after degreasing.
Specified sealant:
ThreeBond 1217G or equivalent
