WATER HOSE AND PIPE
ENGINE OVERHAUL
11B-20

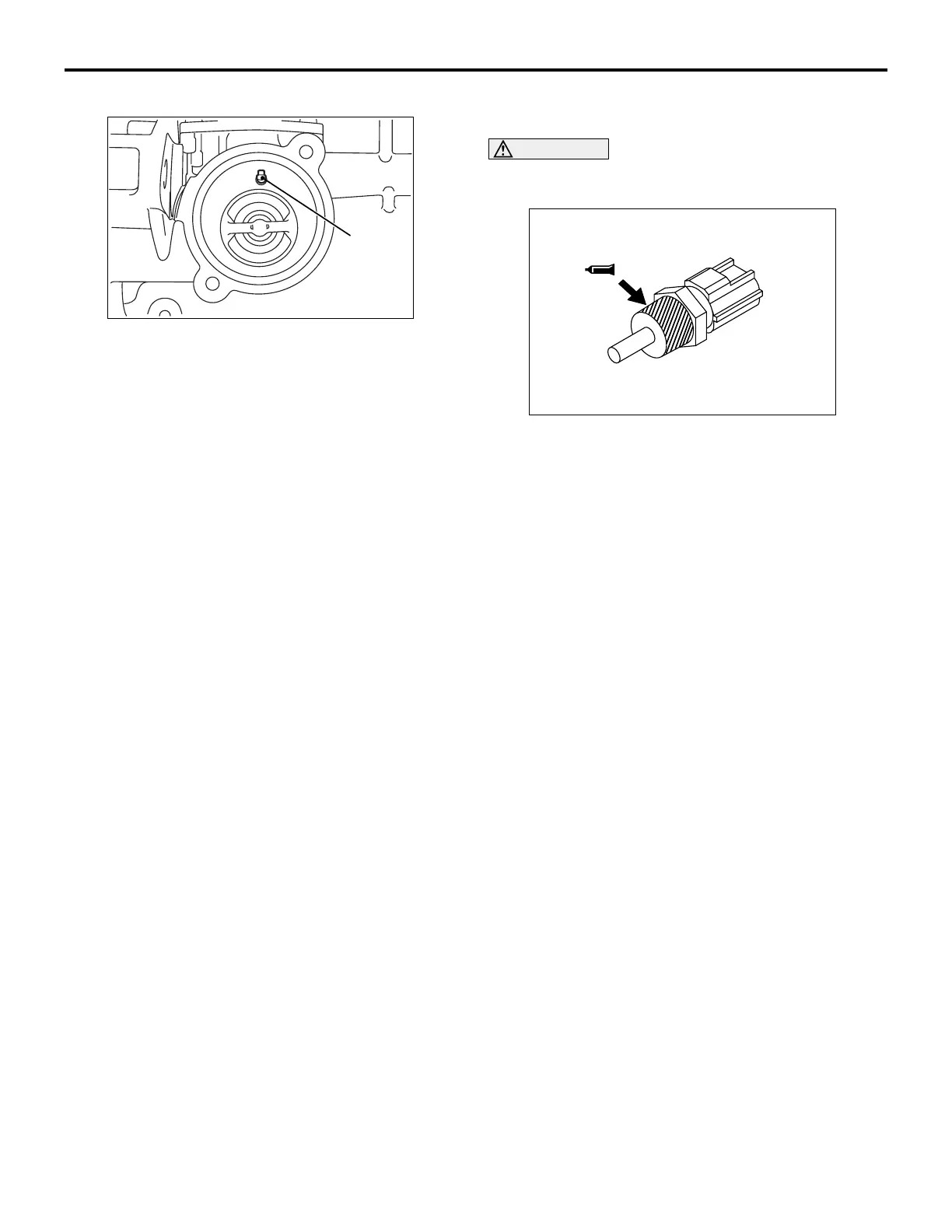

>>B<< THERMOSTAT INSTALLATION
AK304916
AB
Jiggle Valve
Install the thermostat with the jiggle-valve facing
almost straight upwards.
>>C<< COOLANT TEMPERATURE
SENSOR INSTALLATION
CAUTION
Be careful not to give a shock, twist and the like
to the resin mould with a tool during installation.
AK502544 AC
1. Apply an appropriate and minimum amount of
sealant to the coolant temperature sensor, taking
care not to allow sealant to squeeze out.
Specified sealant:
ThreeBond 1324N, Loctite 262 or equivalent
2. Tighten the coolant temperature sensor to the
cylinder block to the specified torque of 30
± 9
N
⋅m.
To Next Page
