Contact a MITSUBISHI MOTORS Authorized
Service Point when there is a need for repair or re-
placement.
Side turn-signal lamps (on outside rear-
view mirror)*
E01003900431
NOTE
l
An LED, not a bulb, is used in the side turn-
signal lamps (on outside rear-view mirror).
Contact a MITSUBISHI MOTORS Author-
ized Service Point when there is a need for re-
pair or replacement.
Front fog lamps*
E01004001393

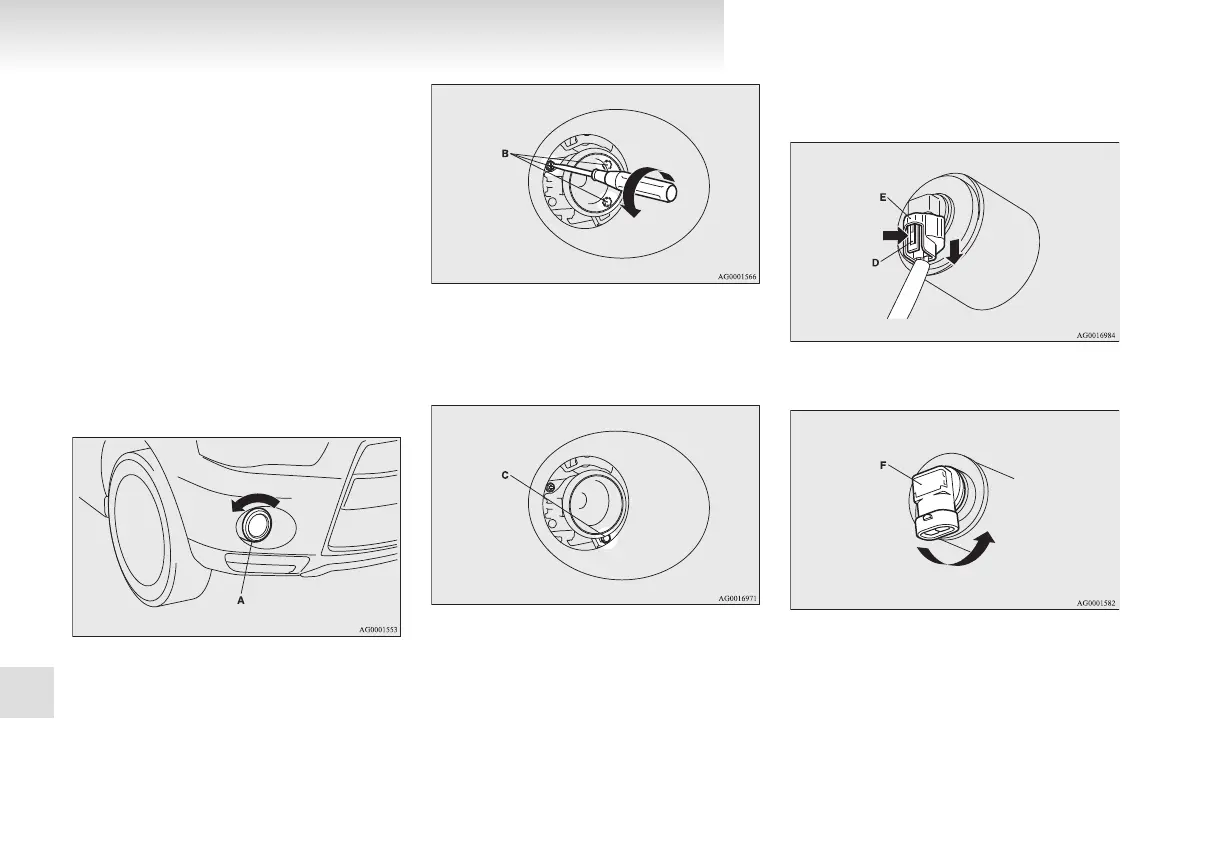

1. Turn the bezel (A) anticlockwise to remove it.
2. Remove the 3 screws (B) and remove the
lamp unit.
NOTE
l
When unfastening the screws, be careful not
to mistakenly move the beam position adjust-
ment screw (C).
3. While holding down the tab (D), pull out the
socket (E).
4. Turn the bulb (F) anticlockwise to remove it.
5. To install the bulb, perform the removal
steps in reverse.
Maintenance
8-30
