CAUTION
l
Handle halogen lamp bulbs with care.
The gas inside halogen lamp bulbs is high-
ly pressurized, so dropping, knocking, or
scratching a halogen lamp bulb can cause
it to shatter.
l
Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the
bulb to break the next time the fog lamps
are operated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc.,
and refit it after drying thoroughly.
Rear fog lamp (driver’s side)
E01004100472

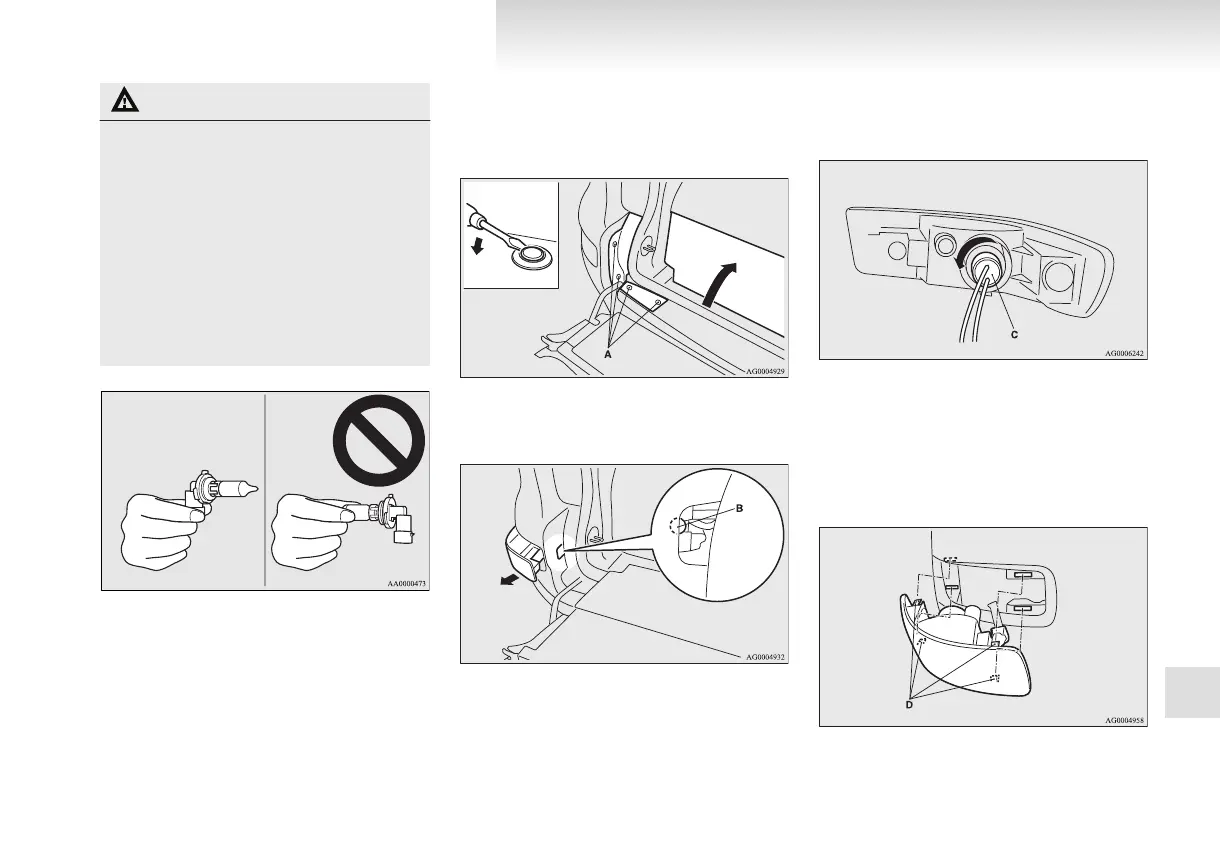

1. Open the lower gate and pull back the cover
between the passenger compartment and the
lower gate.
2. Remove the cover after you remove each of
the 4 clips (A) by inserting a screw driver in-
to the clip groove and levering it towards the
vehicle body.
3. Remove the lamp mounting screws (B) and
remove the lamp unit.
4. Remove the socket and bulb assembly (C) to-
gether by turning it anticlockwise and then re-
move the bulb by pulling it out.
5. To install the bulb, perform the removal
steps in reverse.
NOTE
l
When mounting the lamp unit, align the pins
(D) on the lamp unit with the hole in the body.
