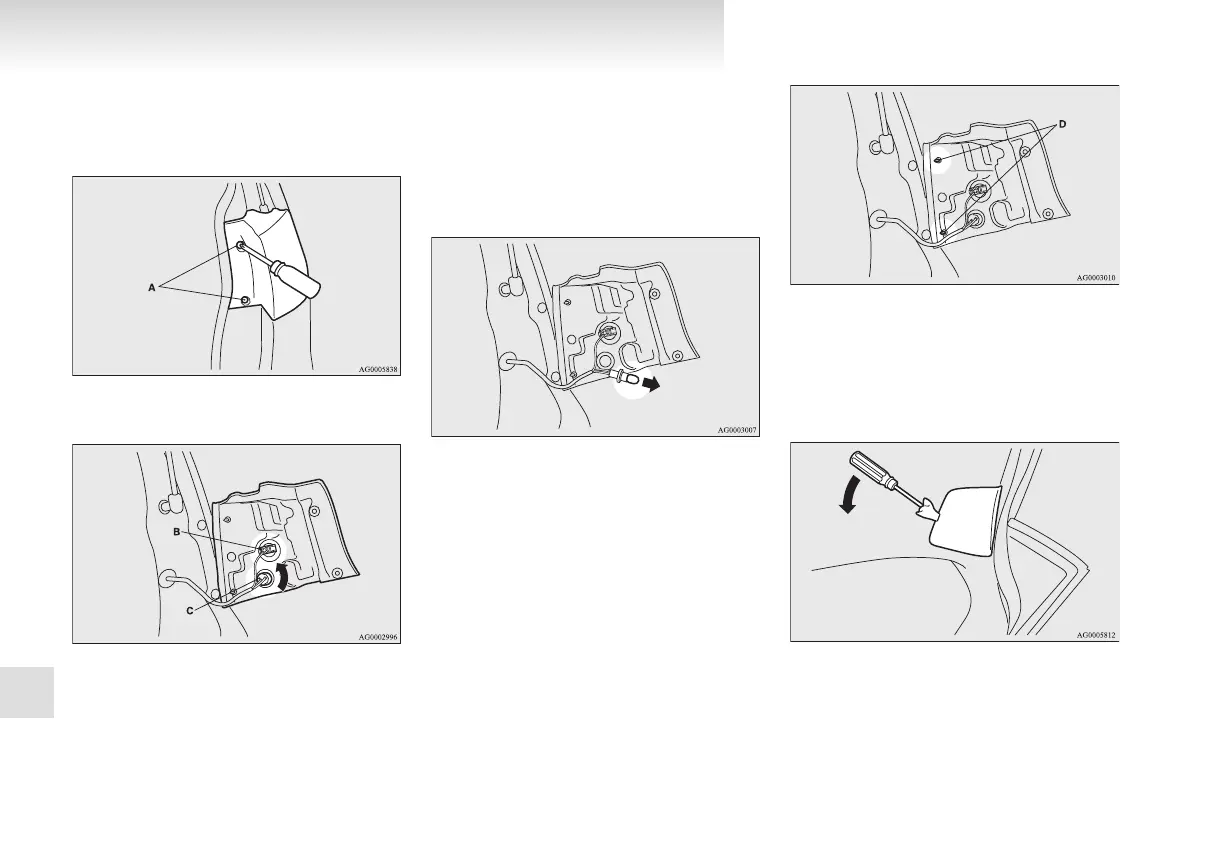

Rear combination lamps
E01004201223
1. Remove the screws (A), and then remove the
lamp unit.
2. Turn the socket anticlockwise and remove it.
B- Stop lamps/tail lamps (LED) - Cannot be re-
placed.
C- Rear turn-signal lamps
NOTE
l
An LED, not a bulb, is used in the stop lamp/
tail lamp. Contact a MITSUBISHI
MOTORS Authorized Service Point when
there is a need for repair or replacement.
3. Remove the bulb from the socket.
4. To install the bulb, perform the removal
steps in reverse.
NOTE
l
When installing the lamp unit, align the lamp
unit pins (D) with the holes on the vehicle
body and install.
Reversing lamps
E01004400286
1. Open the tailgate.
2. Insert a minus screwdriver with the end cov-
ered with a cloth or other object into the cut
out area of the cover to wedge out the cover.
Maintenance
8-32
8
