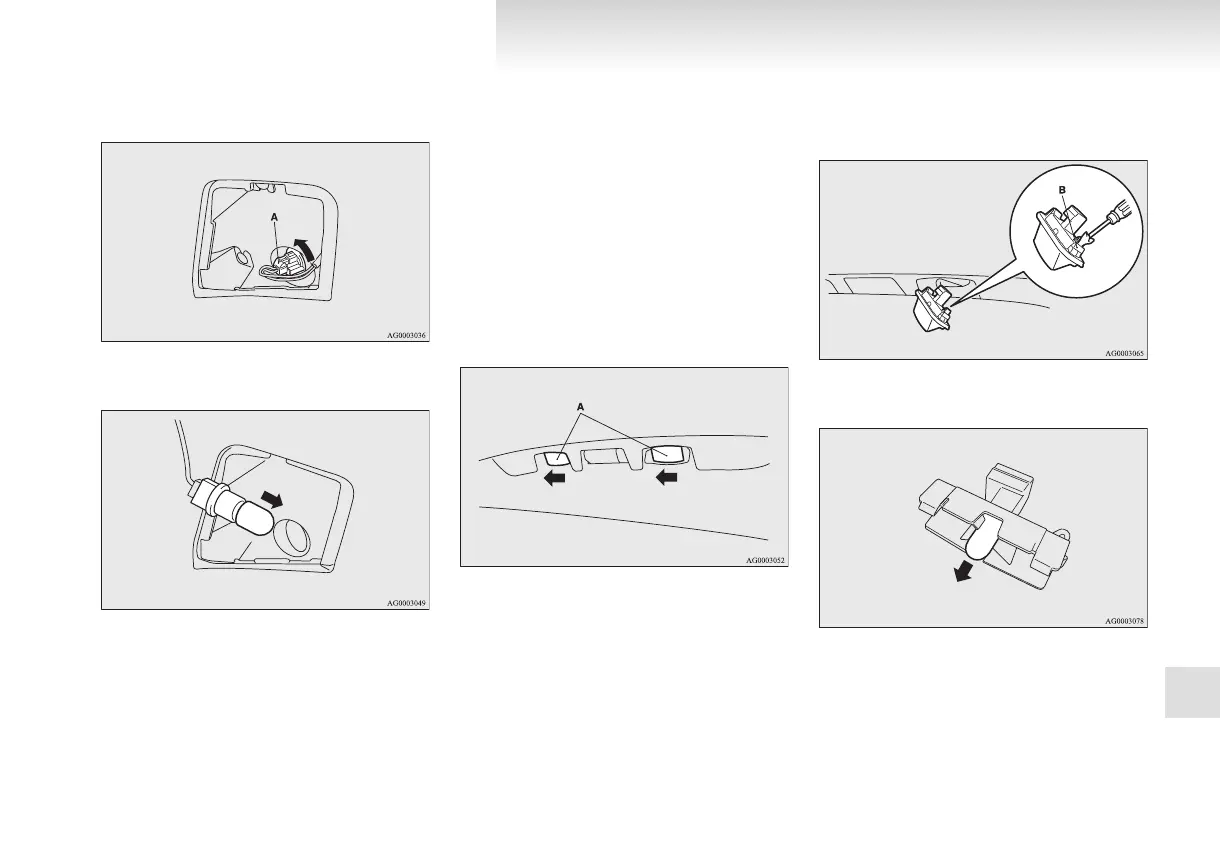

3. Turn the socket (A) anticlockwise and re-
move it.
4. Remove the bulb from the socket.
5. To install the bulb, perform the removal
steps in reverse.
High-mounted stop lamp
E01004500261
NOTE
l
An LED, not a bulb, is used in the high-moun-
ted stop lamp.
Contact a MITSUBISHI MOTORS Author-
ized Service Point when there is a need for re-
pair or replacement.
Licence plate lamps
E01004600679
1. Remove while pressing the lamp unit (A) to
the left side of the vehicle.
2. Insert a minus screwdriver with the end cov-
ered with a cloth or other object to press the
hook (B) aside and remove the lens.
3. Remove the bulb from the socket.
4. To install the bulb, perform the removal
steps in reverse.
NOTE
l
When installing the lamp unit, first insert the
end of tab (C) and then align tab (D).
Maintenance
8-33
8
