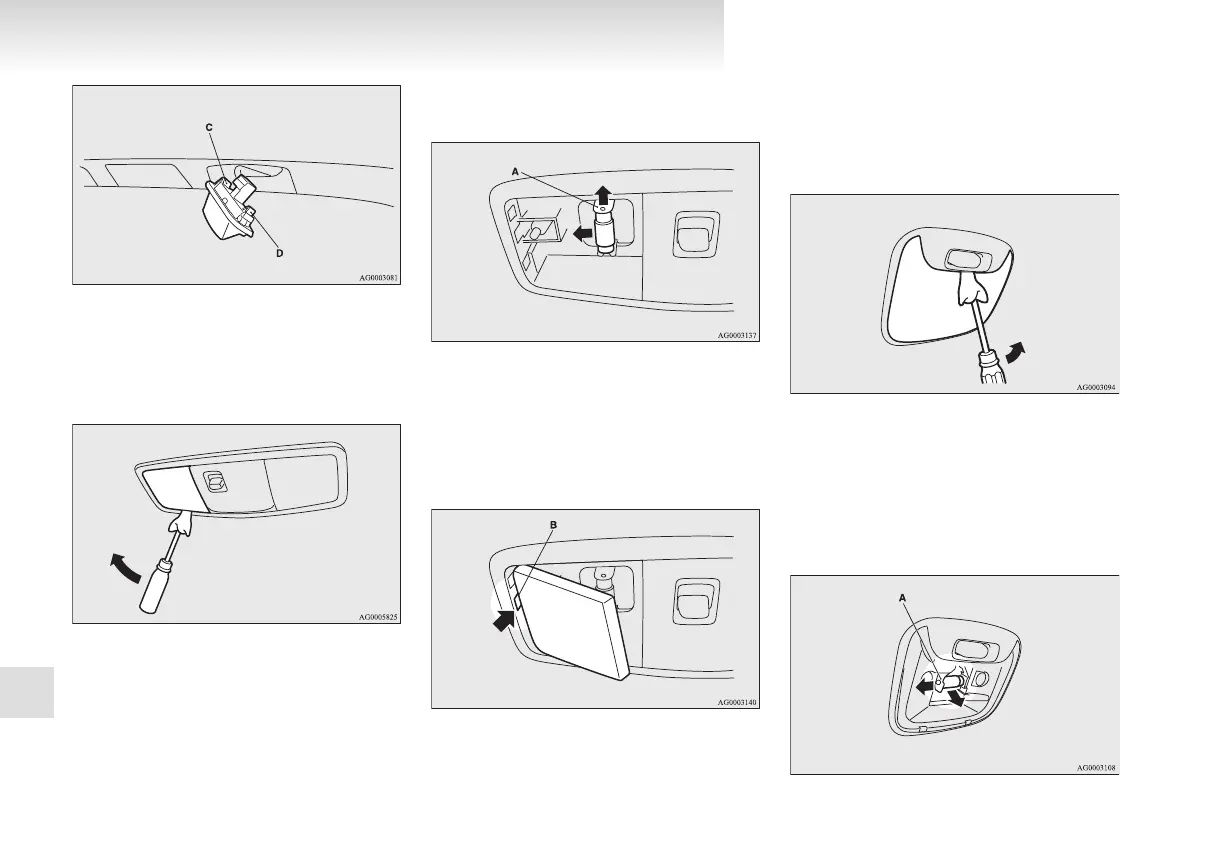

Map & room lamps (front)
E01005000087
1. Insert a minus screwdriver with the end cov-
ered with a cloth or other object to prise out
the lens.
NOTE
l
When replacing the bulb, put the map &
room lamp (front) switch in the OFF position.
2. While holding down the tab (A), pull out the
bulb.
3. To install the bulb, perform the removal
steps in reverse.
NOTE
l
When installing the lens, align the hooks (B)
to the holes in the vehicle body.
Room lamp (rear)/luggage room lamp
E01005300442
1. Insert a minus screwdriver with the end cov-
ered with a cloth or other object into the cut
out area of the lens to wedge out the lens.
NOTE
l
When replacing the bulb, put the room lamp
(rear)/luggage area lamp switch in the “OFF”
position.
2. While holding down the tab (A), pull out the
bulb.
Maintenance
8-34
