Outdoor unit capacity is displayed as function code.
Model name function code
PEH-7
PEH-8
PEH-10
20
20
25
–39 - 88
(When 0 °C or lower, “–”and temperature are displayed
alternately.)
When there are no indoor units, “00” is displayed.
–39 - 88
(When 0 °C or lower, “–”and temperature are displayed
alternately.)
When there are no indoor units, “00” is displayed.
–39 - 88
(When 0 °C or lower, “–”and temperature are displayed
alternately.)
When there are no indoor units, “00” is displayed.
–39 - 88
(When 0 °C or lower, “–”and temperature are displayed
alternately.)
When there are no indoor units, “00” is displayed.
8 - 39.5
When there are no indoor units, “00” is displayed.
17 - 30
When there are no indoor units, “00” is displayed.
Outdoor unit set
information 1
Outdoor unit set
information 2
Indoor unit piping
temperature (TH2)
Indoor 1
–39 - 88
Indoor unit piping
temperature (TH2)
Indoor 2
–39 - 88
Indoor unit piping
temperature (TH2)
Indoor 3
–39 - 88
Indoor unit piping
temperature (TH2)
Indoor 4
–39 - 88
Indoor intake tem-
perature
8 - 39.5
Indoor set temperature
17 - 30
Code display
Code display
°C
°C
°C
°C
°C
°C
OFF
ON
123456
OFF
ON
123456
OFF
ON
123456
OFF
ON
123456

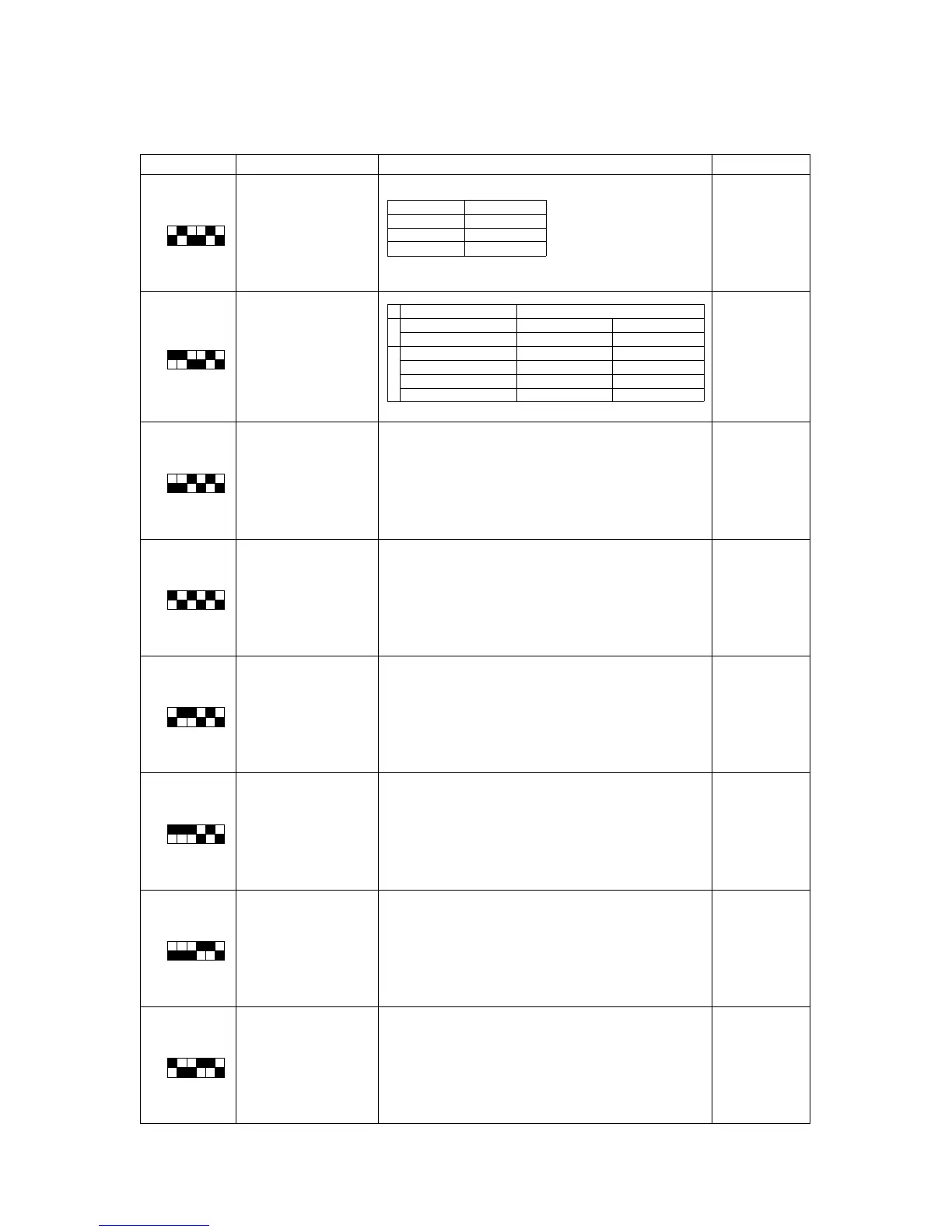

SW2 setting Display contents Description of display Unit
Outdoor unit set information 1 Function setting (display valves)
3-phase power source detection Do (1) Do not (0)
Cooling only switching Cooling only (2) H/P (0)
Night mode Night mode (1) Normal mode (0)
Defrosting end time
20 °C continuous 2 minutes (2) 8 °C continuous 2 minutes (0)
Low noise mode
Fixed
(8)
T
Low noise No
raining
(0)
Defrosting prohibit time (4) (0)
Tens digit
Units digit
Set information display values are added and displayed at each position.
OFF
ON
123456
OFF
ON
123456
OFF
ON
123456
OFF
ON
123456
