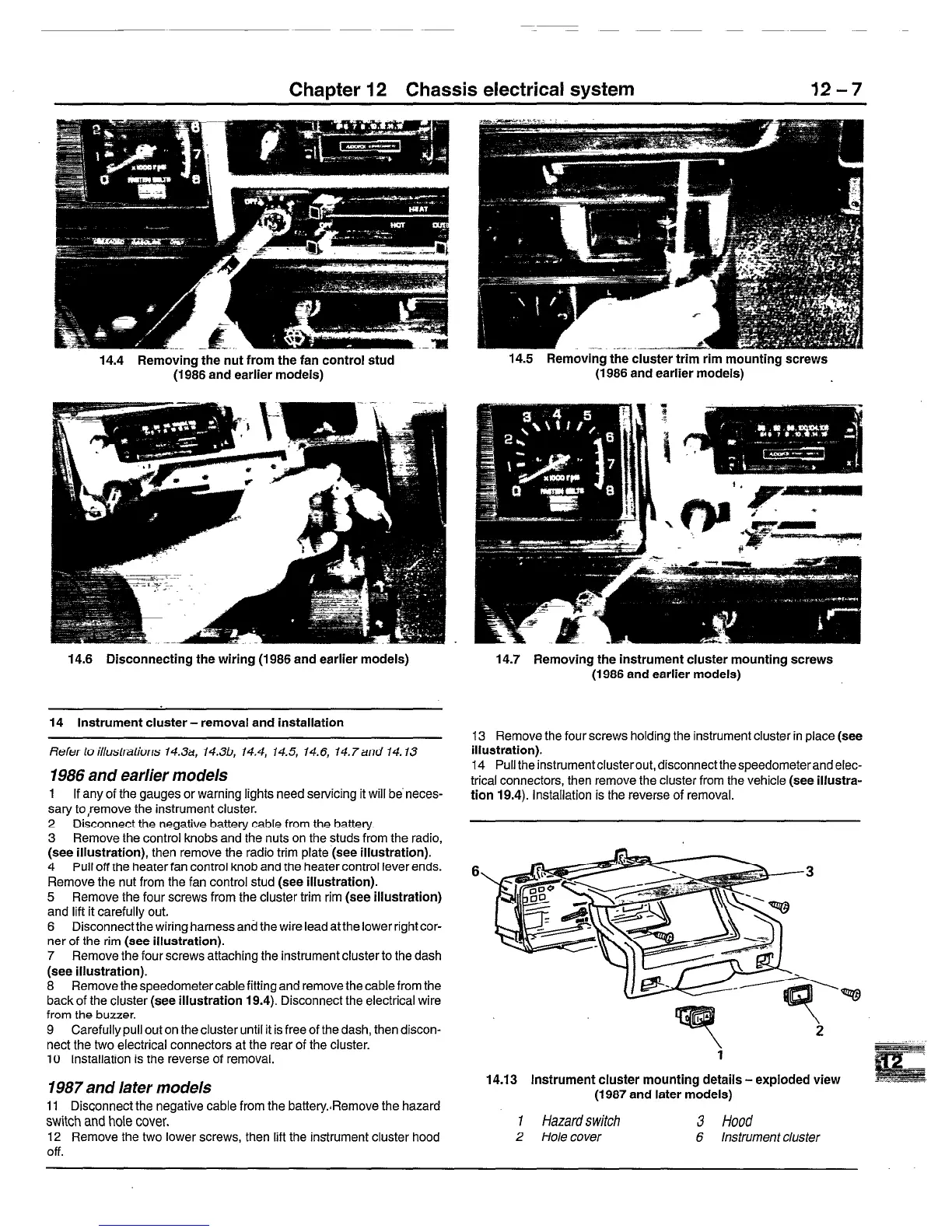

Chapter 12 Chassis electrical system
12-7
14.4 Removingthe nut from the fan control stud
(1988 and earlier models)
14.8 Disconnecting the wiring (1986 and earlier models)
14 Instrument cluster-removal and installation
Refer to illustrations 14.3a, 14.3b, 14.4, 14.5, 14.6, 14.7and 14.13
1986 and earlier models
1 If any of the gauges or warning lights need servicing it will be‘neces-
sary to,remove the instrument cluster.
2 Disconnect the negative battery cable from the battery.
3 Remove the control knobs and the nuts on the studs from the radio,
(see illustration), then remove the radio trim plate (see illustration).
4 Pull off the heater fan control knob and the heater control lever ends.
Remove the nut from the fan control stud (see illustration).
5 Remove the four screws from the cluster trim rim (see illustration)
and lift it carefully out.
6 Disconnectthe wiring harness and the wire lead atthe lower rightcor-
ner of the rim (see illustration).
7 Remove the four screws attaching the instrument cluster to the dash
(see illustration).
8 Remove the speedometer cable fitting and remove the cable from the
back of the cluster (see illustration 19.4). Disconnect the electrical wire
from the buzzer.
9 Carefully pull out on the cluster until it is free of the dash, then discon-
nect the two electrical connectors at the rear of the cluster.
10 Installation is the reverse of removal.
1987 and later models
11 Disconnect the negative cable from the battery..Remove the hazard
switch and hole cover.
12 Remove the two lower screws, then lift the instrument cluster hood
Off.
14.5 Removing the cluster trim rim mounting screws
(1986 and earlier models)
14.7 Removing the instrument cluster mounting screws
(1986 and earlier models)
13 Remove the four screws holding the instrument cluster in place (see
illustration).
14 Pull theinstrumentclusterout, disconnectthespeedometerandelec-
trical connectors, then remove the cluster from the vehicle (see illustra-
tion 19.4). Installation is the reverse of removal.
6
14.13 Instrument cluster mounting details-exploded view
(1987 and later models)
1 Hazard switch
2
Hole cover
3 Hood
6 Instrument cluster
