Chapter 3 Cooling, heating and air conditioning systems

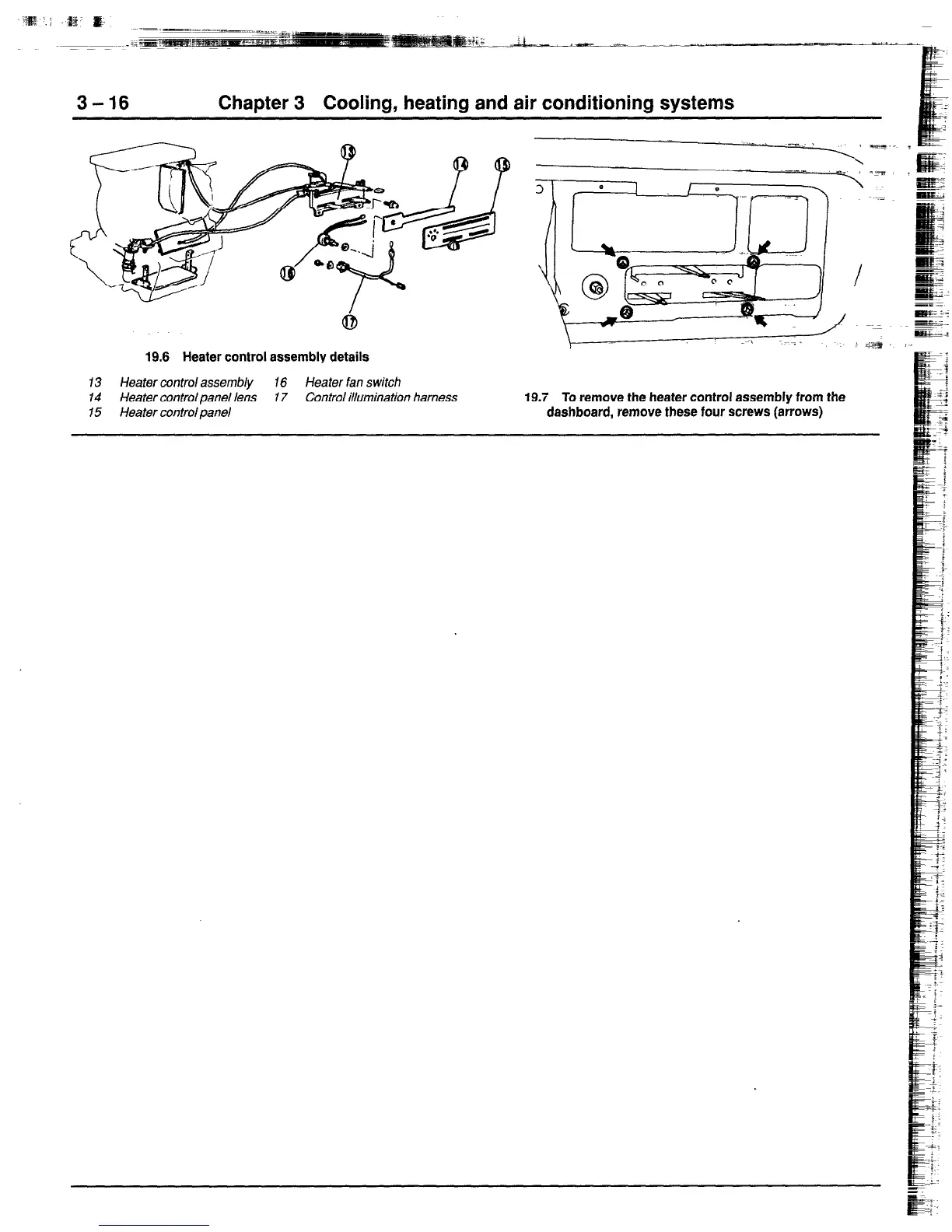

19.6 Heater control assembly details
13 Heater control assembly
16 Heater fan switch
14 Heater control panel lens
17 Control illumination harness 19.7 To remove the heater control assembly from the
15 Heater control panel
dashboard, remove these four screws [arrows)
