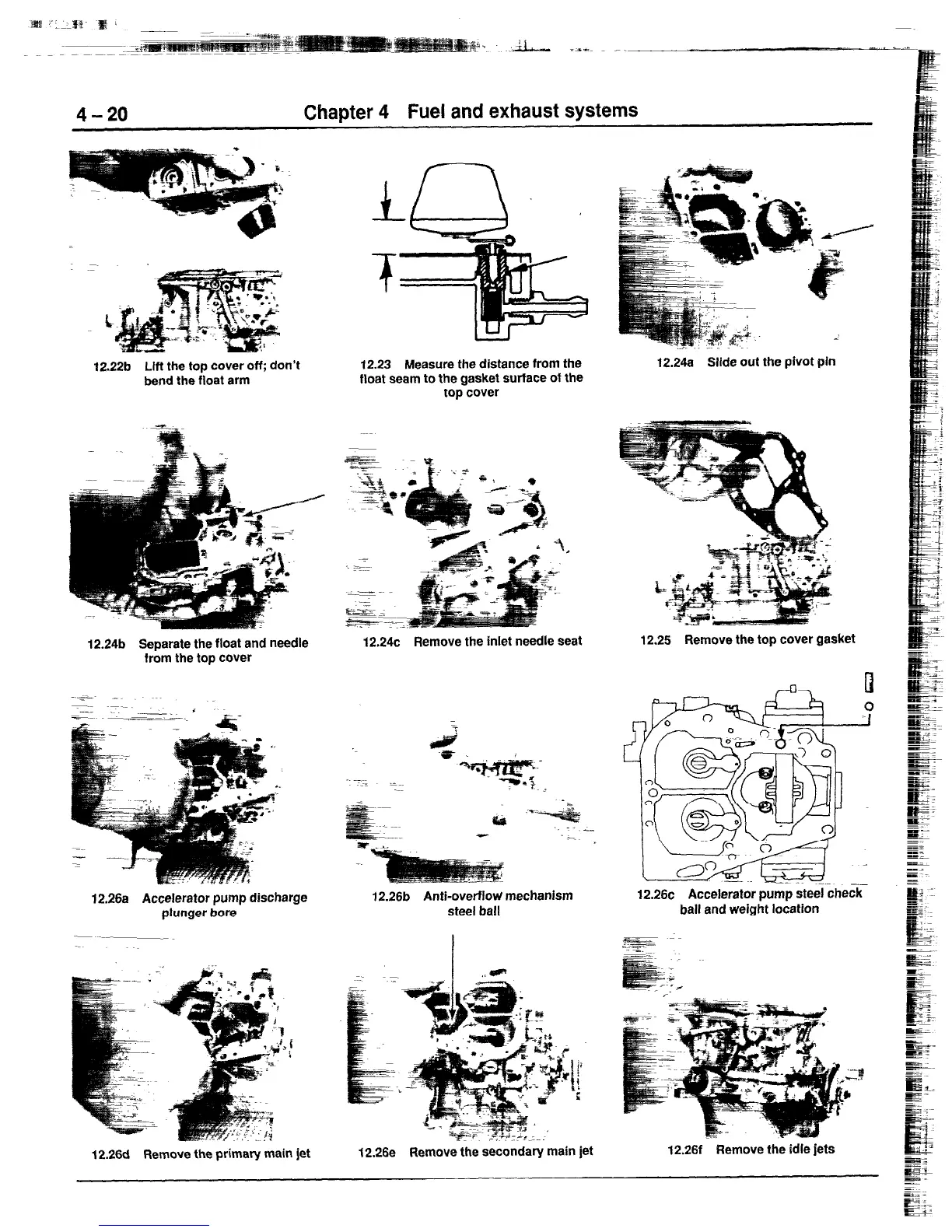

4-20
Chapter 4
Fuel and exhaust systems
12.22b Lift the top cover off;
dOn’t
bend the float arm
12.24b Separate the float and needle
from the top cover
12.26a Accelerator pump discharge
plunger bore
12.264 Remove the primary main jet
12.23 Measure the distance from the
float seam to the gasket surface of the
top cover
12.24~ Remove the inlet needle seat
12.26b Anti-overflow mechanism
steel ball
12.26e Remove the secondary main jel
12.24a Slide out the pivot pin
12.25 Remove the top cover gasket
12.26~ Accelerator pump steef che&-
ball and weight location
12.261 Remove the idle jets
