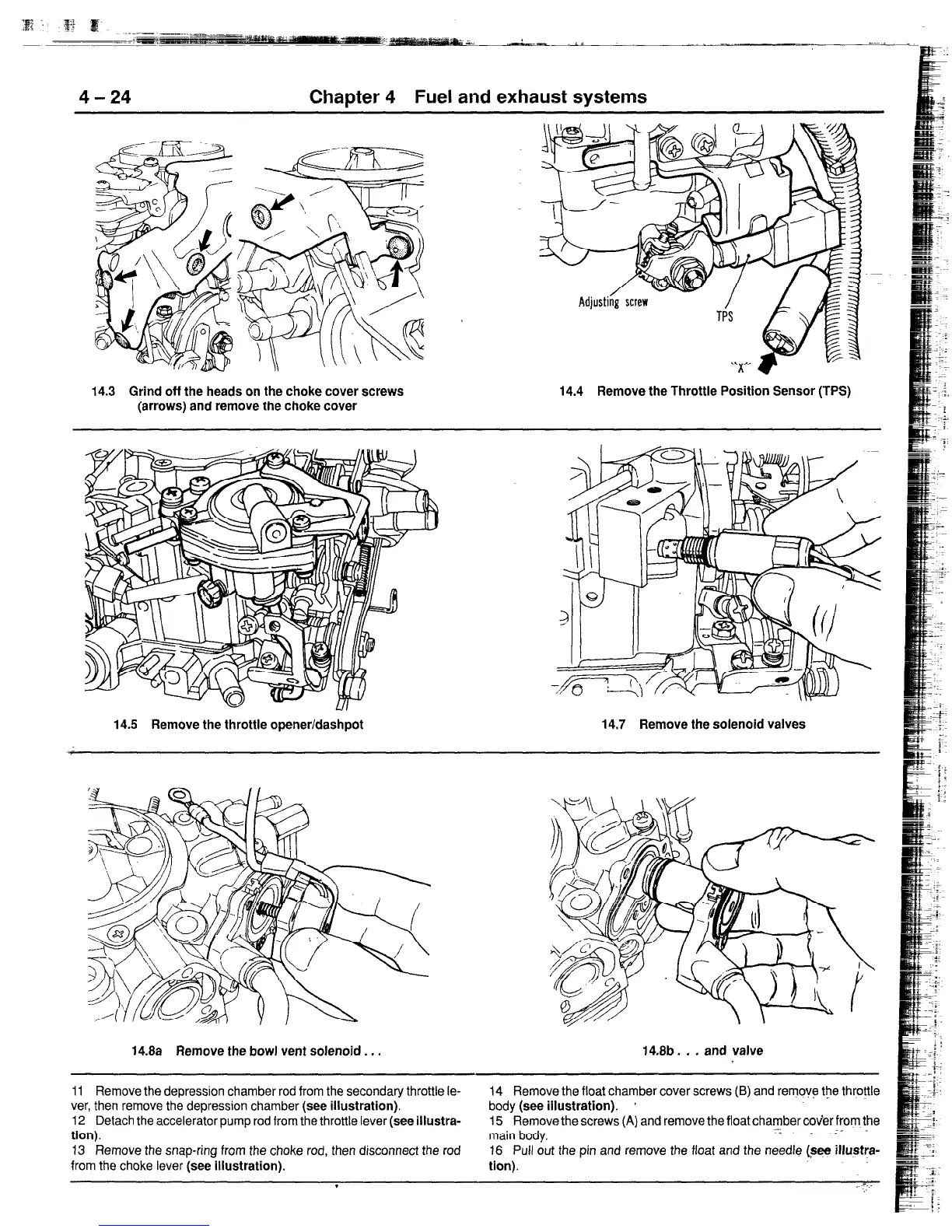

4-24 Chapter 4
Fuel and exhaust systems
14.3 Grind ott the heads on the choke cover screws
(arrows) and remove the choke cover
14.4
Remove the Throttle Position Sensor (TPS)
14.5 Remove the throttle openerfdashpot
14.7 Remove the solenoid valves
14.8a Remove the bowl vent solenoid.. .
14.8b. . . and valve
11 Remove the depression chamber rod from the secondary throttle le-
vet’, then remove the depression chamber
(see illustration).
12 Detach the accelerator pump rod from the throttle lever
(see illustra-
tlon).
13 Remove the snap-ring from the choke rod, then disconnect the rod
from the choke lever
(see illustration).
14 Remove the float chamber cover screws (B) and remor/? the throttle
body
(see illustration).
’
15 Remove the screws (A) and remove the float chamber cover from the
-.
main body.
16 Pull out the pin and remove the float and the needle
(see illustra-
tion).
