Mitsubishi Pick-Up 1987 User Manual

Chapter 4 Fuel and exhaust systems
4-41
22.1
I
2
3
4
5
6
7
8
9
IO
11
12
13
14

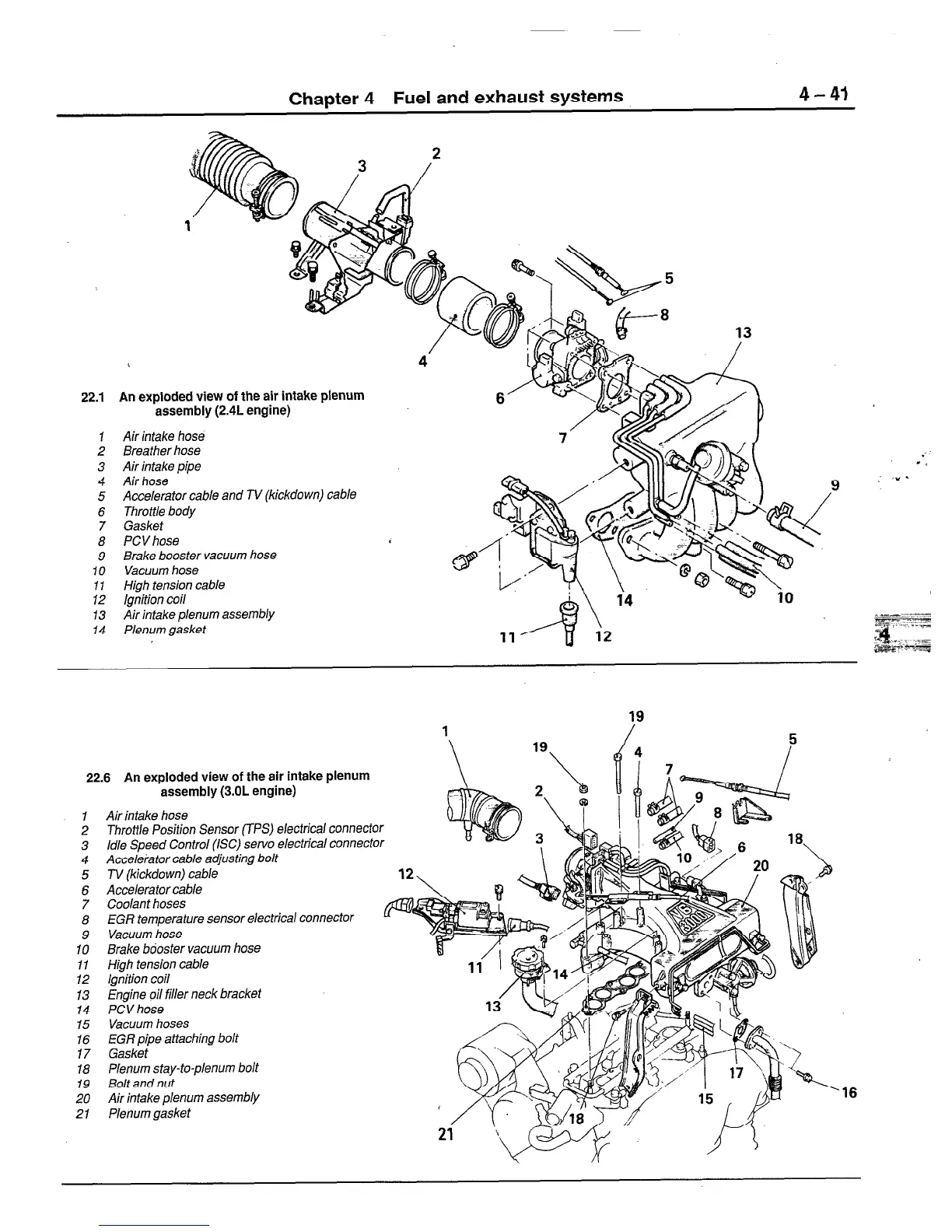

An exploded view of the air intake plenum
assembly (2.4L engine)
Air intake hose
Breather hose
Air intake pipe
Air hose
Accelerator cable and TV (kickdown) cable
Throttle body
Gasket
PCVhose
Brake booster vacuum hose
Vacuum hose
High tension cable
Ignition coil
Air intake plenum assembly
Plenum gasket
-
22
1
2
3
4
5
6
7
8
9
10
II
12
13
14
15
16
17
18
19
20
21
.6 An exploded view of the air intake plenum
assembly (3.OL engine)
Air intake hose
Throttle Position Sensor (TPS) electrical connector
Idle Speed Control (KC) servo electrical connector
Accelerator cable adjusting bolt
TV (kickdown) cable
Accelerator cable
Coolant hoses
EGR temperature sensor electrical connector
Vacuum hose
Brake booster vacuum hose
High tension cable
Ignition coil
Engine oil filler neck bracket
PCV hose
Vacuum hoses
EGR pipe attaching bolt
Gasket
Plenum stay-to-plenum bolt
Bolt and nut
Air intake plenum assembly
Plenum gasket
1A
16
