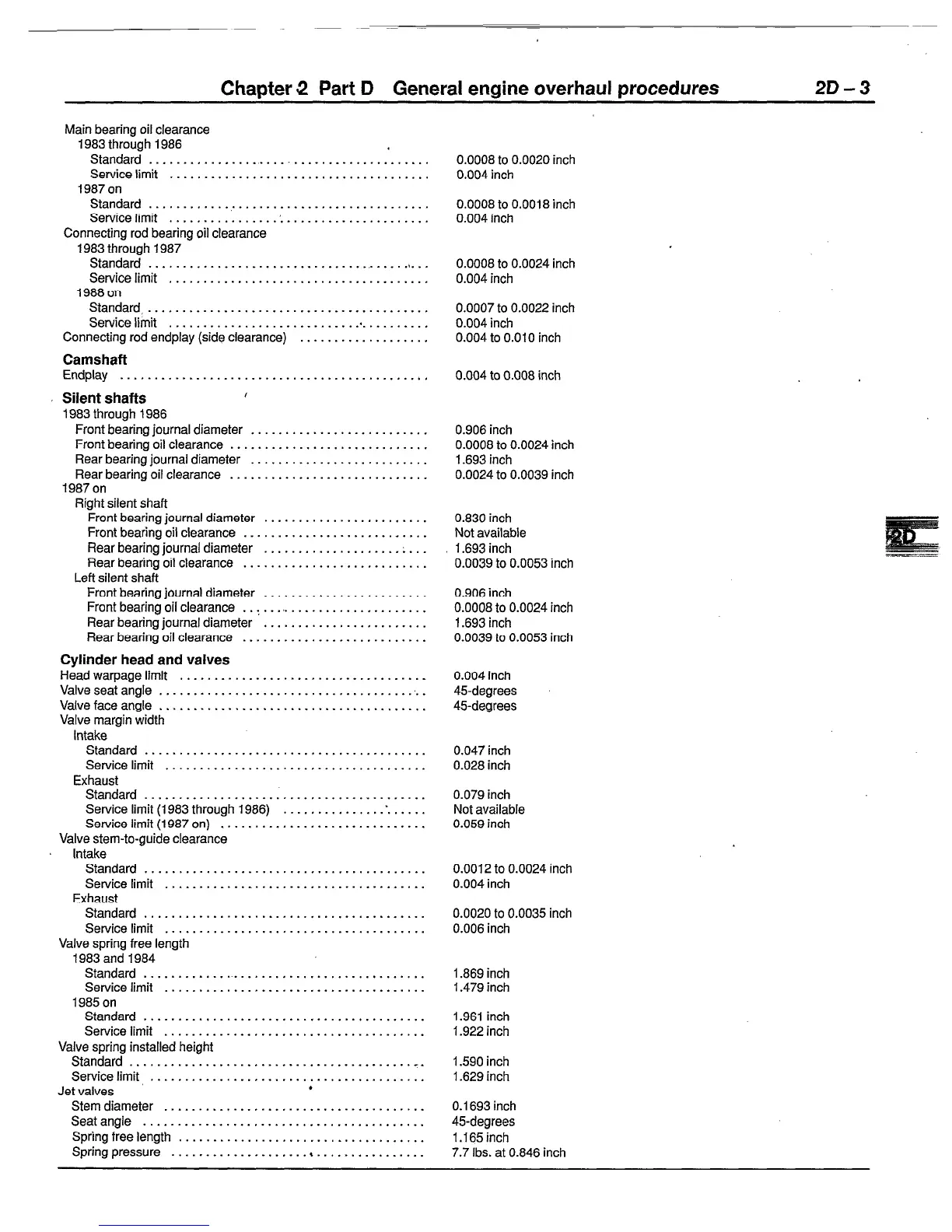

Chanter 2 Part D General encline overhaul procedures 2D-3
Main bearing oil clearance
1983 through 1986
Standard . ................................. . ......
Servicelimit ......................................
1987 on
Standard .........................................
Service limit .......................................
Connecting rod bearing oil clearance
1983 through 1987
Standard ............. .._....................... ...
Servicelimit ......................................
1988 on
Standard ..........................................
Service limit .......................................
Connecting rod endplay (side clearance) ...................
Camshaft
Endplay .............................................
Silent shafts
I
1983 through 1986
Front bearing journal diameter ..........................
Front bearing oil clearance .............................
Rear bearing journal diameter ..........................
Rear bearing oil clearance .............................
1987 on
Right silent shaft
Front bearing journal diameter ........................
Front bearing oil clearance ...........................
Rear bearing journal diameter .................... ; ...
Rear bearing oil clearance ...........................
Left silent shaft
Front bearing journal diameter ........................
Front bearing oil clearance ..: .........................
Rear bearing journal diameter ........................
Rear bearing oil clearance ...........................
Cylinder head and valves
Head warpage limit ....................................
Valve seat angle ........................................
Valvefaceangte .......................................
Valve margin width
Intake
Standard .........................................
Servicelimit ......................................
Exhaust
Standard .........................................
Service limit (1983 through 1986) ......................
Service limit (1987 on) ..............................
Valve stem-to-guide clearance
Intake
Standard .........................................
Servicelimit ......................................
Exhaust
Standard .........................................
Servicelimit ......................................
Valve spring free length
1983and1984
Standard .........................................
Serviceiimit ......................................
1985 on
Standard .........................................
Servicelimit ......................................
Valve spring installed height
Standard ....................................... .._.
Servicelimit ........................................
Jet valves
L
Stem diameter ......................................
Seatangle .........................................
Springfreelength ....................................
Springpressure .................... . ................
0.0008 to 0.0020 inch
0.004 inch
0.0008 to 0.0018 inch
0.004 inch
0.0008 to 0.0024 inch
0.004 inch
0.0007 to 0.0022 inch
0.004 inch
0.004 to 0.010 inch
0.004 to 0.008 inch
0.906 inch
0.0008 to 0.0024 inch
1.693 inch
0.0024 to 0.0039 inch
0.830 inch
Not available
1.693 inch
0.0039 to 0.0053 inch
0.906 inch
0.0008 to 0.0024 inch
1.693 inch
0.0039 to 0.0053 inch
0.004 inch
45-degrees
45-degrees
0.047 inch
0.028 inch
0.079 inch
Not available
0.059 inch
0.0012 to 0.0024 inch
0.004 inch
0.0020 to 0.0035 inch
0.006 inch
1.869 inch
1.479 inch
1.961 inch
1.922 inch
1.590 inch
1.629 inch
0.1693 inch
45-degrees
1.165 inch
7.7 Ibs. at 0.846 inch
