Chapter 2 Part D General engine overhaul procedures
2D-13

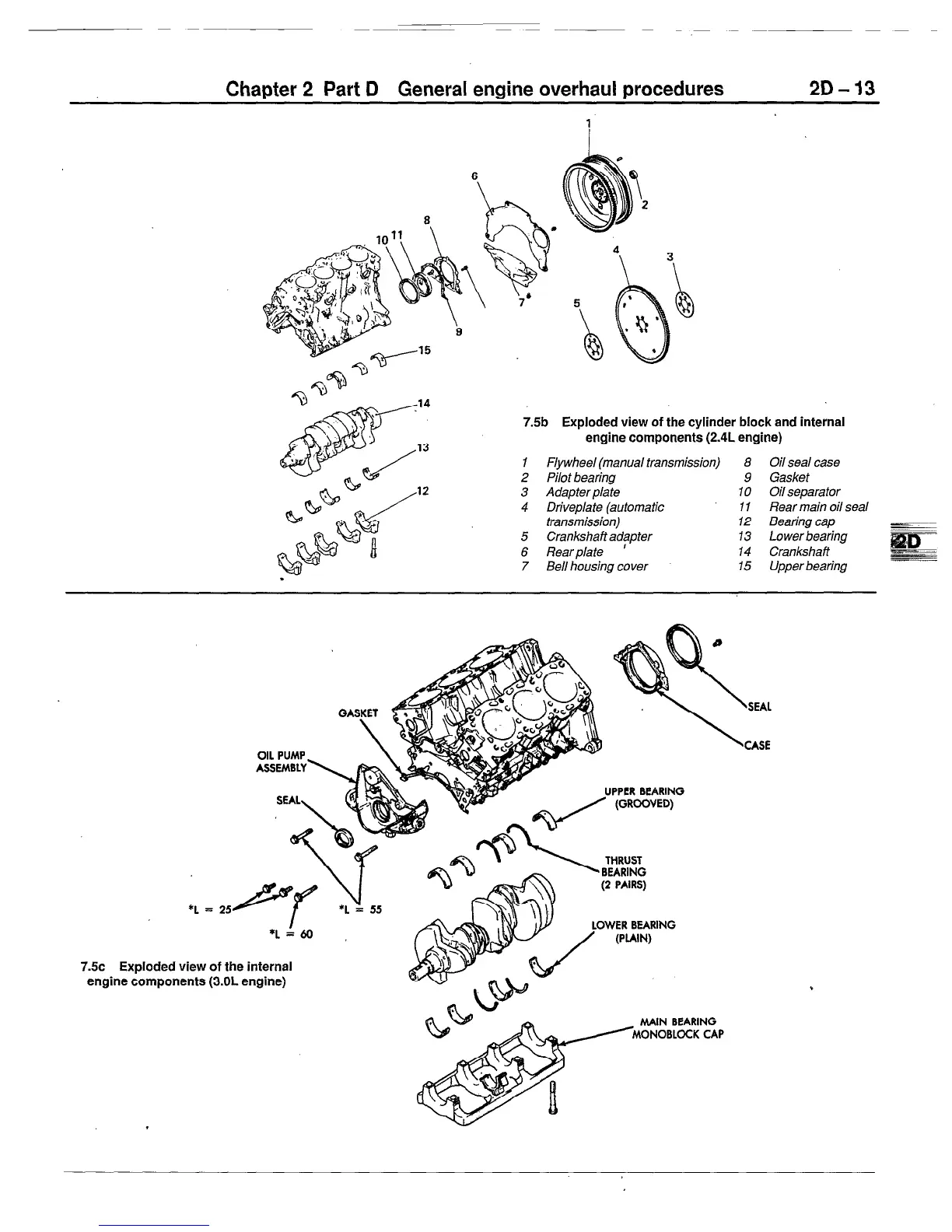

7.5b Exploded view of the cylinder block and internal
engine components (2.4L engine)
I Flywheel (manual transmission) 8 Oil seal case
2 Pilot bearing 9 Gasket
3 Adapter plate 10 Oil separator
4 Driveplate (automatic II Rear main oil seal
transmission) 12
Bearing cap
5 13 Lower bearing
6
Crankshaft ad?pter
Rear plate 14 Crankshaft
7 Bell housing cover 15 Upper bearing
UPPER BEARING
/ (GROOVED1
7.5~ Exploded view of the internal
engine components (3.OL engine)
BEARING
BLOCK CAP
