2A-20
Chapter 2 Part A
2.6L four-cylinder engine

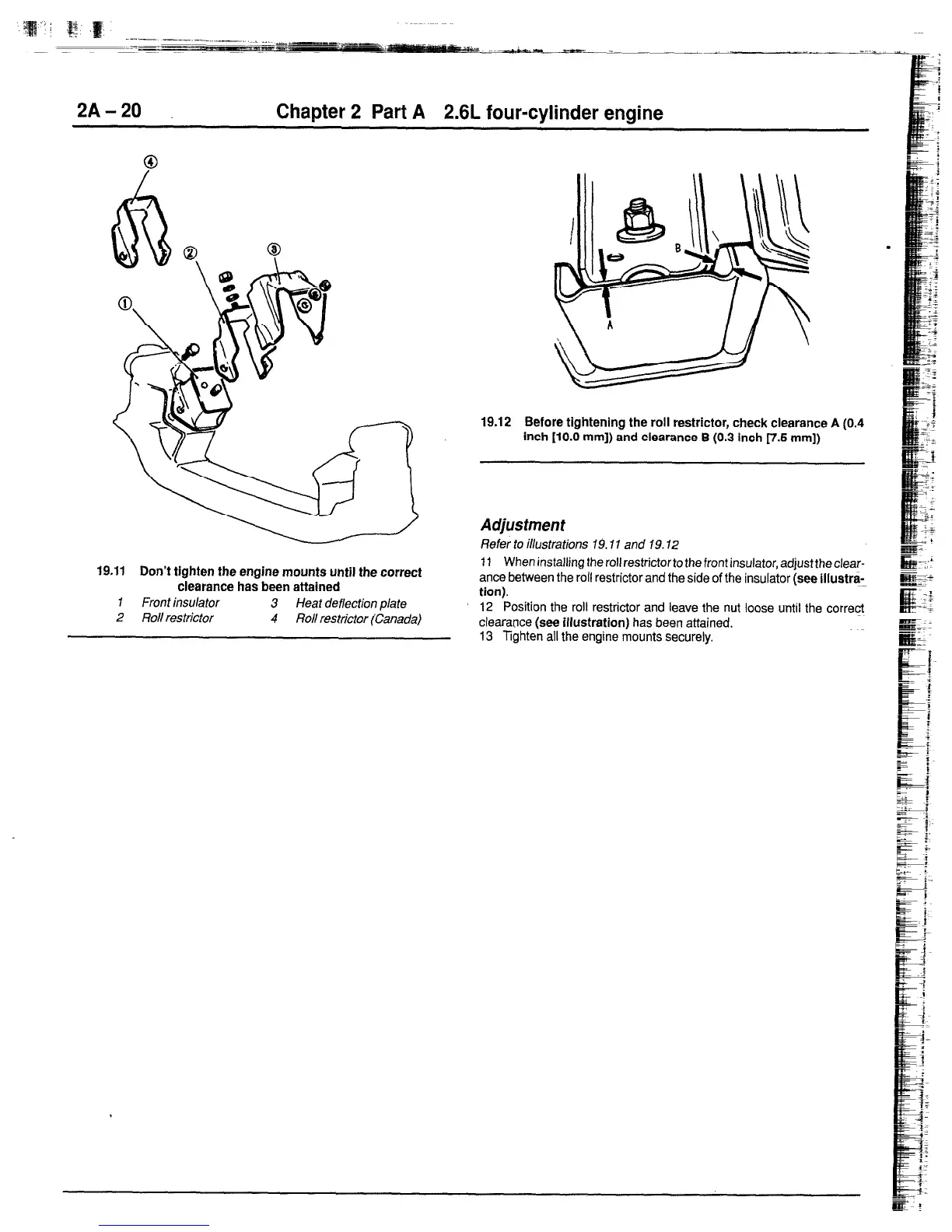

19.11 Don’t tighten the engine mounts until the correct
clearance has been attained
1
Front insulator 3 Heat deflection plate
2 RON restrictor 4 Roll restrfctor (Canada)
19.12
Before tightening the roll restrictor, check clearance A (0.4
inch [lO.O mm]) and clearance B (0.3 inch f7.5 mm])
Refer to illustrations 19.11 and 19.12
11 When installing
the
roll restrictor to the front insulator, adjust the clear-
ance between the roll restrictor and the side of the insulator (see
illustra-
tion).
12 Position the roll restrictor and leave the nut loose until the correct
clearance
(see illustration)
has been attained.
13 Tighten all the engine mounts securely.
