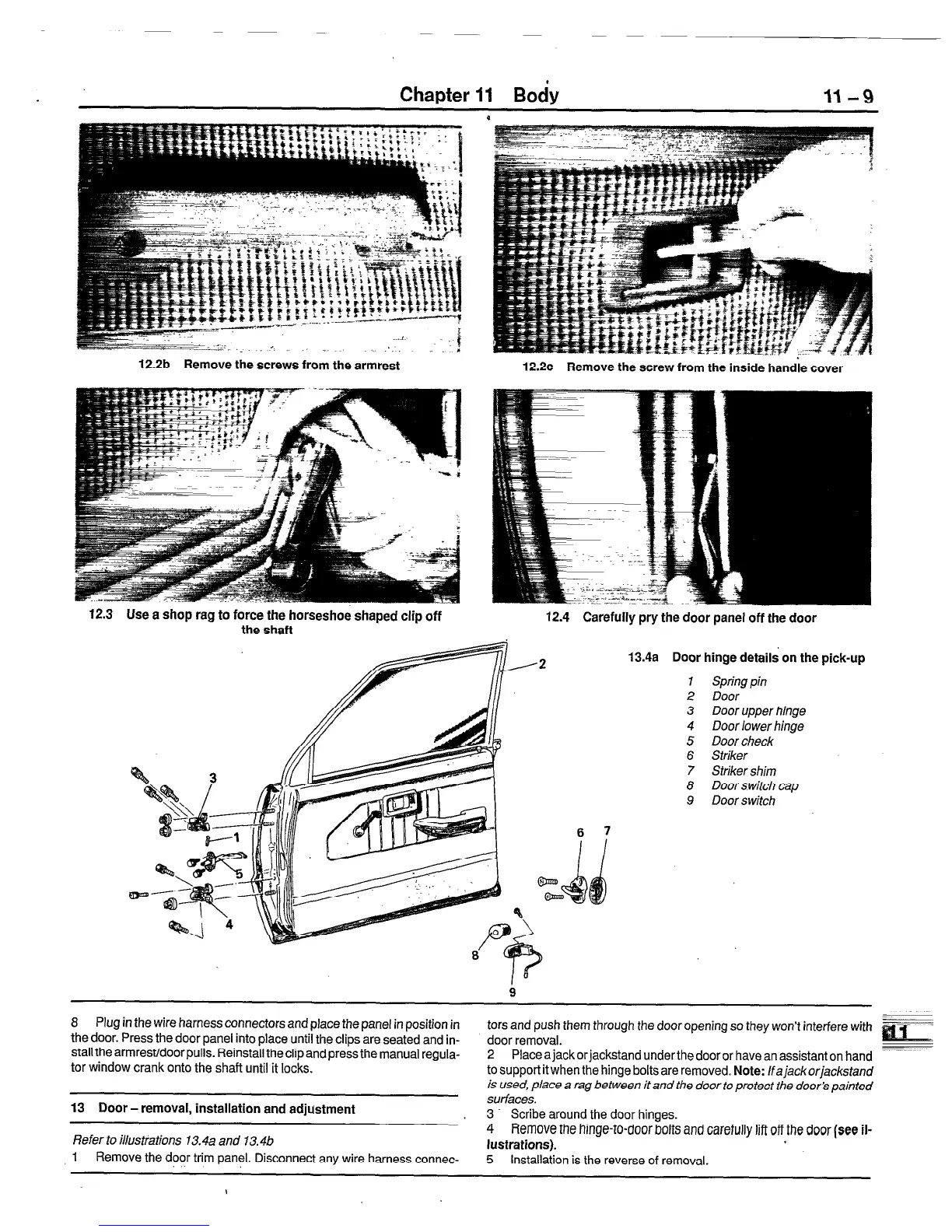

Chapter 11 Body
e
12.2b Remove the screws from the armrest
12.2~ Remove the screw from the inside handle cover
12.3 Use a shop rag to force the horseshoe shaped clip off
the shaft
12.4 Carefully pry the door panel off the door
13.4a Door
1
hinge details on the pick-up
Spring pin
Door
Door upper hinge
Door lower hinge
Door check
Striker
Striker shim
Door switch cap
Door switch
8 Plug in the wire harness connectors and place the panel in position in
the door. Press the door panel into place until the clips are seated and in-
tors and push them through the door opening so they won’t interfere with
door removal.
stallthearmrest/doorpulls. Reinstall theclipandpressthe manual regula-
tor window crank onto the shaft until it locks.
2 Place ajackorjackstand under the door or have an assistant on hand
to support it when the hinge bolts are removed.
Note:
lfajack orjackstand
is used, place a rag between it and the door to protect the door’s painted
13 Door - removal, installation and adjustment
surfaces.
3 Scribe around the door hinges.
4
Refer to illustrations 13.4a and 13.4b
Remove the hinge-to-door bolts and carefully lift off the door (see
il-
lustrations).
1 Remove the door trim panel. Disconnect any wire harness connec-
5 Installation is the reverse of removal.
