Mitsubishi PLA-A12BA

95

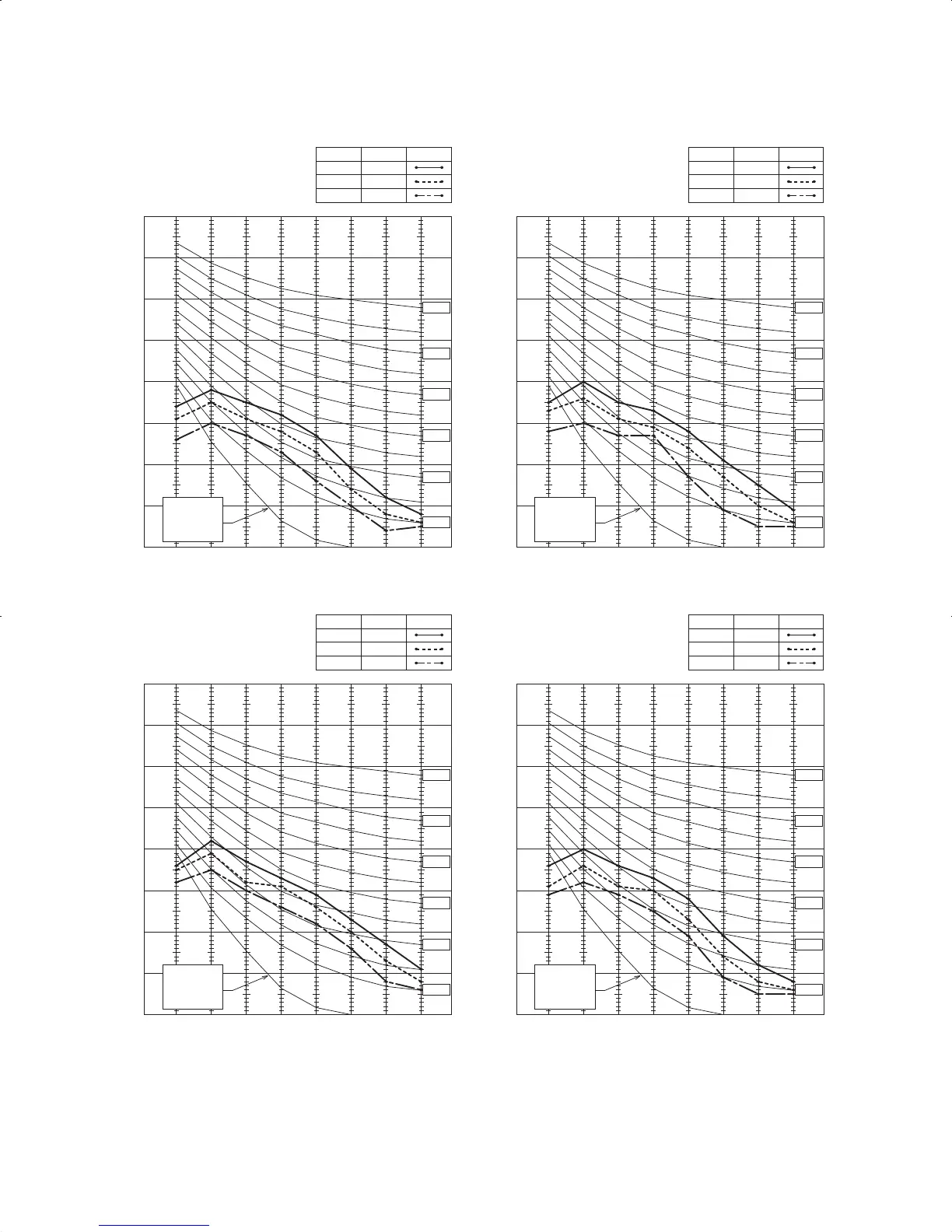

PEAD-A36AA
External static pressure : 100Pa
High
Middle
44.0
SPL(dB)
40.0
Low
36.0
LINE
<60Hz>
NOTCH
PEAD-A36AA
External static pressure : 70Pa
High
Middle
43.0
SPL(dB)
39.0
Low
34.0
LINE
<60Hz>
NOTCH
90
80
70
60
50
40
30
20
10
63 125 250 500 1000 2000 4000 8000
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 µbar)
BAND CENTER FREQUENCIES, Hz
90
80
70
60
50
40
30
20
10
63 125 250 500 1000 2000 4000 8000
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 µ
BAND CENTER FREQUENCIES, Hz
PEAD-A42AA
External static pressure : 35Pa
High
Middle
44.0
SPL(dB)
40.0
Low
36.0
LINE
<60Hz>
NOTCH
PEAD-A36AA
External static pressure : 150Pa
High
Middle
45.0
SPL(dB)
42.0
Low
38.0
LINE
<60Hz>
NOTCH
90
80
70
60
50
40
30
20
10
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 µbar)
90
80
70
60
50
40
30
20
10
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 µbar)
63 125 250 500 1000 2000 4000 8000
BAND CENTER FREQUENCIES, Hz
63 125 250 500 1000 2000 4000 8000
BAND CENTER FREQUENCIES, Hz
NOTE: The sound level is measured in an anechoic room where echoes are few, when compressor stops. The sound
may be bigger than displayed level under actual installation condition by surrounding echoes. The sound level
can be higher by about 2 dB than the displayed level during cooling and heating operation.
