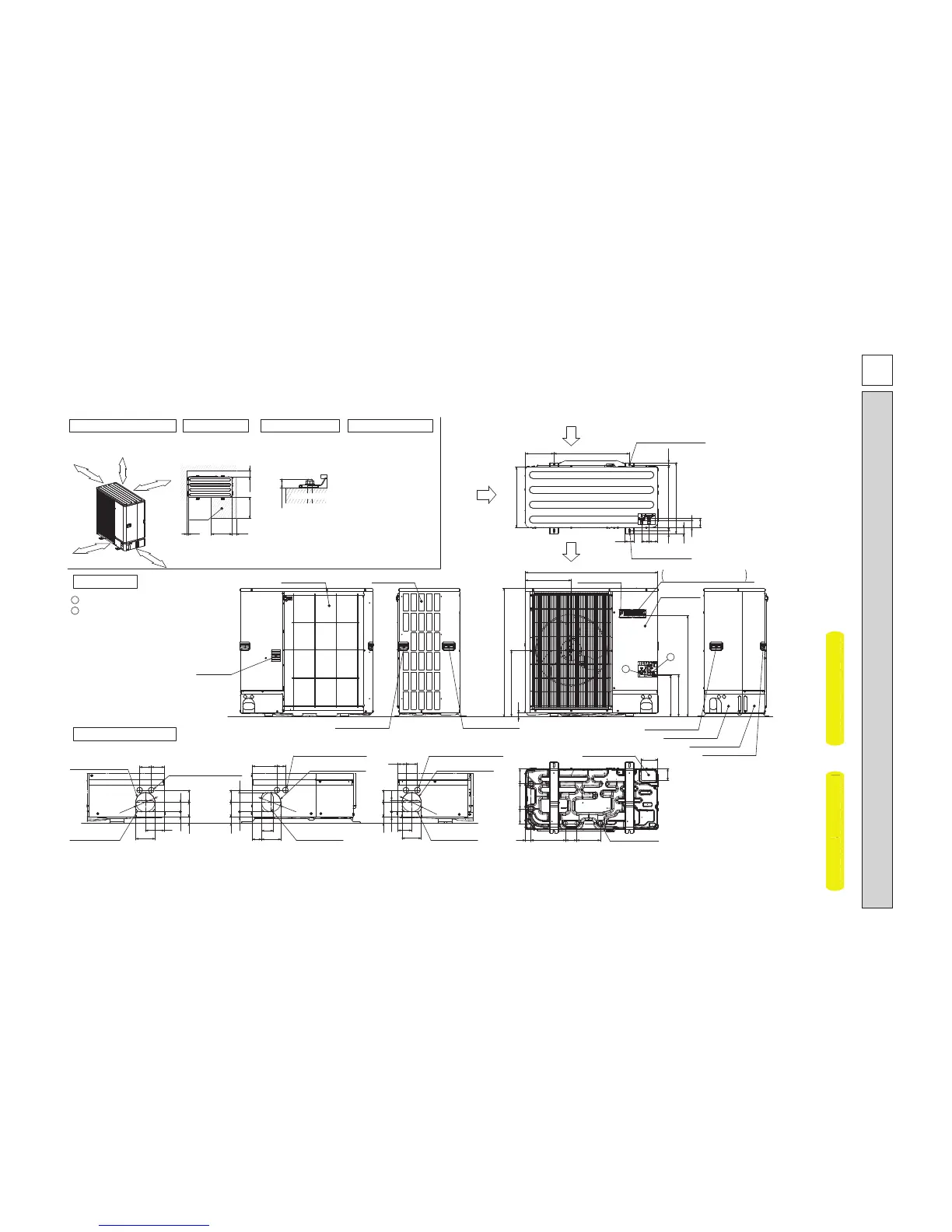

OUTLINES AND DIMENSIONS
PUHZ-SHW80VAA.UK PUHZ-SHW112VAA.UK PUHZ-SHW80YAA.UK PUHZ-SHW112YAA.UK PUHZ-SHW80VAA-BS.UK PUHZ-SHW112VAA-BS.UK PUHZ-SHW80YAA-BS.UK PUHZ-SHW112YAA-BS.UK PUHZ-SW75VAA.UK PUHZ-SW100VAA.UK PUHZ-SW75YAA.UK PUHZ-SW100YAA.UK PUHZ-SW75VAA-BS.UK PUHZ-SW100VAA-BS.UK PUHZ-SW75YAA-BS.UK PUHZ-SW100YAA-BS.UK
Unit: mm
FRONT PIPING COVER
REAR PIPING COVER
HANDLE FOR MOVING
HANDLE FOR MOVING
AIR INTAKE
REAR AIR INTAKE
HANDLE FOR MOVINGHANDLE FOR MOVING
SIDE AIR INTAKE
DRAIN HOLE(5X { 33)
BOTTOM PIPING HOLE
(KNOCK OUT)
120200116
43 276 88 188
95
134
INSTALLATION FEET
2XU SHAPED NOTCH HOLES
(FOUNDATION BOLT M10)
2X12X36 OVAL HOLES
(FOUNDATION BOLT M10)
SIDE AIR INTAKE
AIR DISCHARGE
REAR AIR INTAKE
( 19 )
520
480
600225
75 6959
28
56
72
53
567
FRONT TRUNKING HOLE
(KNOCK-OUT)
POWER SUPPLY WIRING HOLE
(2X
{ 27 KNOCK-OUT)
FRONT PIPING HOLE
(KNOCK-OUT)
55 62
5871
4625
30
92
90
{ 92
RIGHT PIPING HOLE
(KNOCK-OUT)
RIGHT TRUNKING HOLE
(KNOCK-OUT)
POWER SUPPLY WIRING HOLE
(2X
{ 27 KNOCK-OUT)
55
9244
40118
5830
9225
71
{ 92
POWER SUPPLY WIRING HOLE
(2X
{ 27 KNOCK-OUT)
REAR TRUNKING HOLE
(KNOCK-OUT)
REAR PIPING HOLE
(KNOCK-OUT)
5538
587130
5525
92
65
{
92
SERVICE PANEL
TERMINAL CONNECTION
LEFT
 POWER SUPPLY WIRING
RIGHT
 INDOOR / OUTDOOR WIRING
EARTH TERMINAL
1
2
*1 328
*1 336
*2 802
30
528
1020
363
1050
*2 INDICATION OF TERMINAL CONNECTION LOCATION.
2
1
REFRIGERANT GAS PIPE CONNECTION (FLARE) { 15.88(5/8F)
EXAMPLE OF NOTES
REFRIGERANT LIQUID PIPE CONNECTION (FLARE) { 9.52(3/8F)
INDICATION OF STOP VALVE CONNECTION LOCATION.
*1
OVER 50mm
OVER 15mm
OVER 1000mm
OVER 150mm
FREE
SERVICE
SPACE
OVER OVER OVER
OVER OVER
150500
5050015
<FOUNDATION BOLT HEIGHT>
FOUNDATION
LESS THAN
30
THE DIAGRAM BELOW SHOWS A BASIC EXAMPLE.
EXPLANATION OF PARTICULAR DETAILS ARE
GIVEN IN THE INSTALLATION MANUALS etc.
DIMENSIONS OF SPACE NEEDED
FOR SERVICE ACCESS ARE
SHOWN IN THE BELOW DIAGRAM.
PLEASE SECURE THE UNIT FIRMLY
WITH 4 FOUNDATION (M10) BOLTS.
(BOLTS AND WASHERS MUST BE
PURCHASED LOCALLY.)
1 FREE SPACE (AROUND THE UNIT) 2 SERVICE SPACE 3 FOUNDATION BOLTS 4 PIPING-WIRING DIRECTIONS
PIPING AND WIRING CONNECTIONS
CAN BE MADE FROM 4 DIRECTIONS:
FRONT,RIGHT,REAR AND BELOW.
PIPING KNOCK-OUT HOLE DETAILS
OCH651
PUHZ-SHW1
12YAA.UK
PUHZ-SHW80YAA.UK
