64
LI1, LI2, LI3, NI
POWER SUPPLY
LI1-LI2/LI-LI3/LI3-LI1 : 400 V AC input
LI1-NI/LI2-NI/LI3-NI : 230 V AC input
(Connect to the terminal block (TB1))
GD1
Connect to the earth
CNAC2
230 V AC
(Connect to the
outdoor controller
circuit board (CNAC))
CNDC
(Connect to the
outdoor controller
circuit board
(CNDC))
LO1, LO2, LO3
POWER SUPPLY
LO1-LO2/LO2-LO3/LO3-LO1: 400 V AC OUTPUT
(Connect to the outdoor power circuit board (TB-L1, TB-L2, TB-L3))
CNCT
Primary current
(Connect to the out-
door power circuit
board (CN5))
CNL
Connect to the ACL4
GD3
Connect to the earth

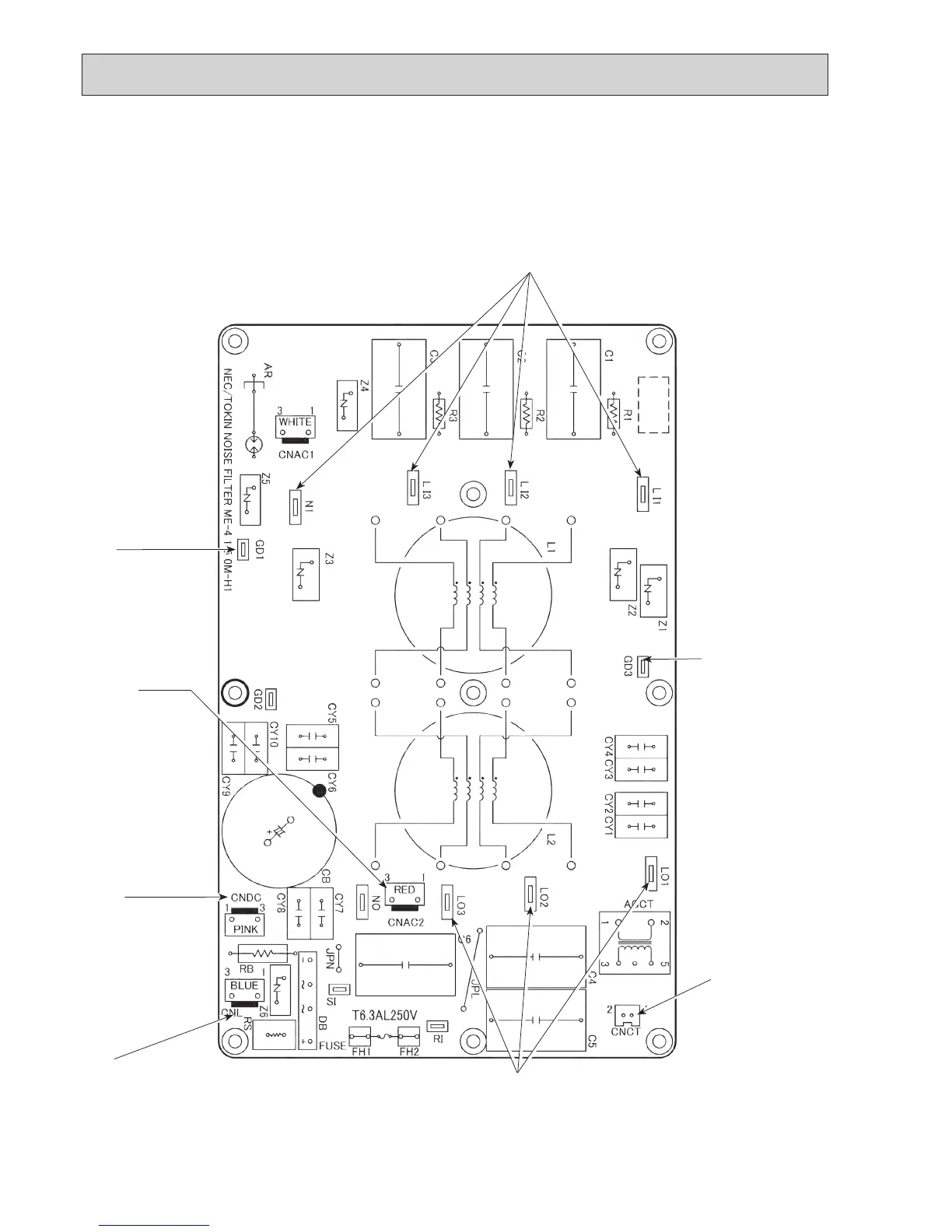

Outdoor noise filter circuit board
PUHZ-SP100YHA.UK
OCH566A
