65

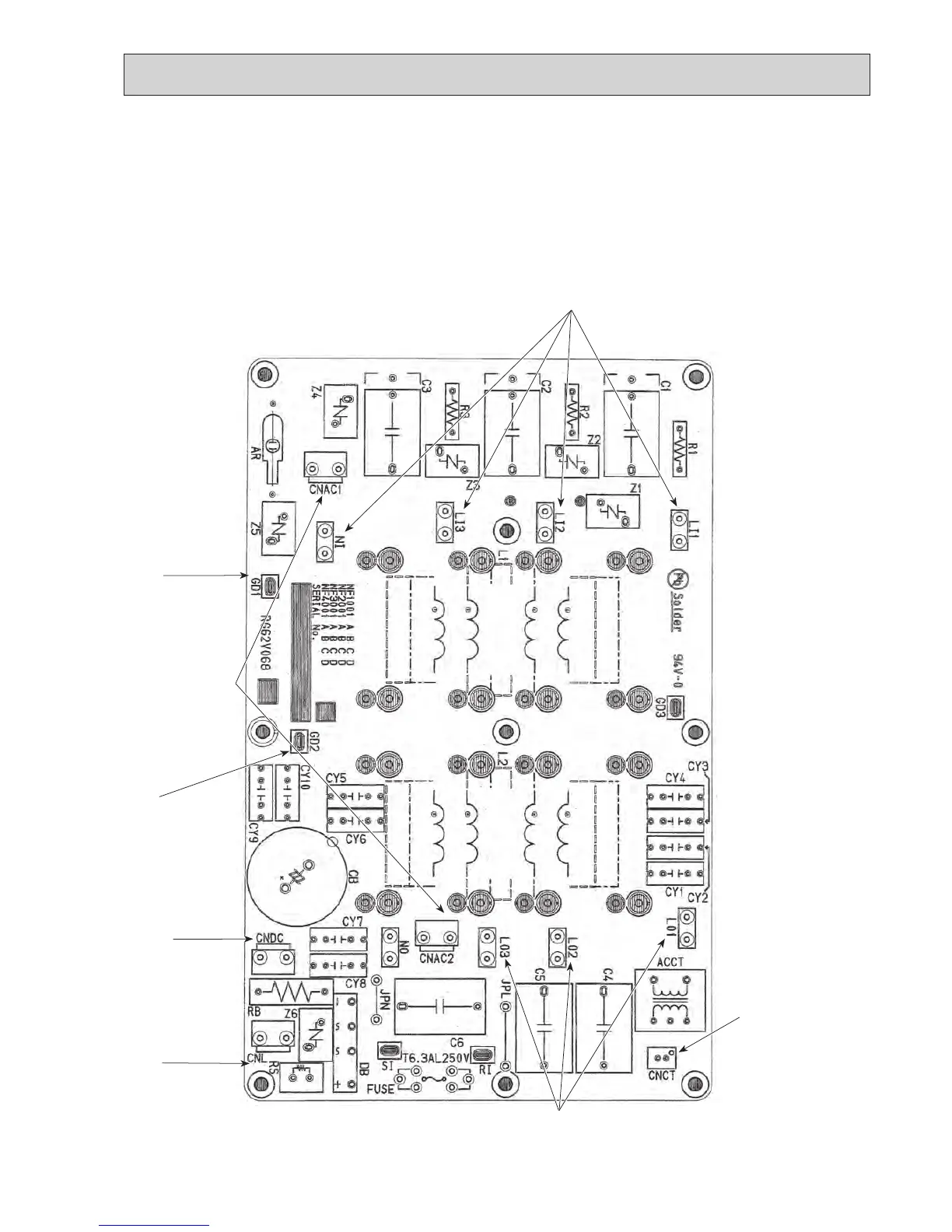

Outdoor noise filter circuit board
PUHZ-SP125YHA.UK PUHZ-SP140YHA.UK
LI1, LI2, LI3, NI
POWER SUPPLY
LI1-LI2/LI-LI3/LI3-LI1: 400 V AC input
LI1-NI/LI2-NI/LI3-NI: 230 V AC input
(Connect to the terminal block (TB1))
GD1
Connect to the earth
CNAC1, CNAC2
230 V AC
(Connect to the
outdoor controller
circuit board (CNAC))
CNDC
(Connect to the
outdoor controller
circuit board
(CNDC))
CNL
Connect to the
ACL4
GD2
Connect to the earth
LO1, LO2, LO3
POWER SUPPLY
LO1-LO2/LO2-LO3/LO3-LO1: 400 V AC OUTPUT
Connect to the outdoor power circuit board (TB1-L1, L2, L3)
CNCT
Primary current
(Connect to the
outdoor power
circuit board (CN5))
To Next Page
