4 SFC PROGRAM CONFIGURATION
MELSEC-Q

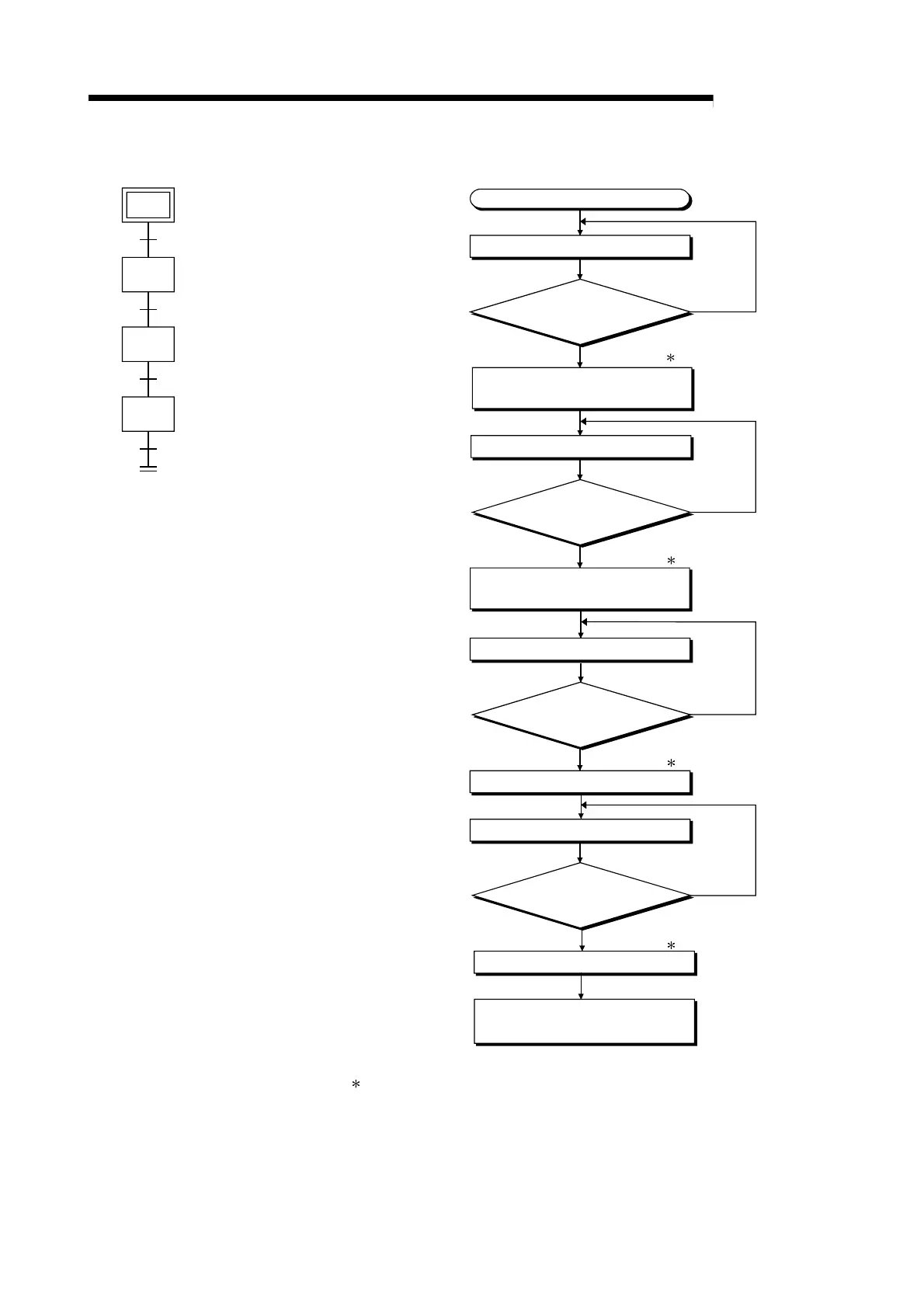

(2) Serial transition operation flowchart
Initial step
Transition condition “a”
Step 1
Transition condition “b”
Step 2
Transition condition “c”
Step 3
END step
Transition condition “d”
1
Operation status
Initial step operation output executed.
Transition condition “a” satisfied?
Initial step operation output
deactivated.
Step 1 operation output executed.
Transition condition “b” satisfied?
Step 1 operation output deactivated.
Step 2 operation output executed.
Transition condition “c” satisfied?
Step 2 operation output deactivated.
Step 3 operation output executed.
Transition condition “d” satisfied?
Step 3 operation output deactivated.
END step executed, operation
completed.
1 For steps with attribute designations, processing occurs in accordance with the attributes.
YES
NO
YES
NO
NO
YES
YES
NO
1
1
1

Mitsubishi Q Series Specifications

General

I/O Points	Up to 4096 points
Communication	Ethernet, RS-232, RS-485
I/O Modules	Digital, Analog, Specialized
Programming Language	Function Block Diagram, Structured Text
Power Supply	24V DC, 100-240V AC
Operating Temperature	0°C to 55°C
Shock Resistance	147 m/s2 acceleration, 3 times in each of X, Y, and Z directions
Program Capacity	Up to 252K steps
