MELSEC-Q
3 SPECIFICATIONS
Device No. Signal Name Description

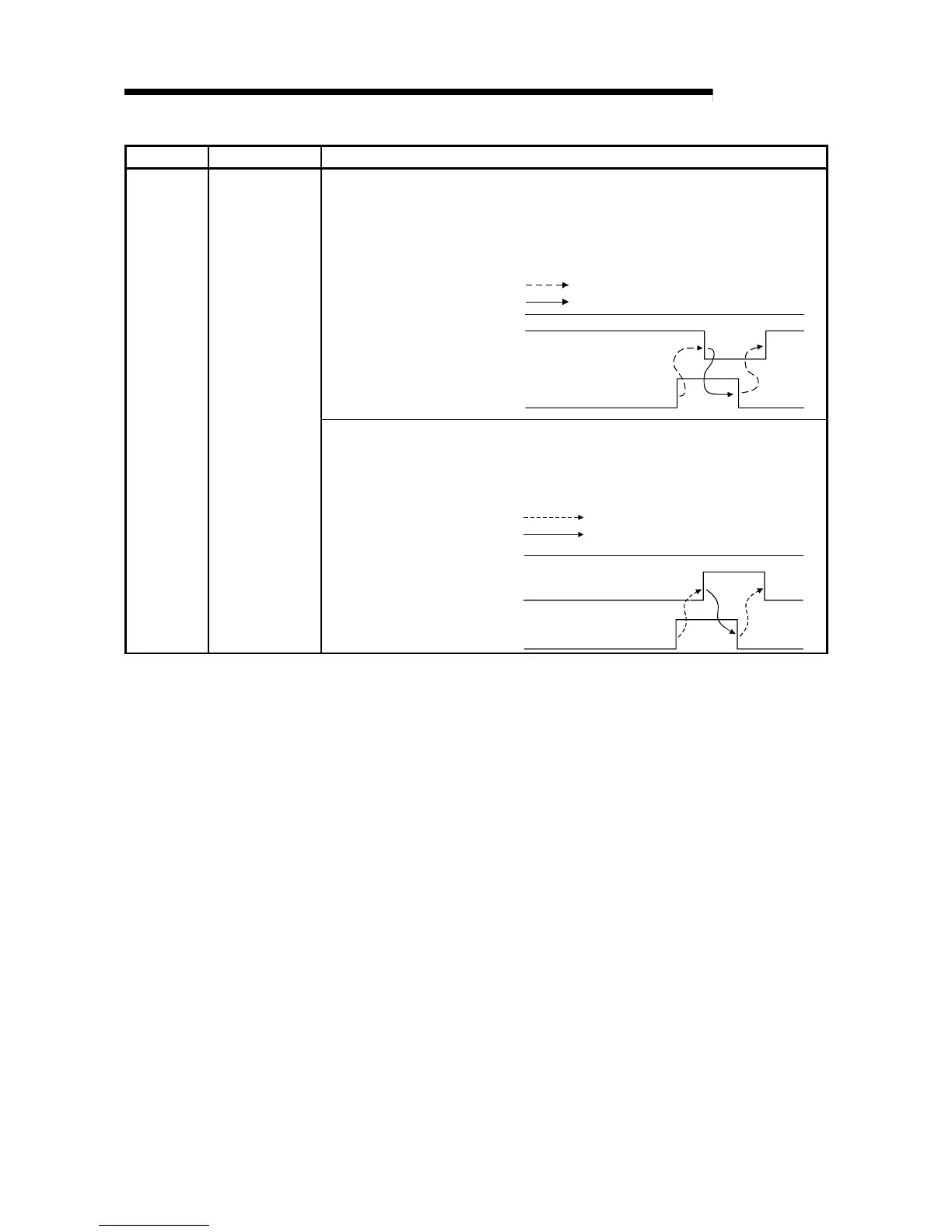

[In offset/gain setting mode]
(1) This is used as an interlock condition for setting the offset/gain request (YA) to
ON/OFF when registering the value after adjustment of the offset/gain settings have
been completed.
(2) See Section 4.6 regarding the offset/gain settings.
OFF
Module READY (X0)
Offset/gain setting mode flag (XA)
User range write request (YA)
Performed by the A/D converter module
Performed by the sequence program
XA
Offset/gain setting
mode flag
[In normal mode]
(1) This signal is used as an interlock condition to turn ON/OFF the User range writing
request (YA) when the user range is restored.
(2) Refer to Chapter 7 for the user range restoration.
ON
Performed by the A/D converter module
Performed by the sequence program
Module READY (X0)
Offset/gain setting mode flag (XA)
User range writing request (YA)
