4 - 13 4 - 13
MELSEC-Q
4 SETUP AND PROCEDURES BEFORE OPERATION

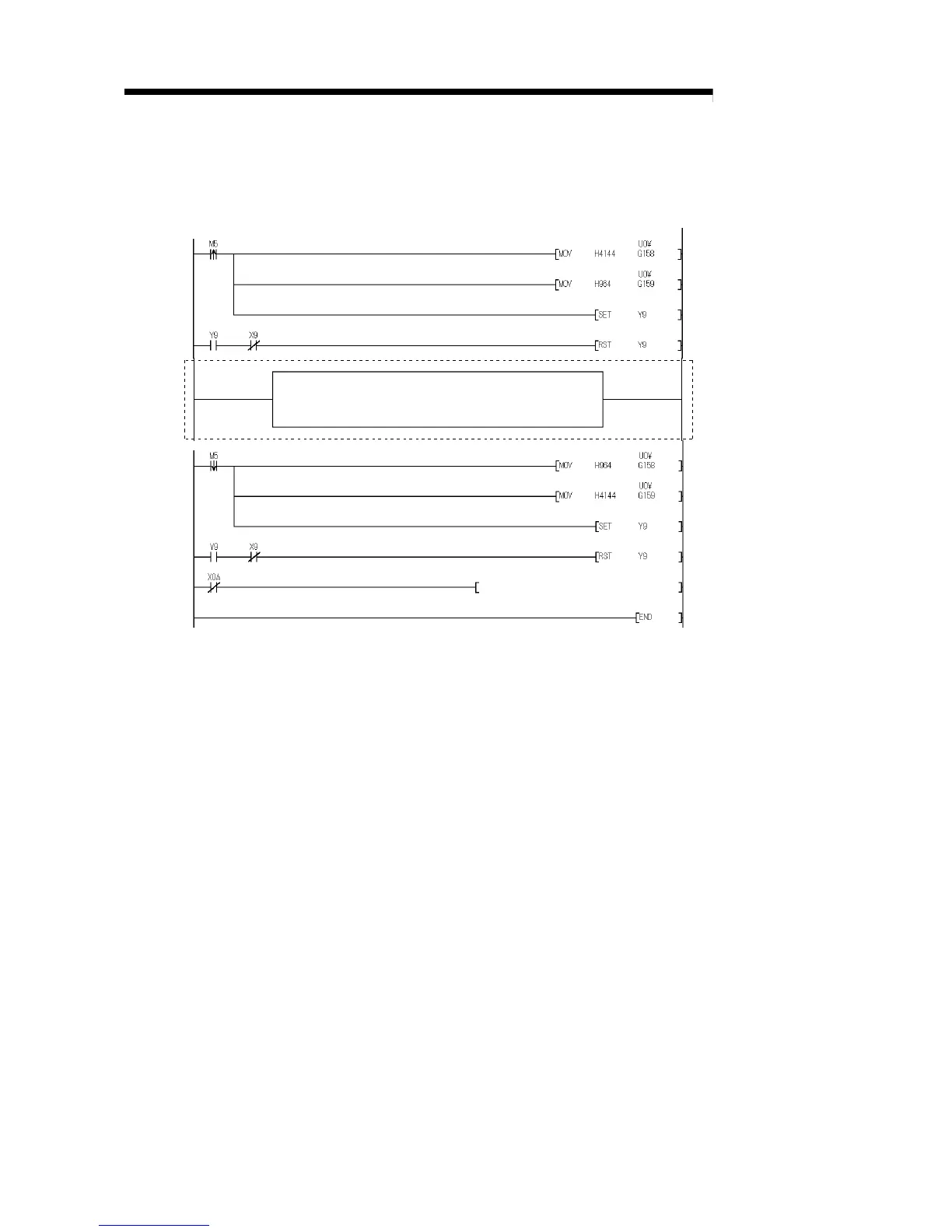

(b) When switching the mode using the setting of the mode switching setting
(buffer memory addresses 158, 159: Un\G158, Un\G159) and operation
condition setting request (Y9)
Switches to offset/gain setting mode
Common program
Switches to normal mode
Processing in normal mode
Sets 4144
H
to buffer memory
address 158.
Sets 964
H
to buffer memory
address 159.
Turns ON operation condition
setting request (Y9).
Turns OFF operation condition
setting request (Y9)
Sets 964
H
to buffer memory
address 158.
Sets 4144
H
to buffer memory
address 159.
Turns ON operation condition
setting request (Y9).
Turns OFF operation condition
setting request (Y9).
(c) When switching the mode by making intelligent function module switch
setting
Only the common program is necessary.
