MELSEC-Q
7 ONLINE MODULE CHANGE
(5)

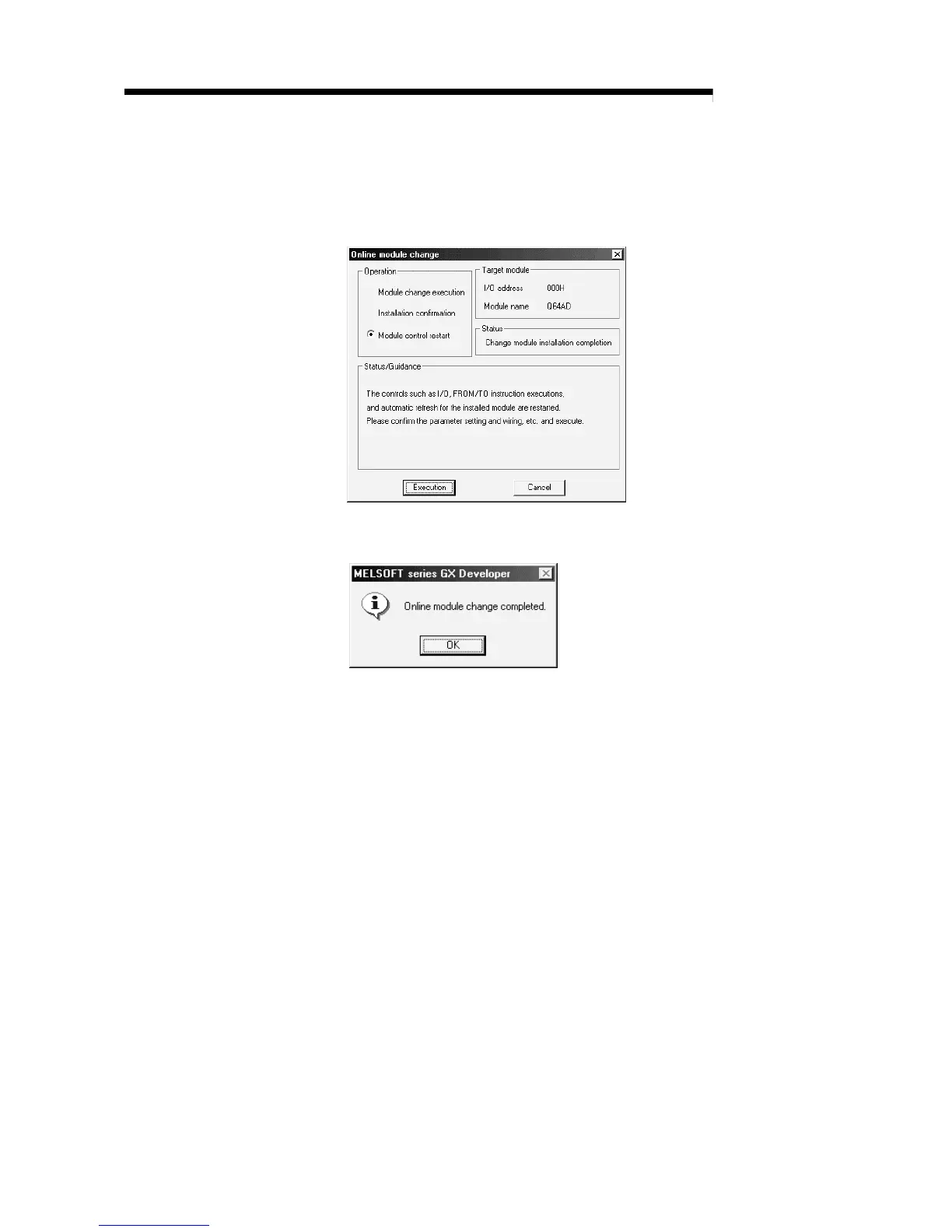

Resumption of control
(a)
After ch
oosi
ng [Dia
gnosis
] - [O
nline m
odule c
hang
e] on G
X Deve
loper
to
redi
splay
the "Onli
ne modul
e change"
screen, click th
e [Executi
on] button to
resum
e contr
ol. T
he FRO
M/TO ins
truct
ion f
or the m
odule
resum
es.
(b)
The "O
nline m
odul
e chan
ge com
plete
d" scree
n appe
ars.
89
